RJ11 Ethernet port connector 1X2 with ear interface 6P6C DGKYD5523E1266IWA1DY4

Min Bestellmenge :	Verhandelbar	Preis :	Verhandlungsfähig
Verpackung Informationen :	Tablett im Karton	Lieferzeit :	7-14 Tage
Zahlungsbedingungen :	L/C, D/A, D/P, T/T, Western Union, MoneyGram	Versorgungsmaterial-Fähigkeit :	60000 Stück pro Tag

Herkunftsort:	Dongguan von China	Markenname:	DGKYD
Zertifizierung:	RoHS/CE/FCC/CE/ISO9001/ISO14001	Modellnummer:	DGKYD5523E1266IWA1DY4

Detailinformationen
Produktname:	Verbindungsstück rj11	Anschlusstyp:	Jack
Anwendung:	PC, Router, USB-Hub-Netzwerk RJ11 usw.	Geschlecht:	Weiblich
Transformator:	RJ11 ohne Transformator	Goldbeschichtung auf Kontaktstiften:	6u
Betriebstemperatur:	-40 ° C ~+85 ° C.	Lagertemperatur:	-40 ° C ~+85 ° C.
Zahl von Stichen:	8p8c
Hervorheben:	RJ11 Ethernet port connector 6P6C , 55 Series RJ11 connector with ear , 1X2 RJ11 port connector

Produkt-Beschreibung

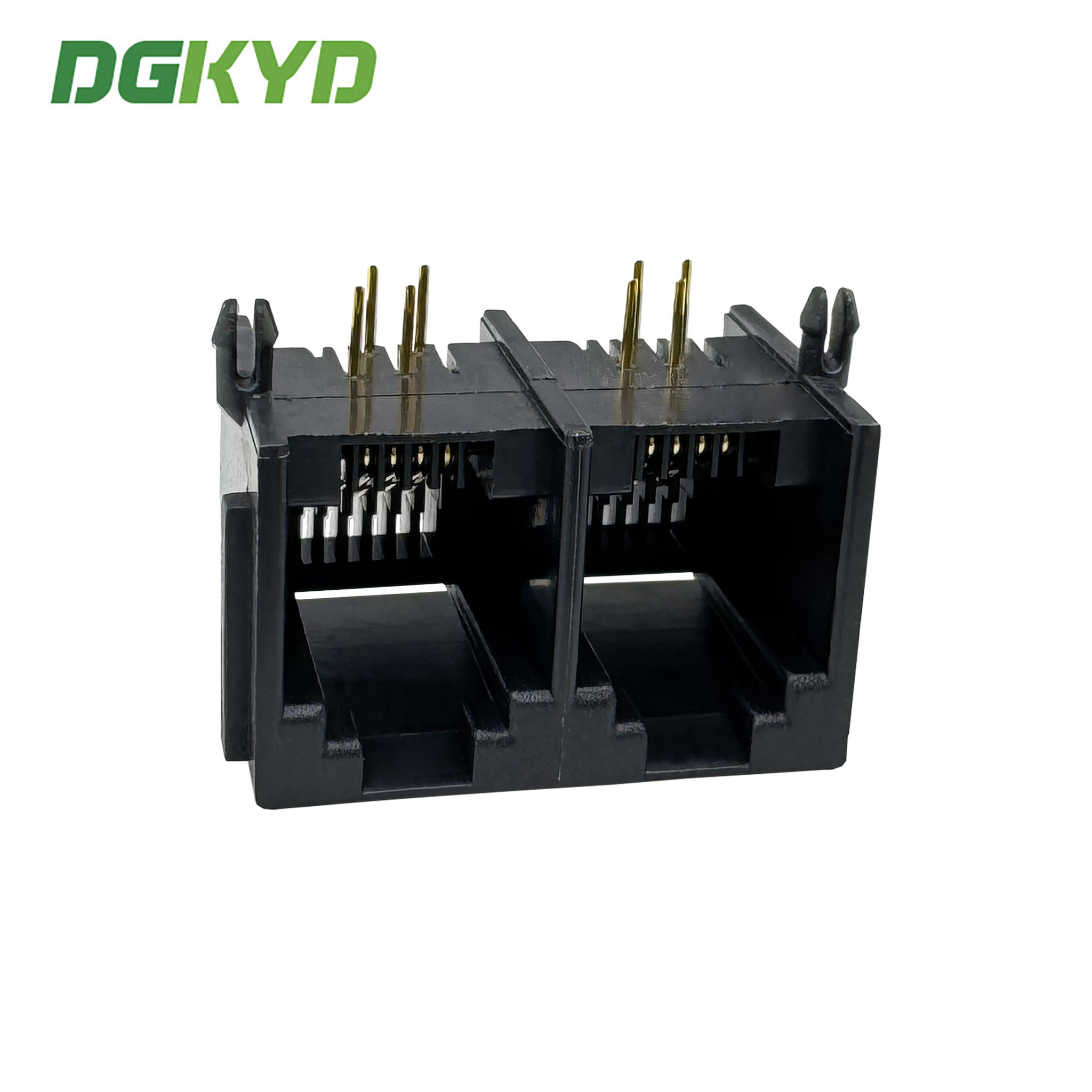

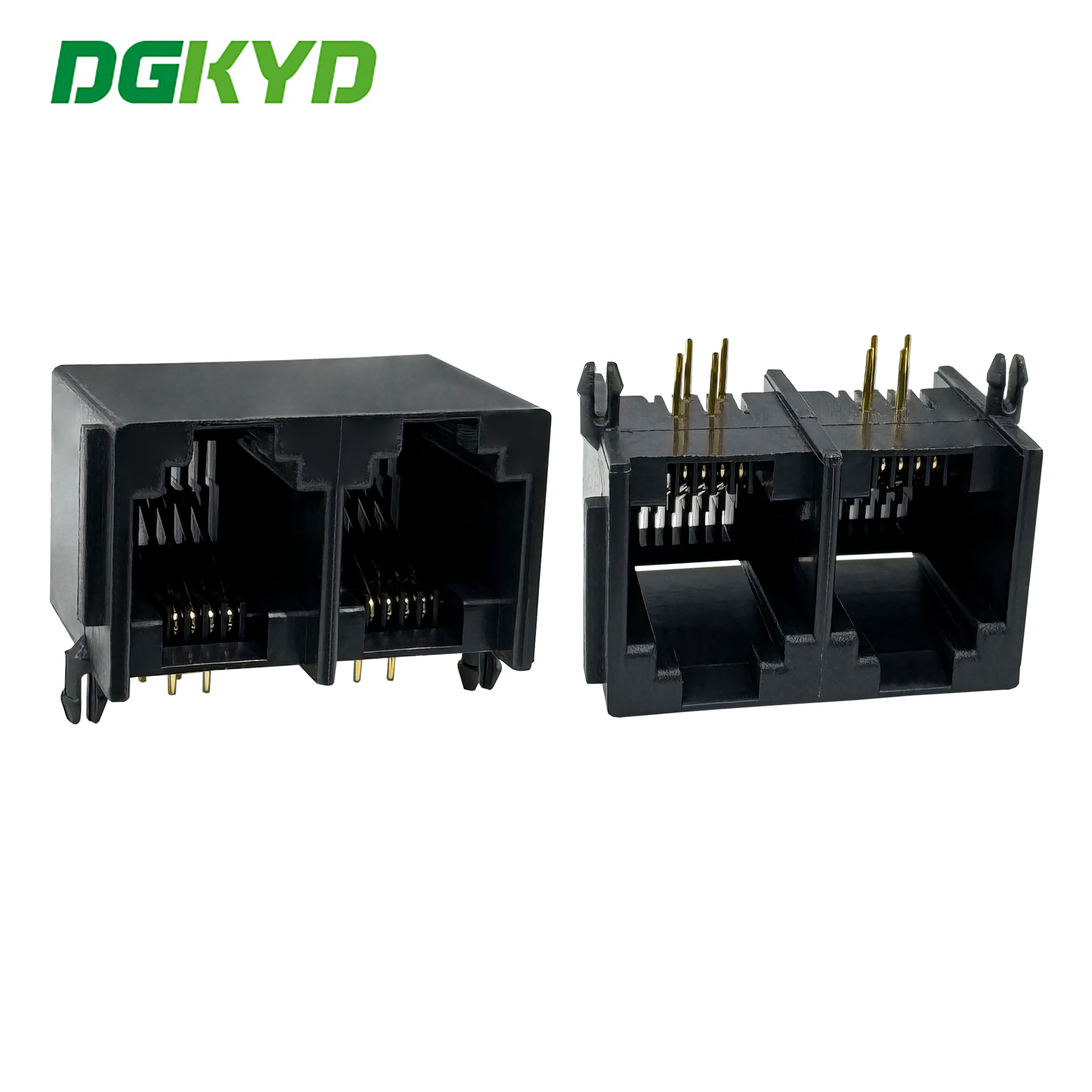

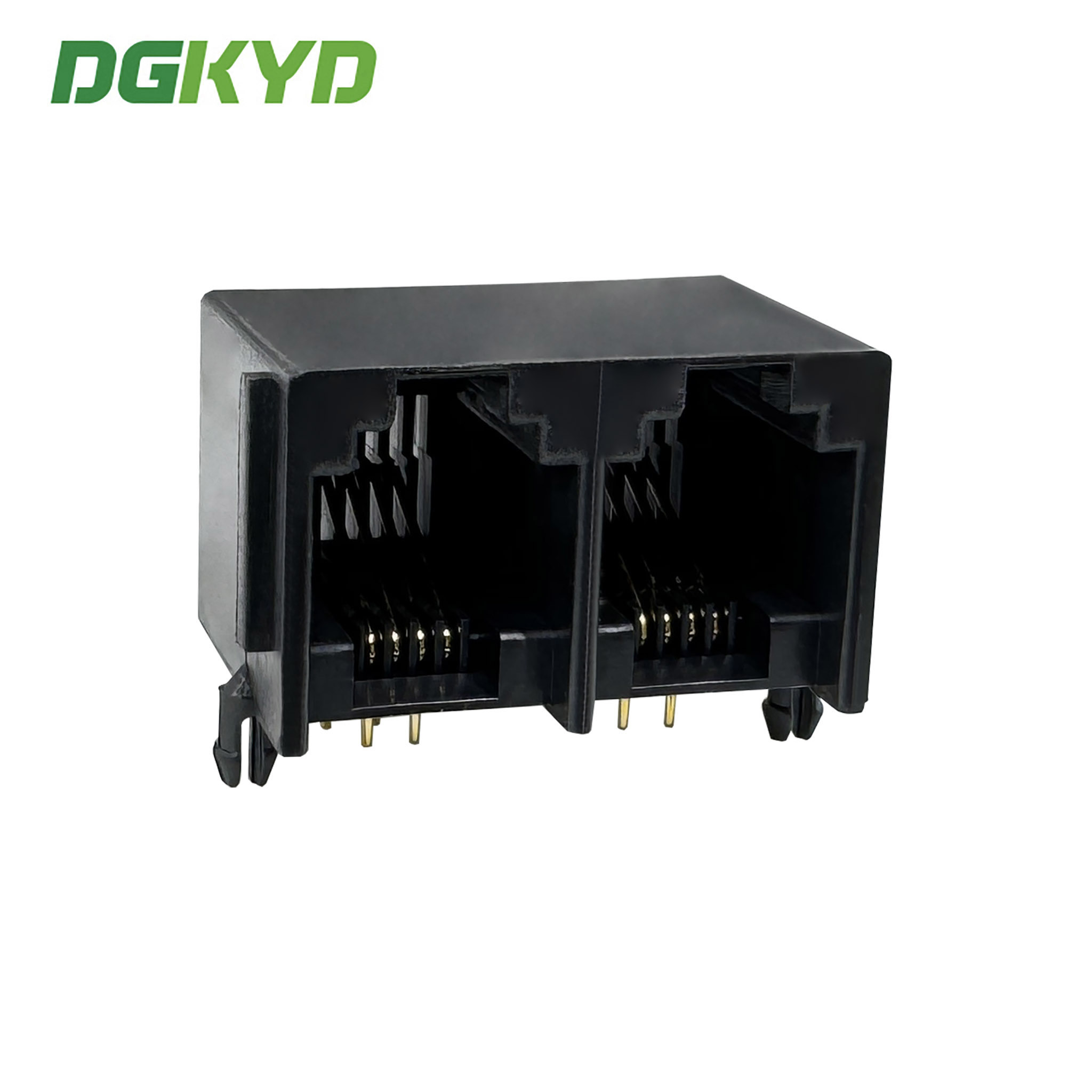

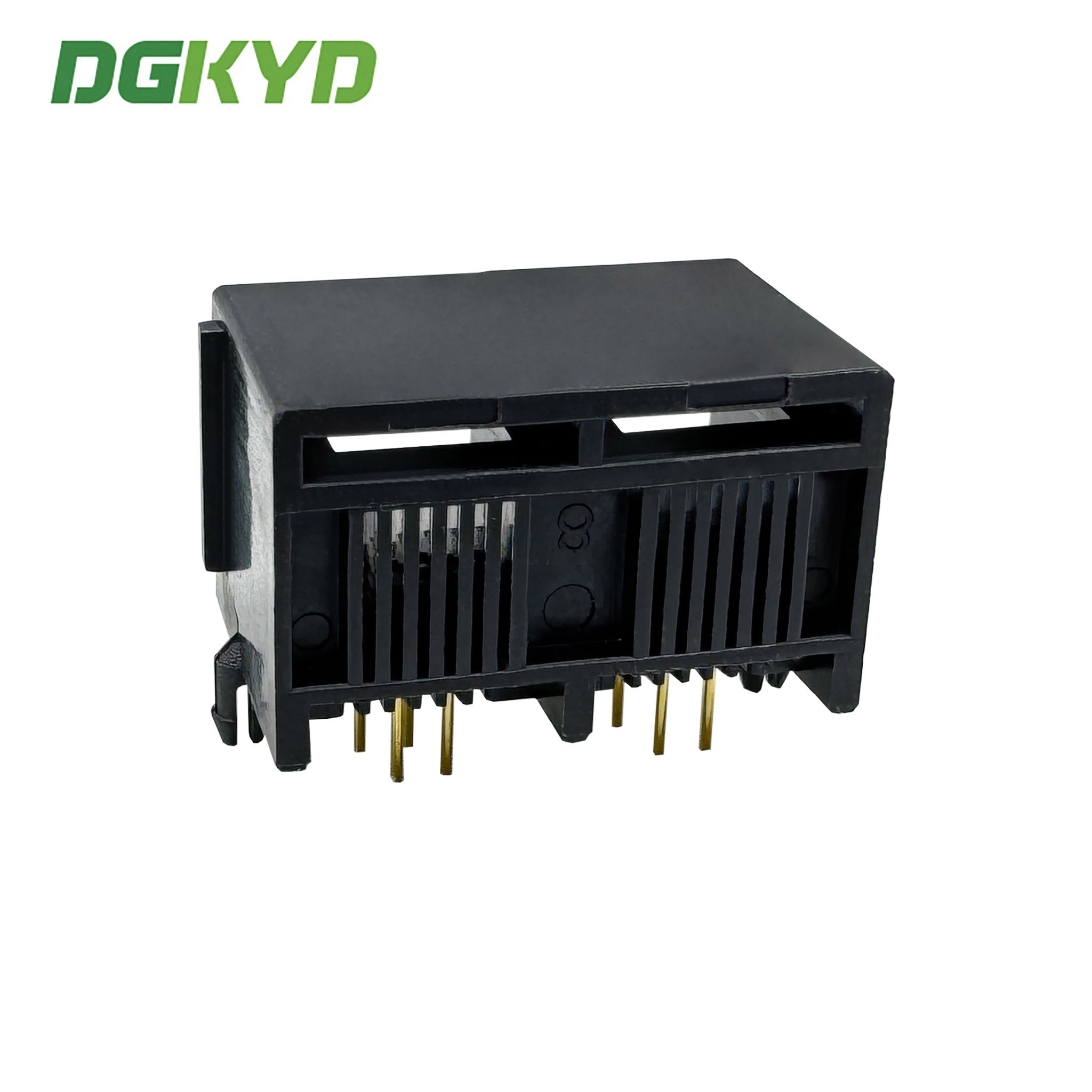

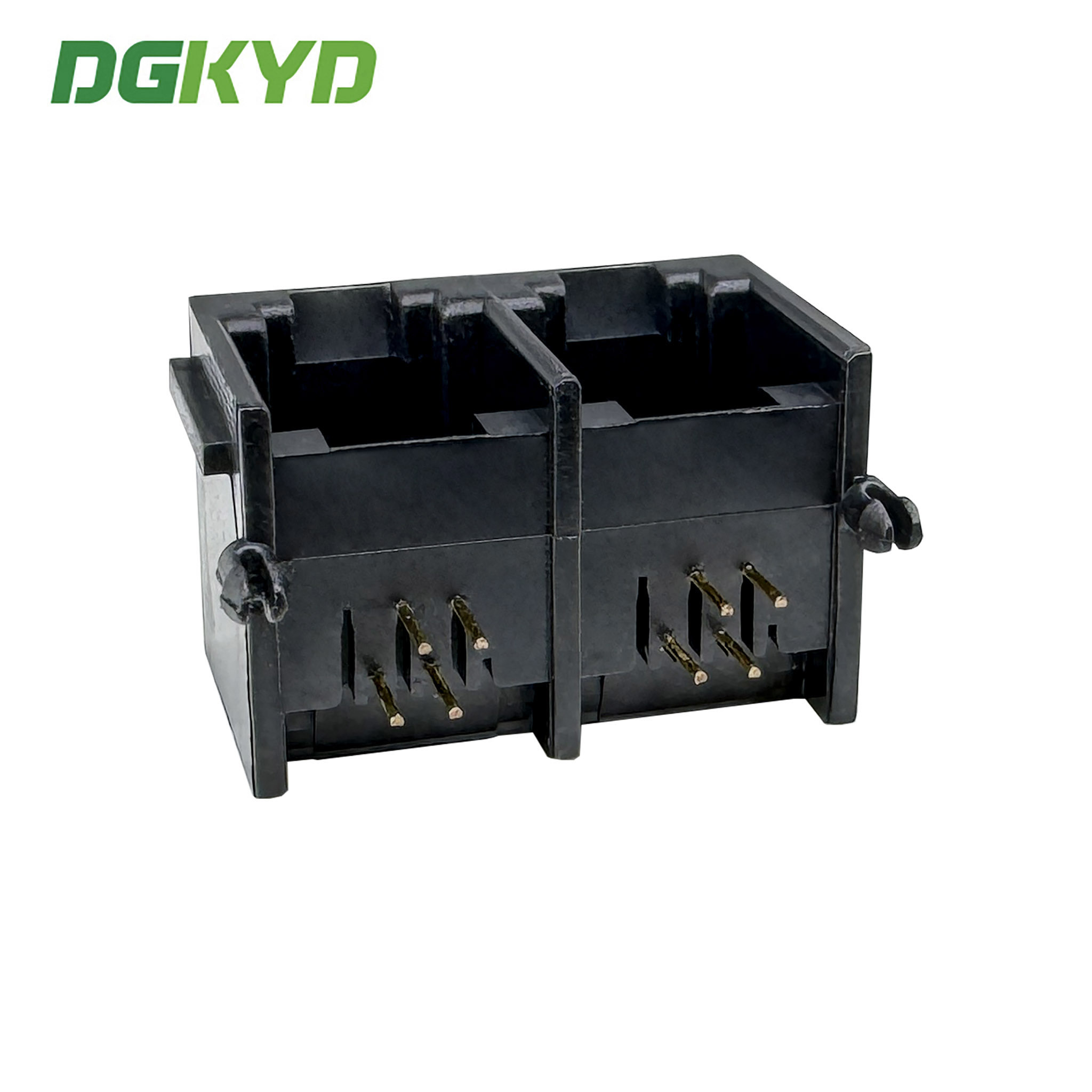

RJ11 Ethernet Port Connector 1X2 with Ear Interface 6P6C DGKYD5523E1266IWA1DY4

Product Specification Document: DGKYD5523E1266IWA1DY4.pdf

Part Number	DGKYD5523E1266IWA1DY4	Brand	DGKYD/OEM/ODM
Place of Origin	Guangdong of China	Certification	RoHS/CE/FCC/CE/ISO9001/ISO14001
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ11	Connector Type	Modular Jack
Latch Style	Standard	Latch	TAB-UP
Filter	Without Filter	LED Option	Without LED
LED Color	No	Panel Stops	With Panel Stops
Shielded	No	Applies To	Printed Circuit Board
Performance Speed	10/100/1000/BASE-T/TX	Suitable for welding type	Reflowsolding(Alternative)
Port Configuration	Double Ports	Number of Positions	6
Jack Configuration	1X2	Terminals per Port	6
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating Material	Gold 6u/15u/30u/50u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	6U Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

Technical Specifications

Interface type: crystal head application: 10 / 100 / 1000BASE-T Ethernet
Type: RJ45 built in magnetics
Working frequency: high frequency characteristic: filtering, anti-interference
Working temperature: 40℃ - 85℃
Storage temperature: -40℃ - 85℃
Lead free soldering: wave soldering height up to 265℃
RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply

Business Information

Business mode: Manufacturer
Delivery time: on time delivery, around two weeks
Specs for choices: LED indicator light(green, yellow, red, orange, blue, bi-color LED)
Shield with EMI fingers or not
coil ratio of magnetic core
magnetics circuit diversification optional
contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)
plastic housing material (PBT,PA46,PA9T, LCP)

The electrical properties of the products meet the industry standards, the appearance and mechanical properties meet the appearance dimensions, the mechanical manufacturing industry standards, and the environmental protection standards. Your satisfaction is the purpose of our service!

Performance Parameters

Applied to Ethernet, coil ratio: 1CT: 1CT
Meet IEEE 802.3 & ANSI X 3.263 standard
Open circuit inductance (OCL): 350uH (MIN) @ 100kHz, 0.1VRMS with 8Ma DC Bias
Wave soldering process of 265℃ Max meeting the requirements of EU ROHS standard
Withstand voltage: 2250VDC 1mA max, 60s
Impedance: 100 ohms
RJ45 interface meets FCC 68.5 standard
DC resistance: 1.5Ω

Frequently Asked Questions

Q: Are you trading company or manufacture?

A: We are manufacture. Welcome to our factory.

Q: What about your lead time?

A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.

Q: Can you provide samples? Are they free?

A: Yes. Usually we can provide 2-3 samples of standard products free for testing.

Q: Can I put my own logo on it?

A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
