RJ45 vertical network socket 8P8C with shielded industrial network port DGKYD52T1188AB1A1D20Y1

Kontakt

RJ45 vertical network socket 8P8C with shielded industrial network port DGKYD52T1188AB1A1D20Y1

Min Bestellmenge :	1 Stück	Preis :	Please contact us to get the latest price.
Verpackung Informationen :	Tablett im Karton	Lieferzeit :	10 Tage
Zahlungsbedingungen :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Versorgungsmaterial-Fähigkeit :	100k PCs/Tag

Herkunftsort:	Dongguan von China	Markenname:	DGKYD
Zertifizierung:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Modellnummer:	DGKYD52T1188AB1A1D20Y1

Detailinformationen
Kategorie:	Modulare Steckfassungen	Komponententyp:	PCB -Buchse
Typ:	RJ45	Magnetisch:	Keiner
Leistungskategorie:	Katze 3 5	Insetions-Art:	Seiteneintritt
Berg-Art:	TAUCHEN	OEM/ODM:	Ja
Anzahl der Positionen/Kontakte:	8P8c (RJ45, Ethernet)	Goldbeschichtung auf Kontaktstiften:	FU
Lagertemperatur:	-40 ° C ~+85 ° C.	Betriebstemperatur:	-40 ° C ~+85 ° C.
Hervorheben:	RJ45 shielded industrial network socket , vertical 8P8C network port , 52 series industrial RJ45 socket

Produkt-Beschreibung

RJ45 Vertical Network Socket 8P8C with Shielded Industrial Network Port DGKYD52T1188AB1A1D20Y1

Product Overview

RJ45 vertical network socket 8P8C with shielded industrial network port DGKYD52T1188AB1A1D20Y1. This industrial-grade connector is designed for reliable performance in demanding environments.

Technical Specifications

Part Number	DGKYD52T1188AB1A1D20Y1	Brand	DGKYD/OEM/ODM
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	TAB-UP
Filter	Without Filter	LED Option	With LED
LED Color	Yellow/Green	Panel Stops	With Panel Stops
Shielded	With metal shield	Applies To	Printed Circuit Board
Port Configuration	Single Ports	Number of Positions	8
Jack Configuration	1X1	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating	Gold Fu	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	PBT Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

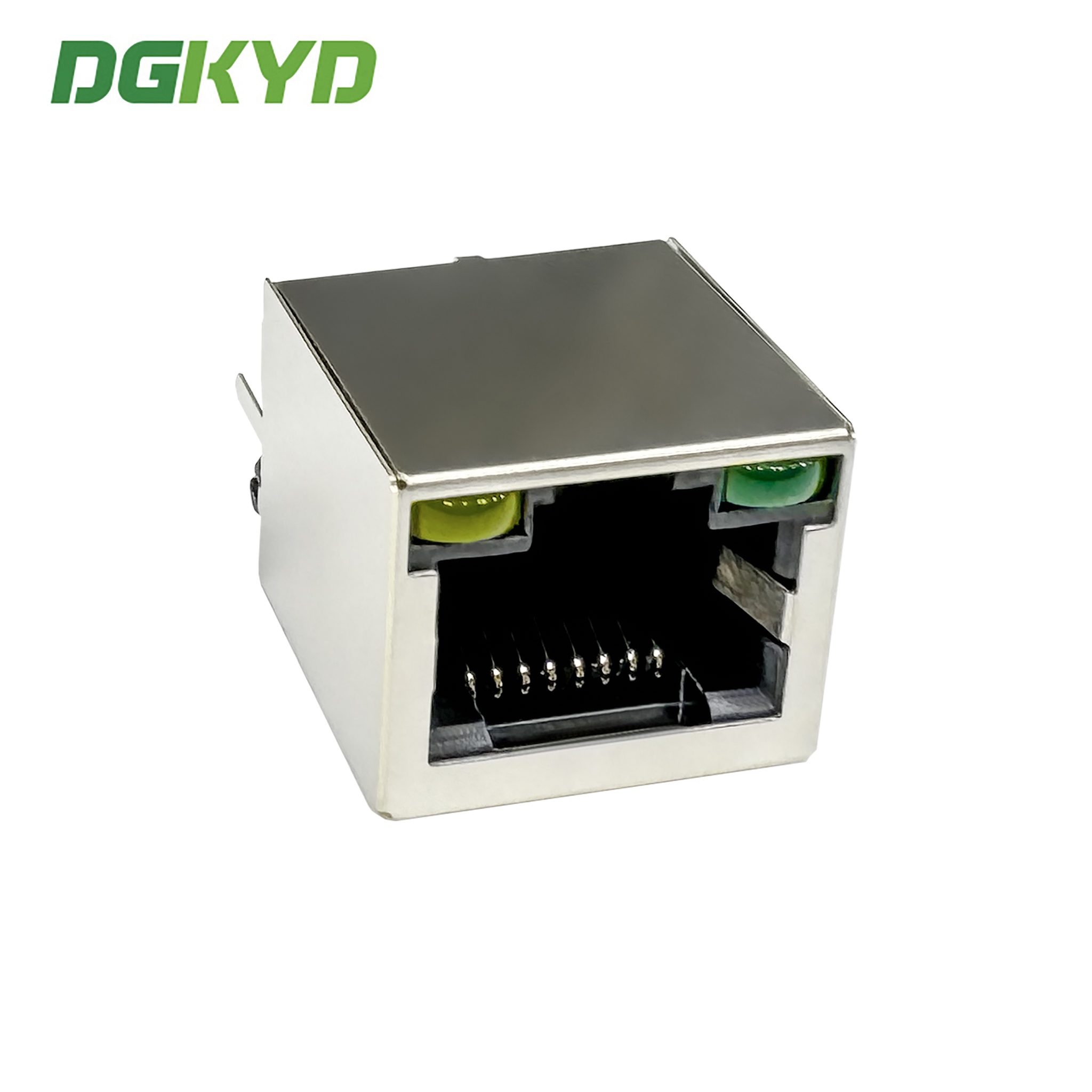

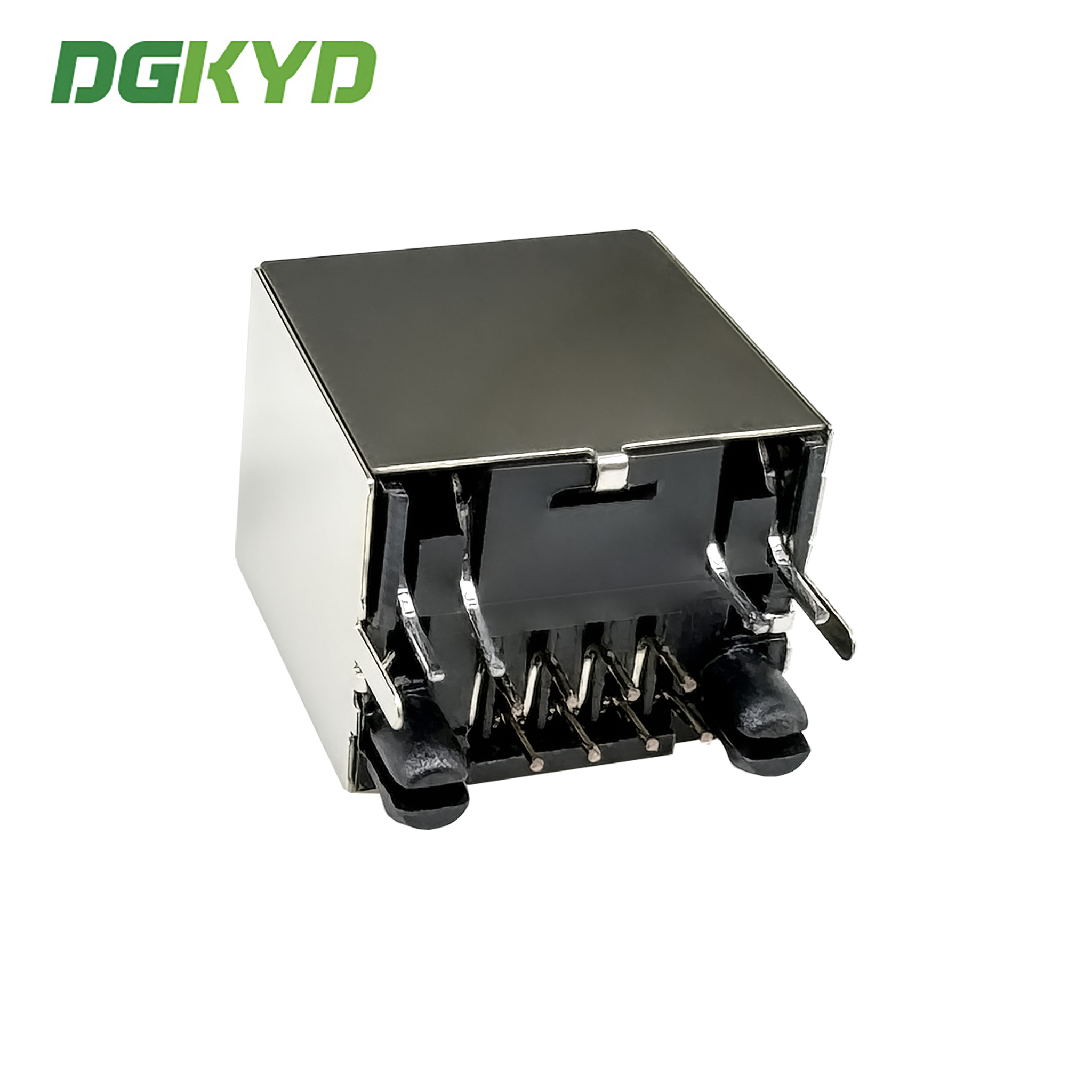

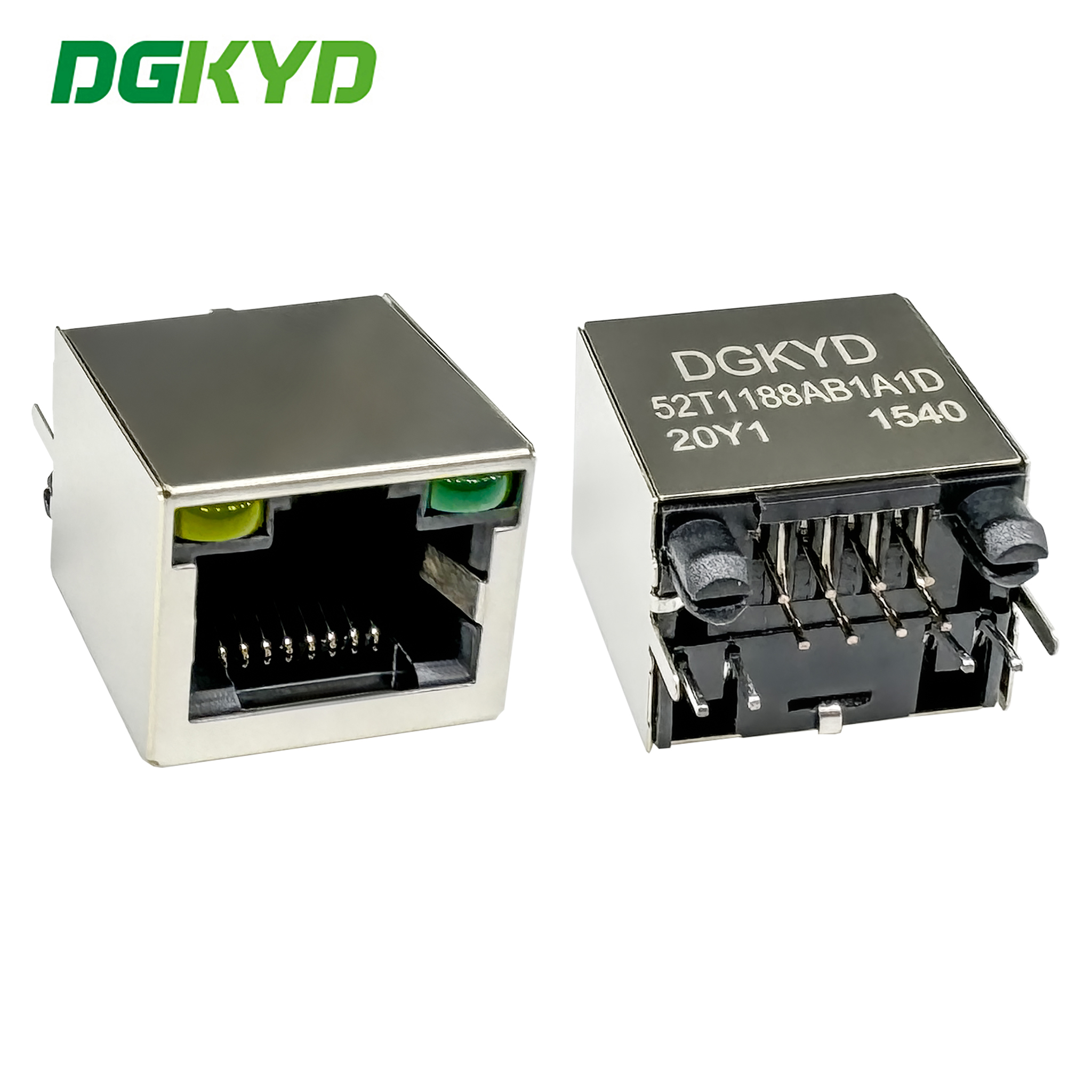

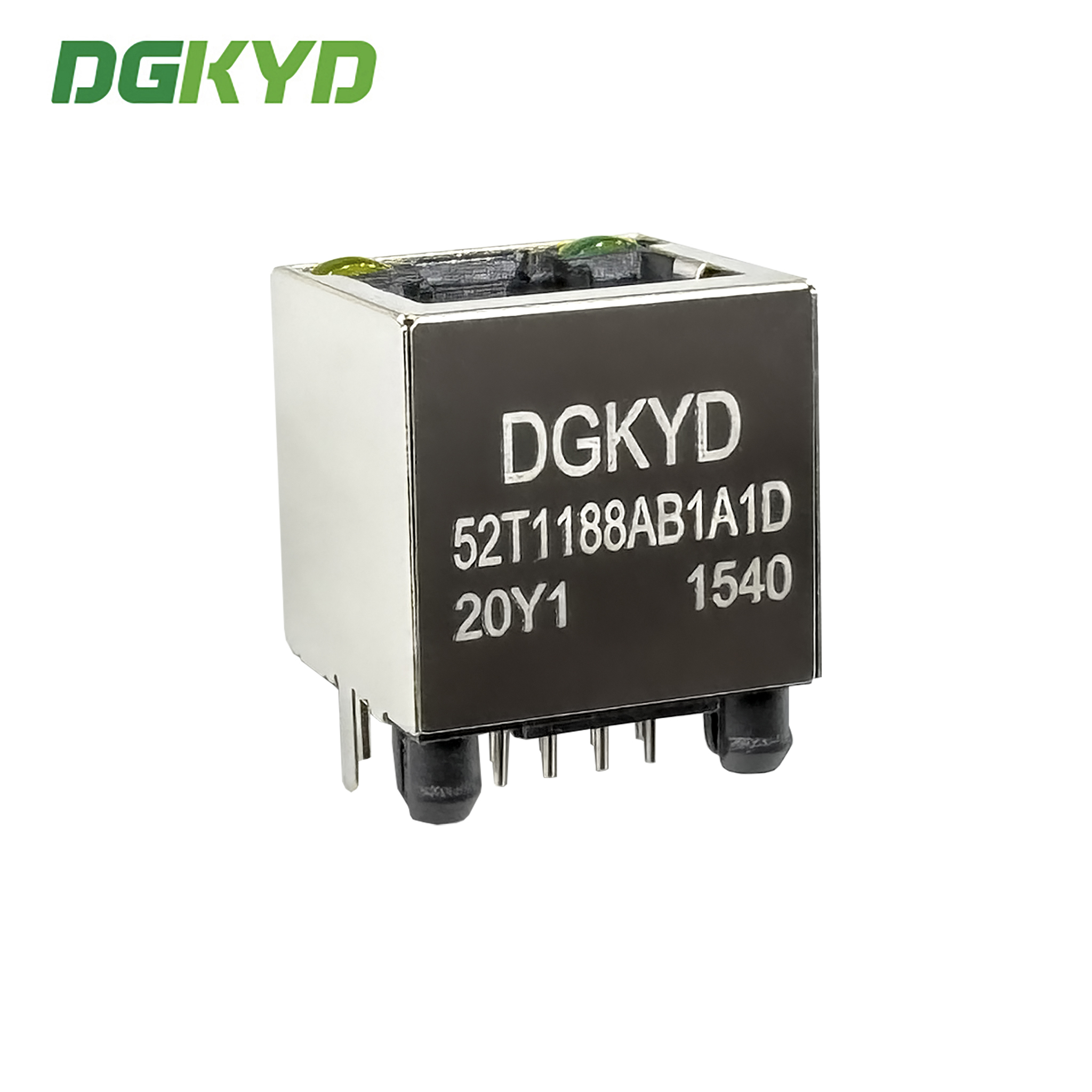

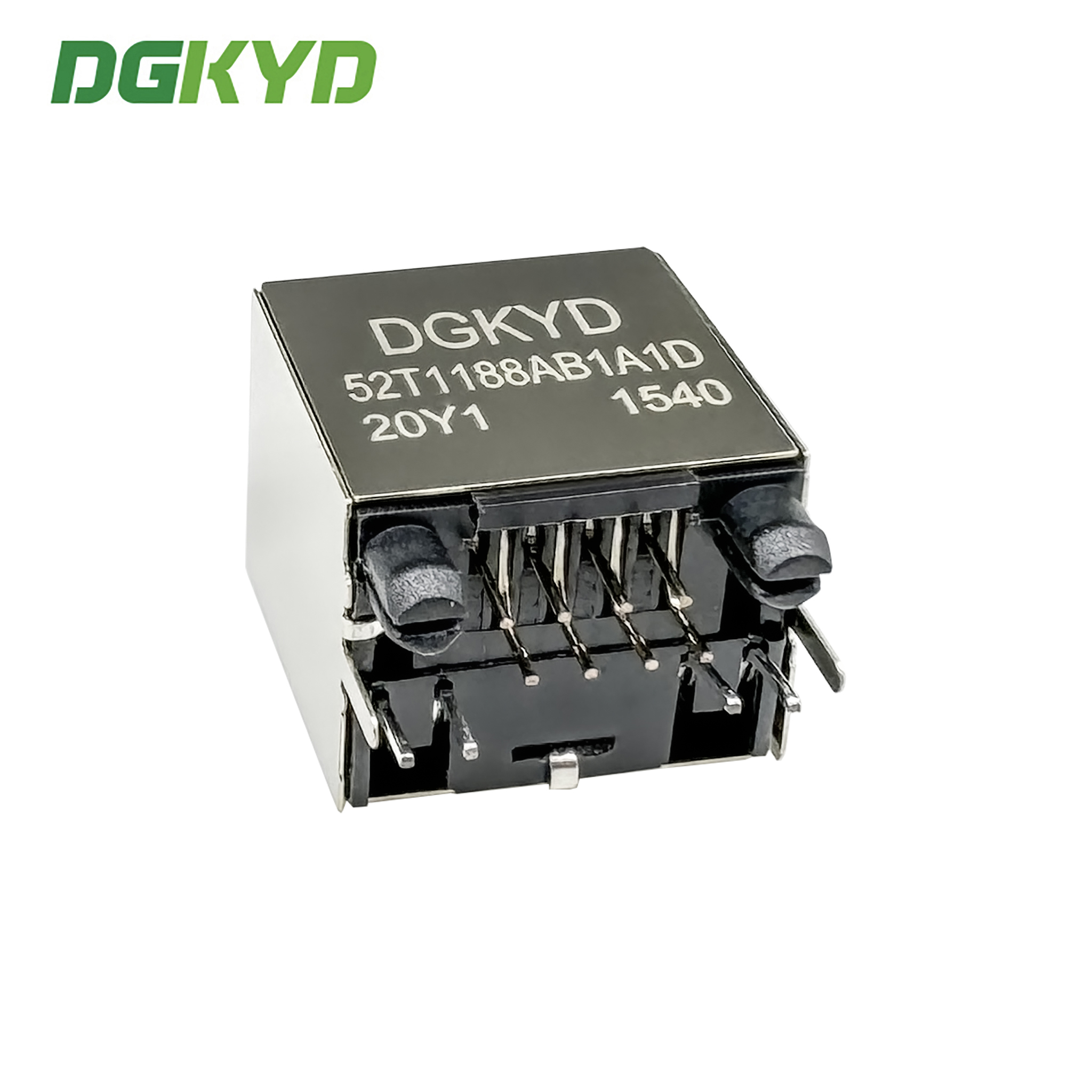

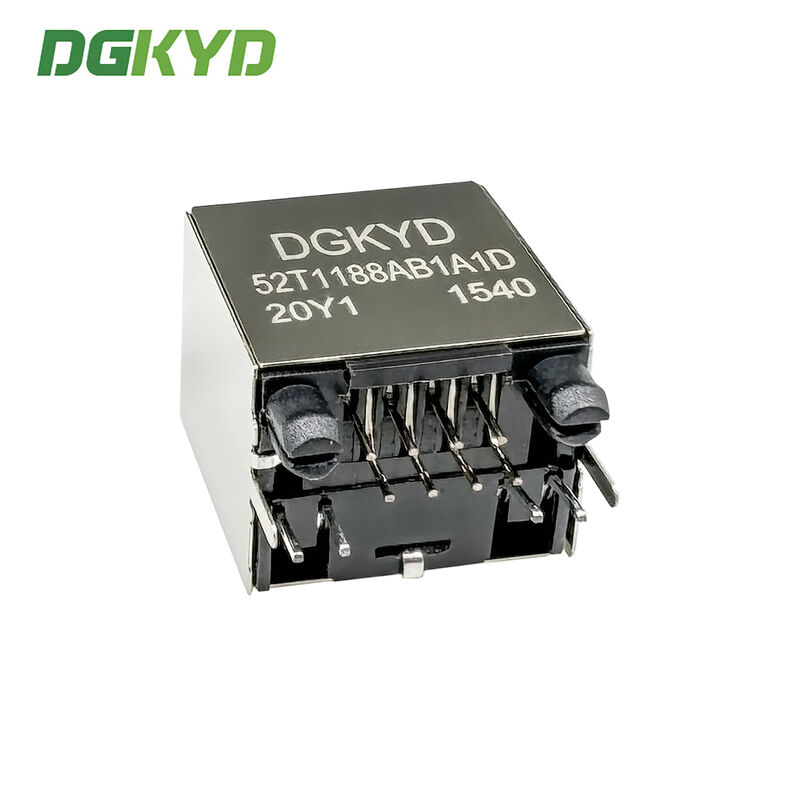

Product Image

Company Information

Product Features & Strengths

Interface type: crystal head application for 10/100/1000BASE-T Ethernet
Type: RJ45 built-in magnetics
Working frequency: high frequency characteristic with filtering and anti-interference capabilities
Working temperature: -40℃ to 85℃
Storage temperature: -40℃ to 85℃
Lead-free soldering compatible with wave soldering height up to 265℃

RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply.

Business mode: Manufacturer
Delivery time: On-time delivery, typically around two weeks
Specification options: LED indicator lights available in green, yellow, red, orange, blue, and bi-color LED
Shield with EMI fingers or standard options
Customizable coil ratio of magnetic core
Magnetics circuit diversification optional
Contact gold plating options: FU, 3U, 6U, 15u, 30U, 50U
Plastic housing material options: PBT, PA46, PA9T, LCP

The electrical properties of our products meet industry standards, with appearance and mechanical properties conforming to dimensional specifications and environmental protection standards. Your satisfaction is the purpose of our service!

Frequently Asked Questions

Q: Are you a trading company or manufacturer?

A: We are a manufacturer. Welcome to visit our factory.

Q: What about your lead time?

A: For products in stock, goods will be delivered within 5-7 working days after payment. For customized products and out-of-stock items, delivery time is confirmed according to your order quantity.

Q: Can you provide samples? Are they free?

A: Yes. Usually we can provide 2-3 samples of standard products free for testing.

Q: Can I put my own logo on it?

A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
