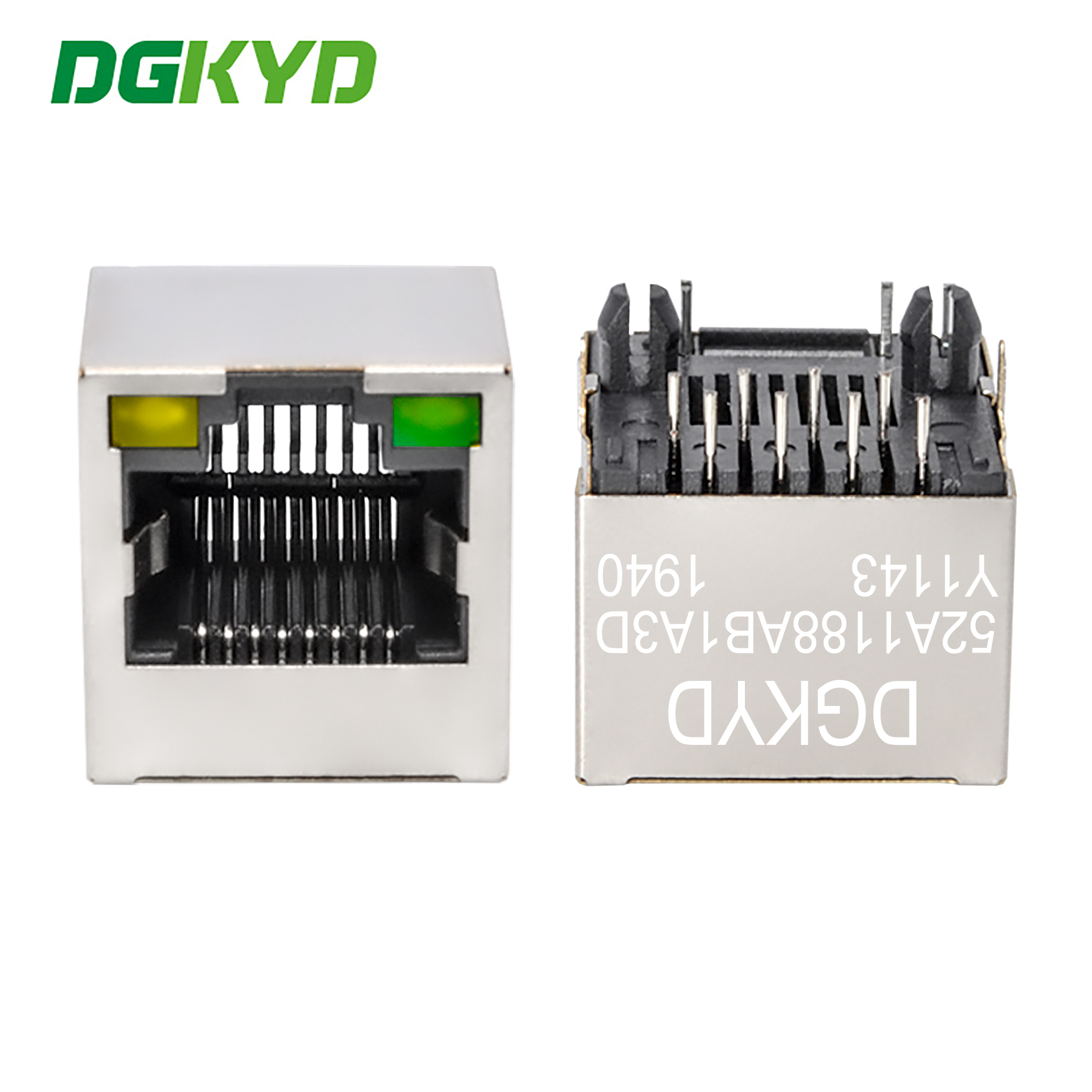

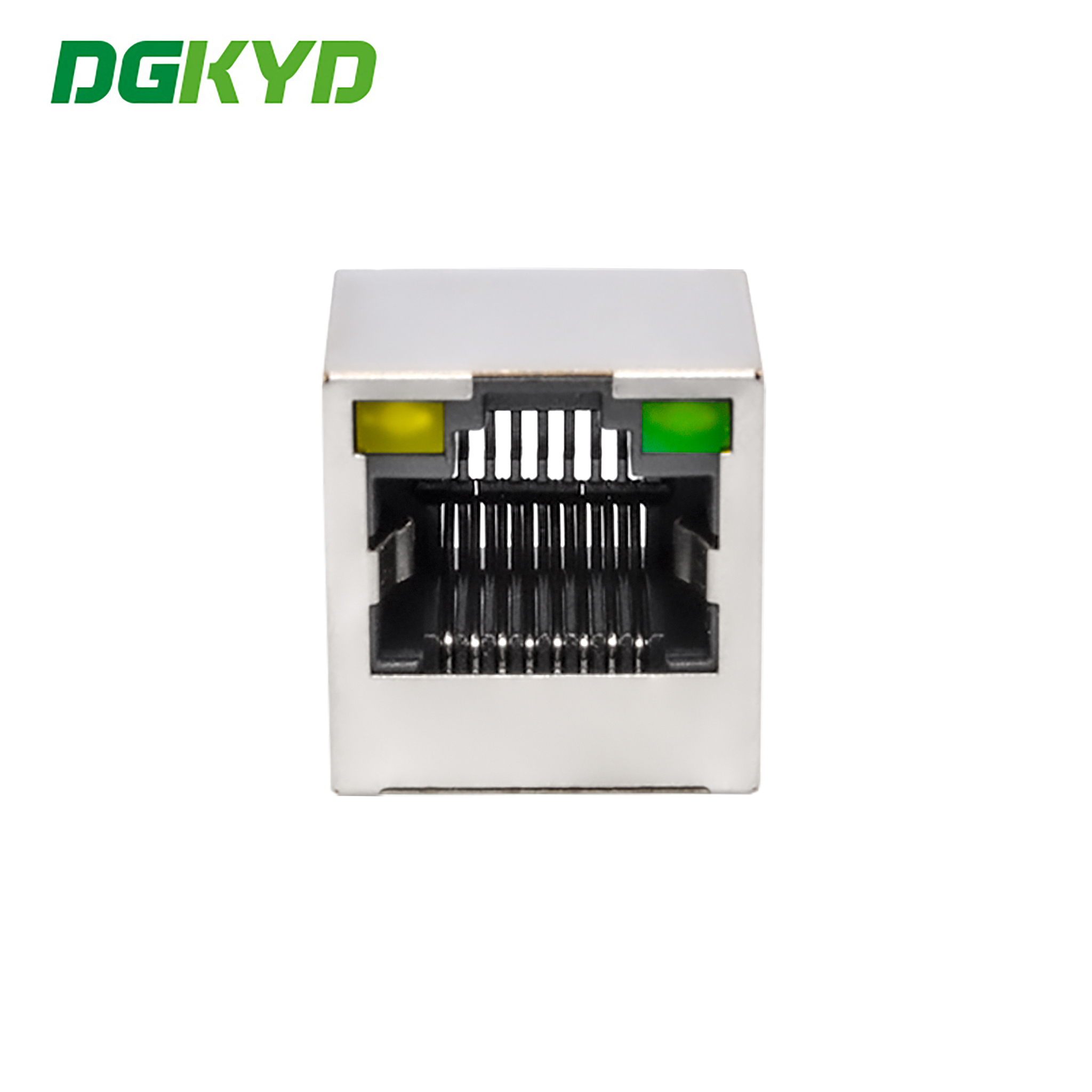

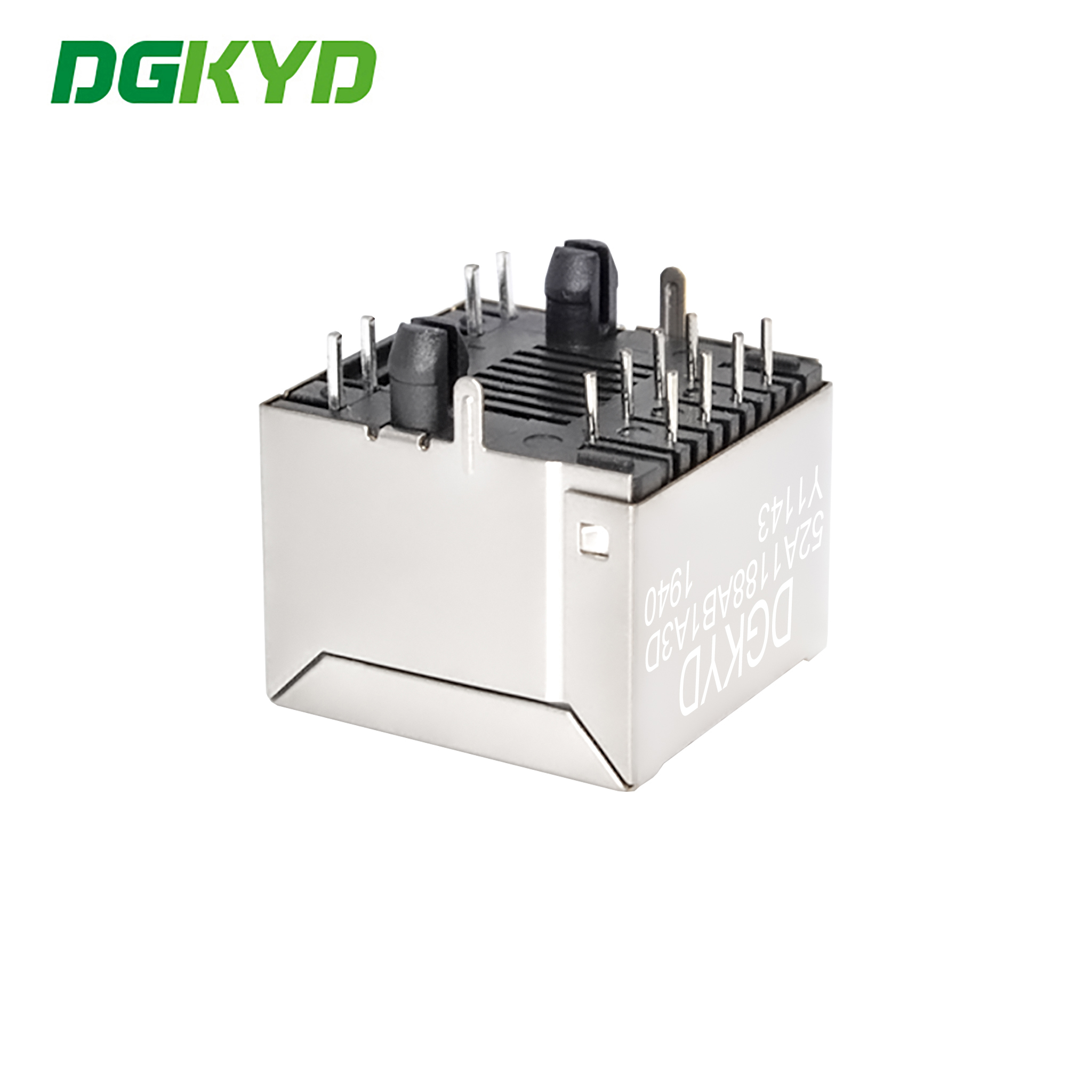

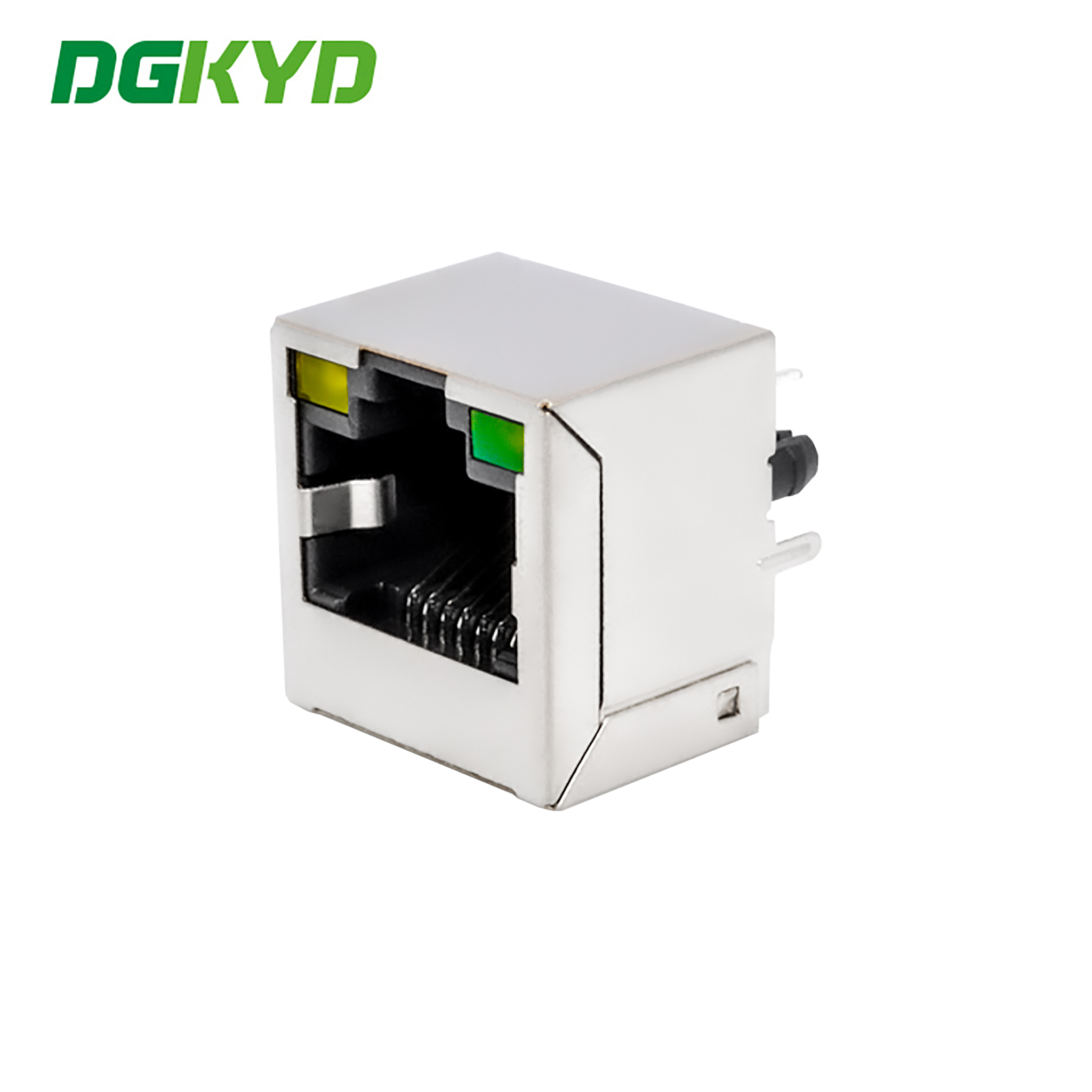

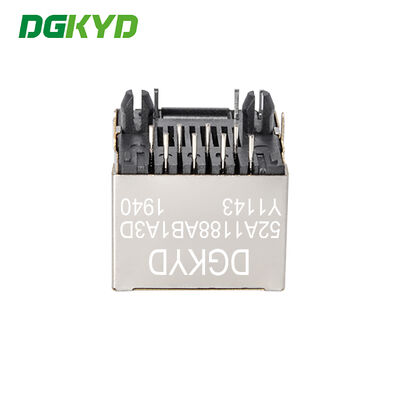

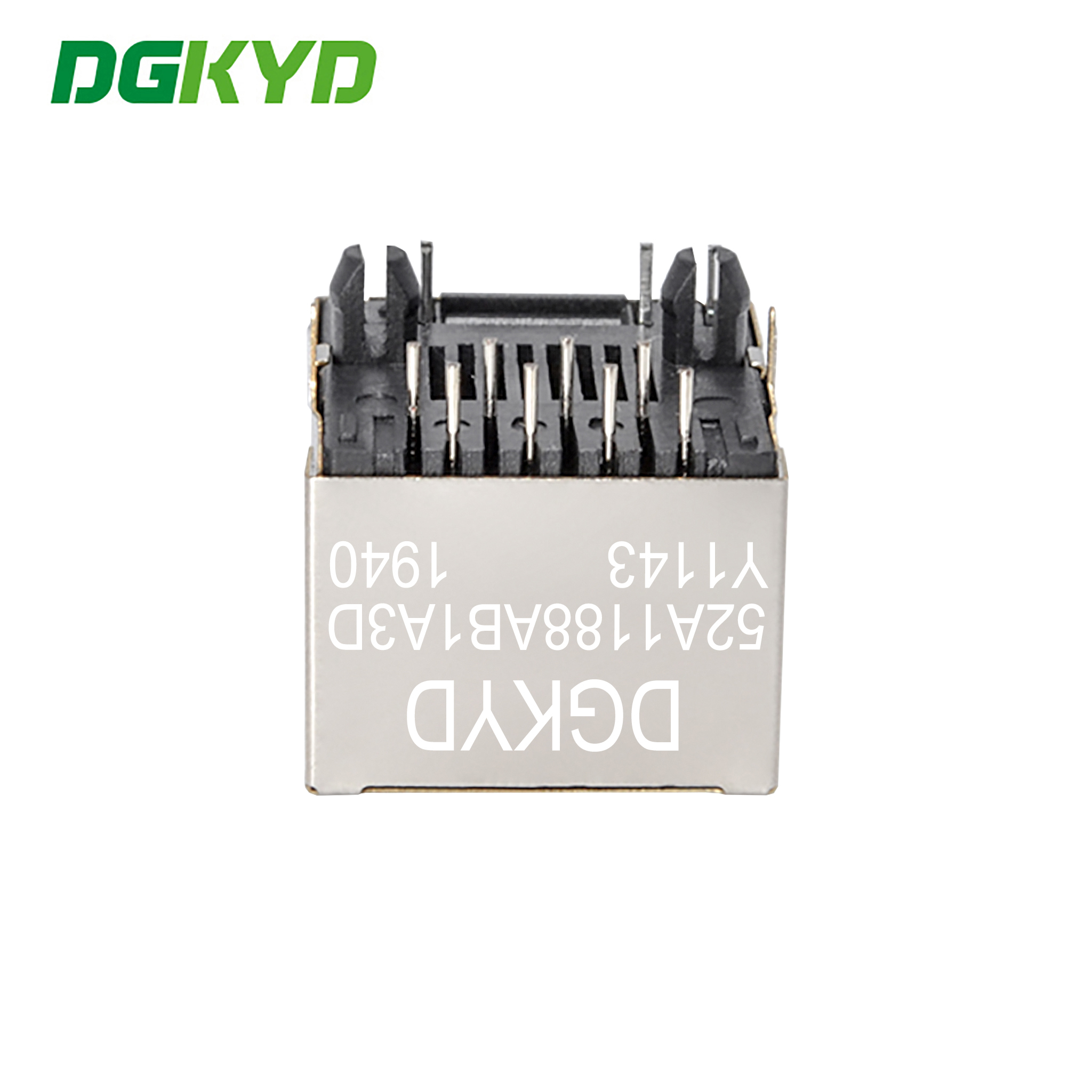

RJ45 8P8C Shielded Strip Light Connector Vertical Mesh Socket Single Port Connector DGKYD52A1188AB1A3DY1143

Kontakt

RJ45 8P8C Shielded Strip Light Connector Vertical Mesh Socket Single Port Connector DGKYD52A1188AB1A3DY1143

Min Bestellmenge :	1 Stück	Preis :	Please contact us to get the latest price.
Verpackung Informationen :	Tablett im Karton	Lieferzeit :	10 Tage
Zahlungsbedingungen :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Versorgungsmaterial-Fähigkeit :	100k PCs/Tag

Herkunftsort:	Dongguan von China	Markenname:	DGKYD
Zertifizierung:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Modellnummer:	DGKYD52A1188AB1A3DY1143

Detailinformationen
Anwendung:	Leiterplatte	Geschlecht:	Weiblich
Gehäusematerial:	Schwarzes PA46	Kontakt-Steckbereich-Überzug:	““/15u“/30u/50u“ des GOLDES 6u für optionales
Verriegeln:	Hoch	LED-Option:	Gelb/grün
Anzahl der Ports:	Single Port	Anzahl der Kontakte:	8Pin
PWB-Berg-Winkel:	Seiteneintritt
Hervorheben:	RJ45 shielded vertical connector , 8P8C mesh socket connector , 52 series single port connector

Produkt-Beschreibung

RJ45 8P8C Shielded Strip Light Connector Vertical Mesh Socket Single Port Connector DGKYD52A1188AB1A3DY1143

RJ45 8P8C shielded strip light connector vertical mesh socket single port connector DGKYD52A1188AB1A6DY1143

Product Parameters

Part Number	DGKYD52A1188AB1A3DY1143	Brand	DGKYD/OEM/ODM
Place of Origin	Guangdong of China	Certification	CE /UL/FCC/Reach/RoHS
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	up
Filter	Without Filter	LED Option	With LED
LED Color	Yellow/Green	Panel Stops	With Panel Stops
Shielded	Yes	Applies To	Printed Circuit Board
Performance Speed	.	Grounding Options	Panel Ground and PCB Ground
Port Configuration	Single	Number of Positions	8
Jack Configuration	1 x 1	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating Material	Gold G/Fu	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	PA46 Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

Company Information

Product Features

Interface type: crystal head application: 10/100/1000BASE-T Ethernet
Type: RJ45 built in magnetics
Working frequency: high frequency characteristic: filtering, anti-interference
Working temperature: -40℃ to 85℃
Storage temperature: -40℃ to 85℃
Lead free soldering: wave soldering height up to 265℃

RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply

Business mode: Manufacturer
Delivery time: on time delivery, around two weeks
Specs for choices: LED indicator light (green, yellow, red, orange, blue, bi-color LED)
Shield with EMI fingers or not
Coil ratio of magnetic core
Magnetics circuit diversification optional
Contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)
Plastic housing material (PBT, PA46, PA9T, LCP)

The electrical properties of the products meet the industry standards, the appearance and mechanical properties meet the appearance dimensions, the mechanical manufacturing industry standards, and the environmental protection standards. Your satisfaction is the purpose of our service!

Frequently Asked Questions

Q: Are you trading company or manufacture?

A: We are manufacture. Welcome to our factory.

Q: What about your lead time?

A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.

Q: Can you provide samples? Are they free?

A: Yes. Usually we can provide 2-3 samples of standard products free for testing.

Q: Can I put my own logo on it?

A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
