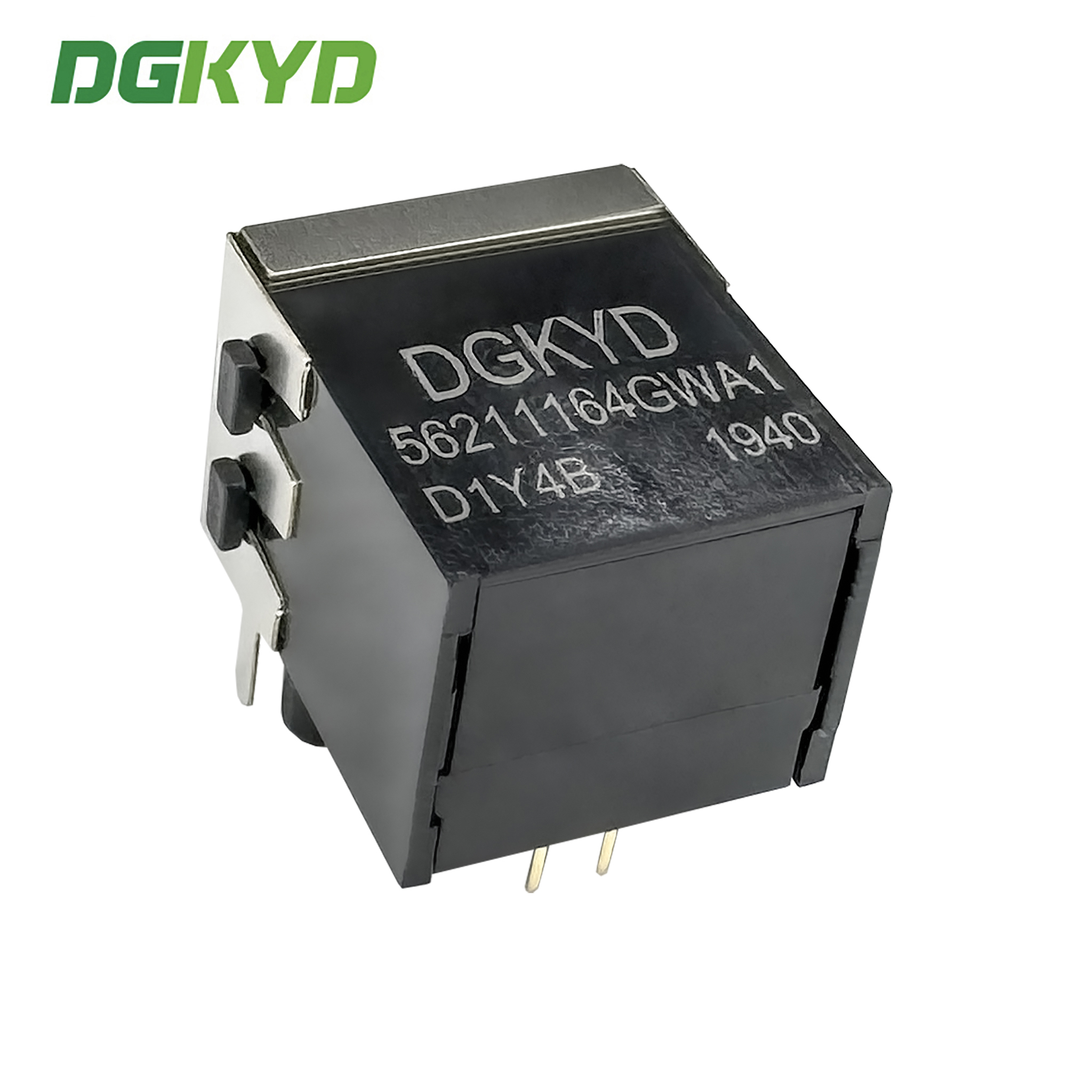

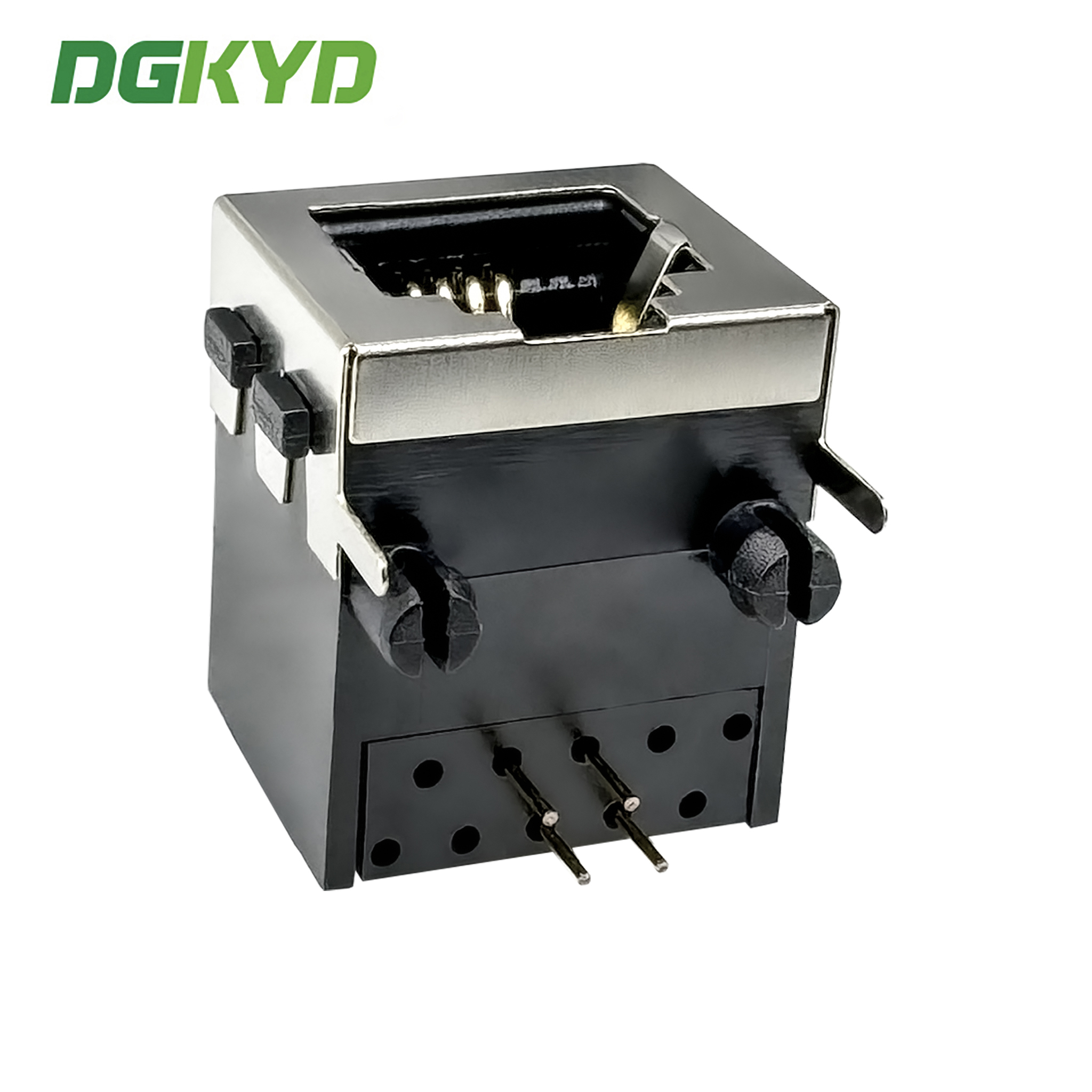

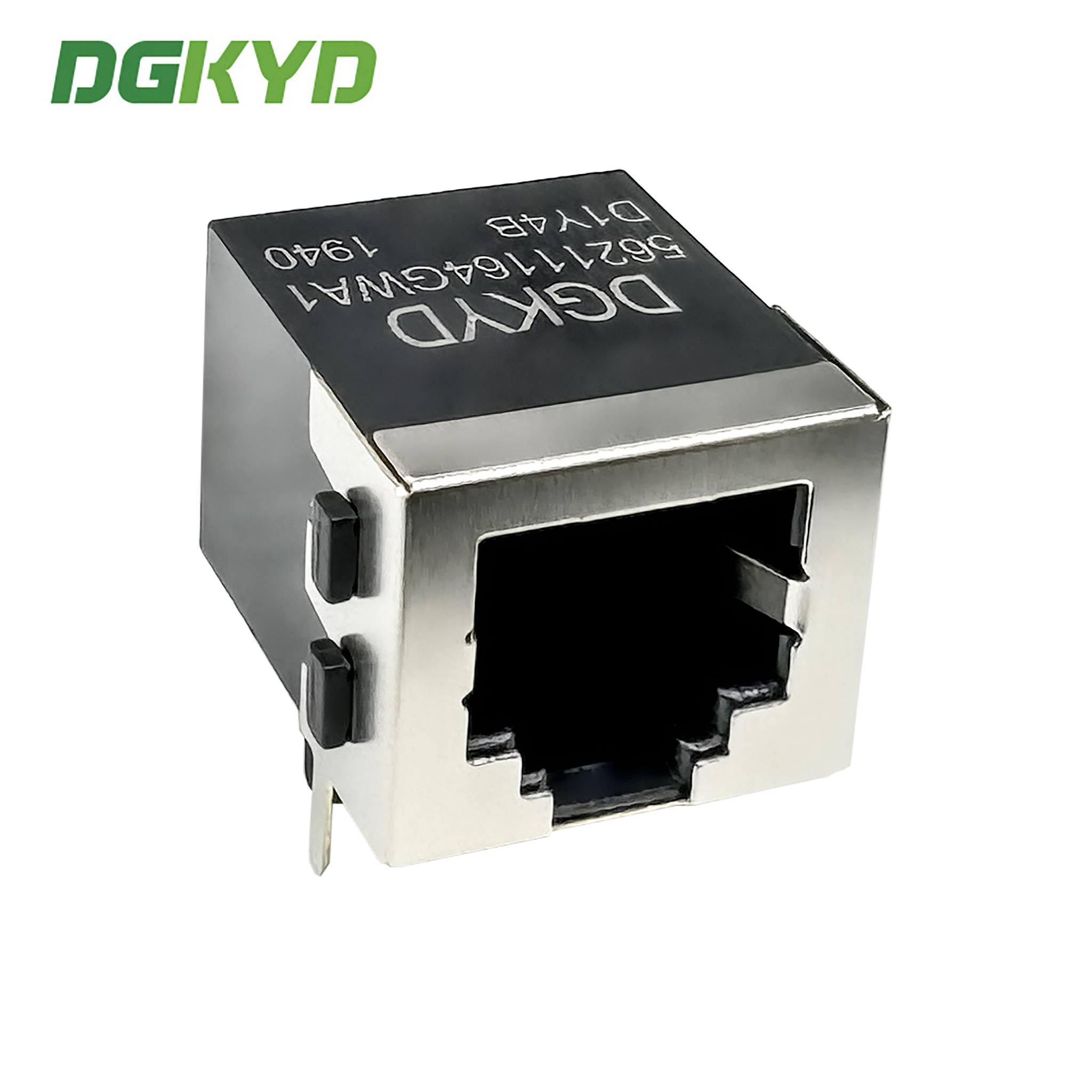

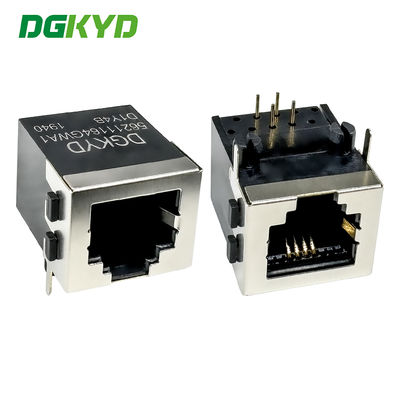

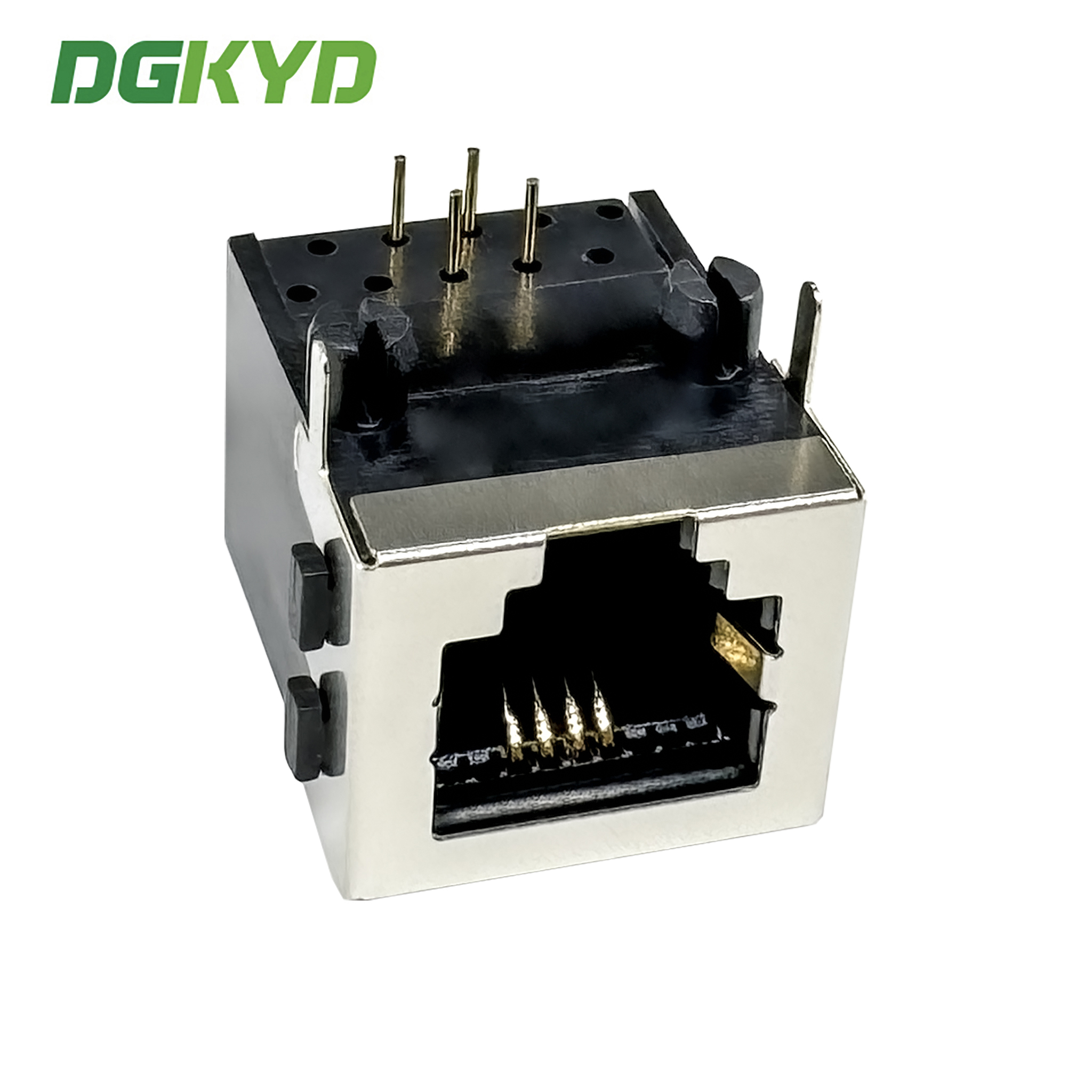

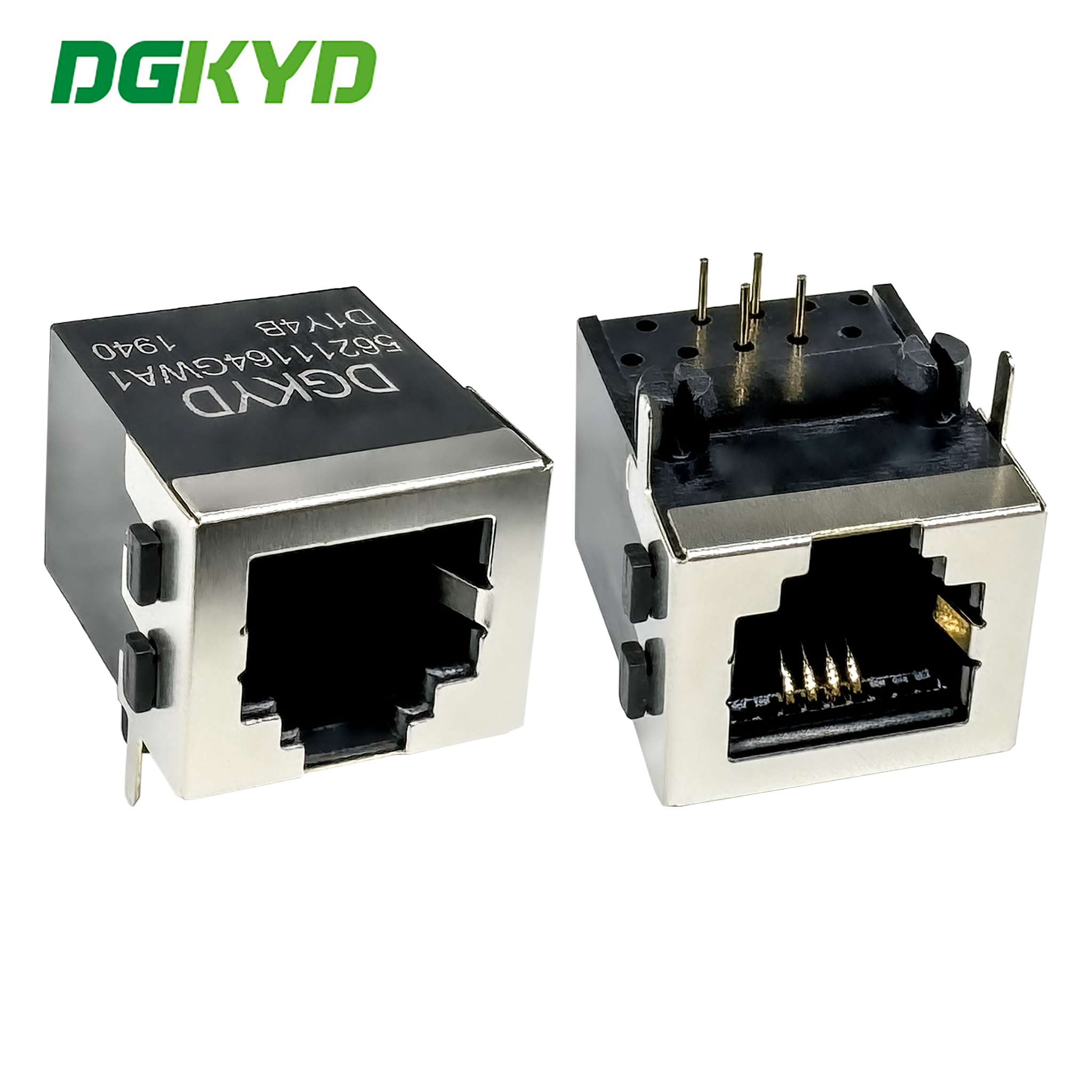

RJ11 half package network port female socket without light strip shielding interface round needle gold-plated 6U DGKYD56211164GWA1D1Y4B

Min Bestellmenge :	1 Stück	Preis :	Please contact us to get the latest price.
Verpackung Informationen :	Tablett im Karton	Lieferzeit :	10 Tage
Zahlungsbedingungen :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Versorgungsmaterial-Fähigkeit :	100k PCs/Tag

Herkunftsort:	Dongguan von China	Markenname:	DGKYD
Zertifizierung:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Modellnummer:	DGKYD56211164GWA1D1Y4B

Detailinformationen
Geschwindigkeit:	CAT 3/5/6	Hafen:	Single Port
Schild:	Ja	Transformator:	Ohne Transformator
Reittyp:	PCB -Typ	Verriegeln:	Registerkarte
Betriebstemperatur:	-40 ° C ~+85 ° C.	Beendigung:	TAUCHEN
Modularer Jack & Plug -Schnittstellentyp:	RJ11 ohne Transformator	Kategorie:	Telefonanschlüsse
Farbe:	Schwarz
Hervorheben:	RJ11 female socket without light strip , 56 Series network port gold-plated , RJ11 shielded interface round needle

Produkt-Beschreibung

RJ11 Half Package Network Port Female Socket

RJ45 half package network port female socket without light strip shielding interface round needle gold-plated 6U DGKYD56211164GWA1D1Y4B

Product Specification Document

DGKYD56211164GWA1D1Y4B.pdf

Our Strengths

Interface type: crystal head application: 10 / 100 / 1000BASE-T Ethernet
Type: RJ45 built in magnetics
Working frequency: high frequency characteristic: filtering, anti-interference
Working temperature: -40℃ to 85℃
Storage temperature: -40℃ to 85℃
Lead free soldering: wave soldering height up to 265℃

Parameters

Part Number	DGKYD56211164GWA1D1Y4B	Brand	DGKYD/OEM/ODM
Place of Origin	Guangdong of China	Certification	RoHS/CE/FCC/CE/ISO9001/ISO14001
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ11	Connector Type	Modular Jack
Latch Style	Standard	Latch	TAB-DOWN
Filter	Without Filter	LED Option	Without LED
LED Color	No	Panel Stops	With Panel Stops
Shielded	Yes	Applies To	Printed Circuit Board
Performance Speed	10/100/1000 BASE-T/TX	Suitable for welding type	Reflowsolding(Alternative)
Port Configuration	Single Ports	Number of Positions	4
Jack Configuration	1X1	Terminals per Port	6
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating Material	Gold 6u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	PBT Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

Product Features

RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply
Business mode: Manufacturer
Delivery time: on time delivery, around two weeks
Specs for choices: LED indicator light (green, yellow, red, orange, blue, bi-color LED)
Shield with EMI fingers or not
Coil ratio of magnetic core
Magnetics circuit diversification optional
Contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)
Plastic housing material (PBT,PA46,PA9T, LCP)
The electrical properties meet industry standards, appearance and mechanical properties meet manufacturing standards, and environmental protection standards

Q: Are you trading company or manufacture?

A: We are manufacture. Welcome to our factory.

Q: What about your lead time?

A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.

Q: Can you provide samples? Are they free?

A: Yes. Usually we can provide 2-3 samples of standard products free for testing.

Q: Can I put my own logo on it?

A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
