RJ45 All Plastic Ear Mesh Port Connector 8P8C Communication Interface DGKYD5521E1188IWA1DY1017

Min Bestellmenge :	1 Stück	Preis :	Please contact us to get the latest price.
Verpackung Informationen :	Behälter im Karton	Lieferzeit :	10 Tage
Zahlungsbedingungen :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Versorgungsmaterial-Fähigkeit :	100.000 Stück/Tag

Herkunftsort:	DongGuan aus China	Markenname:	DGKYD
Zertifizierung:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Modellnummer:	DGKYD5521E1188IWA1DY1017

Detailinformationen
Kategorie:	Telefon-Steckfassungen	Teilart:	PWB Jack
Typ:	RJ45	Magnetisch:	Keine
Leistungskategorie:	Katze 5	Insetions-Art:	Seiteneintritt
Farbe:	Schwarz	Leistungsbewertung (Ampere):	1.5A
Material:	PBT	Kündigung:	DIP
Modellnummer:	5521	Betriebstemperatur:	-40°C bis +85°C
Hervorheben:	RJ45 8P8C communication interface , RJ45 ear mesh port connector , all plastic RJ45 connector

Produkt-Beschreibung

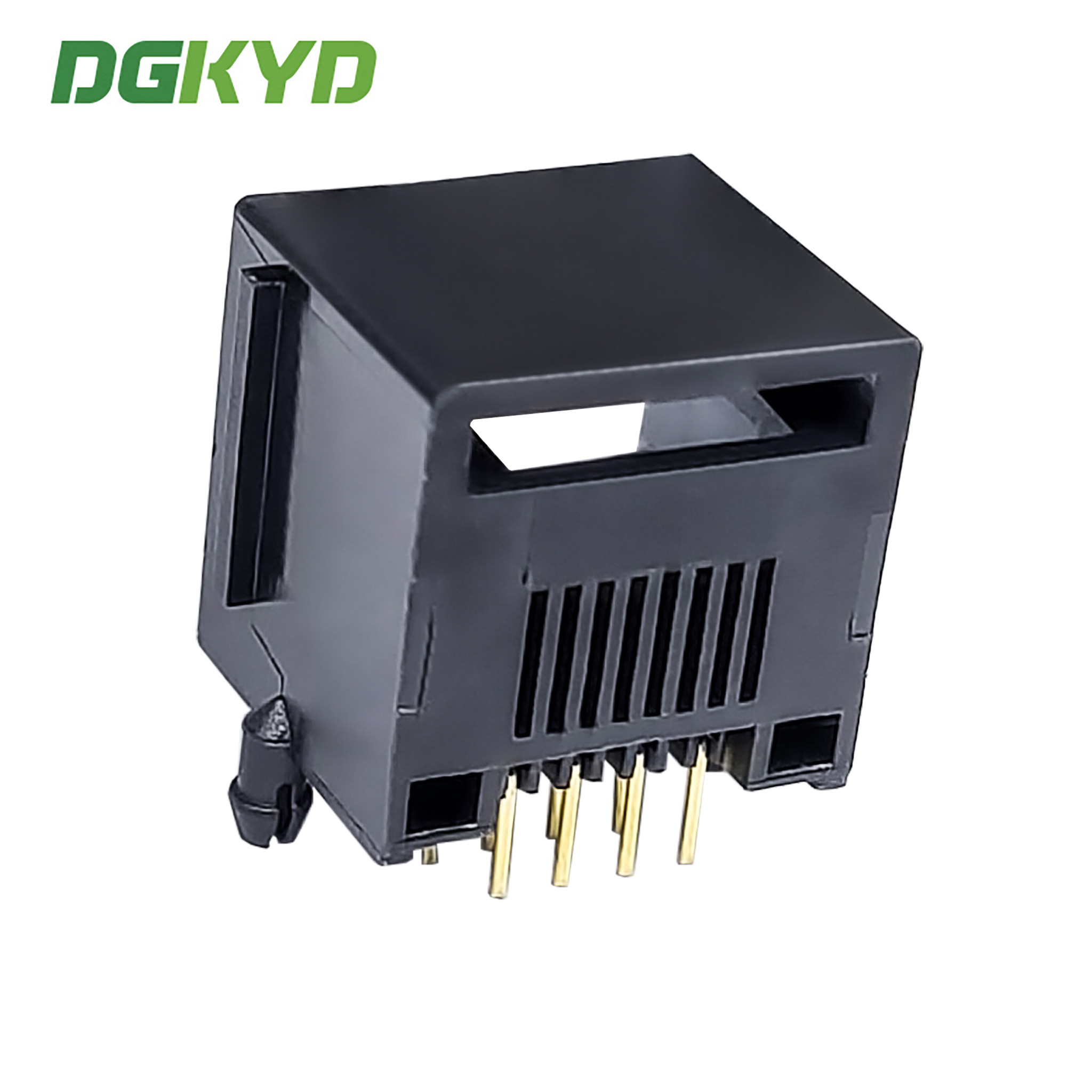

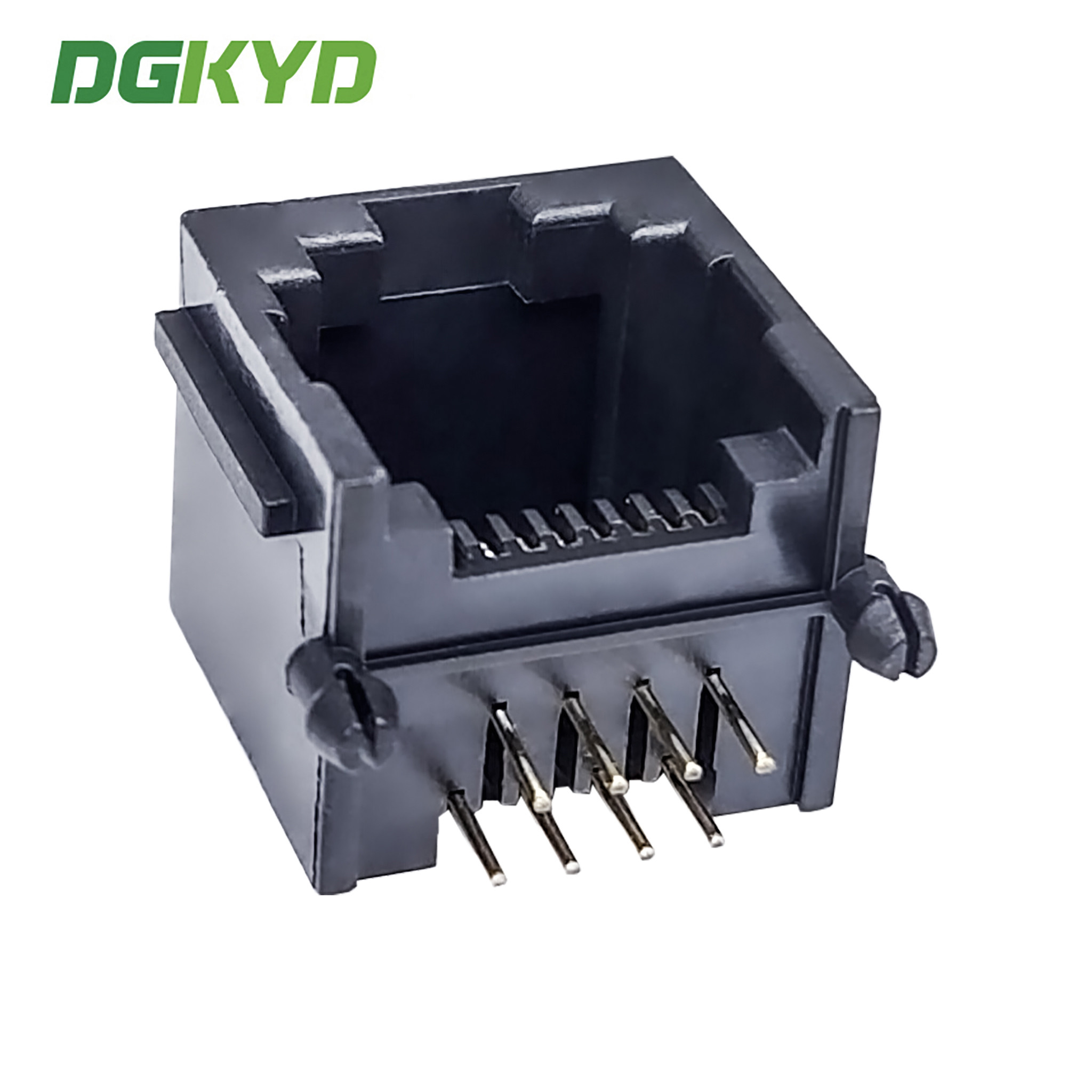

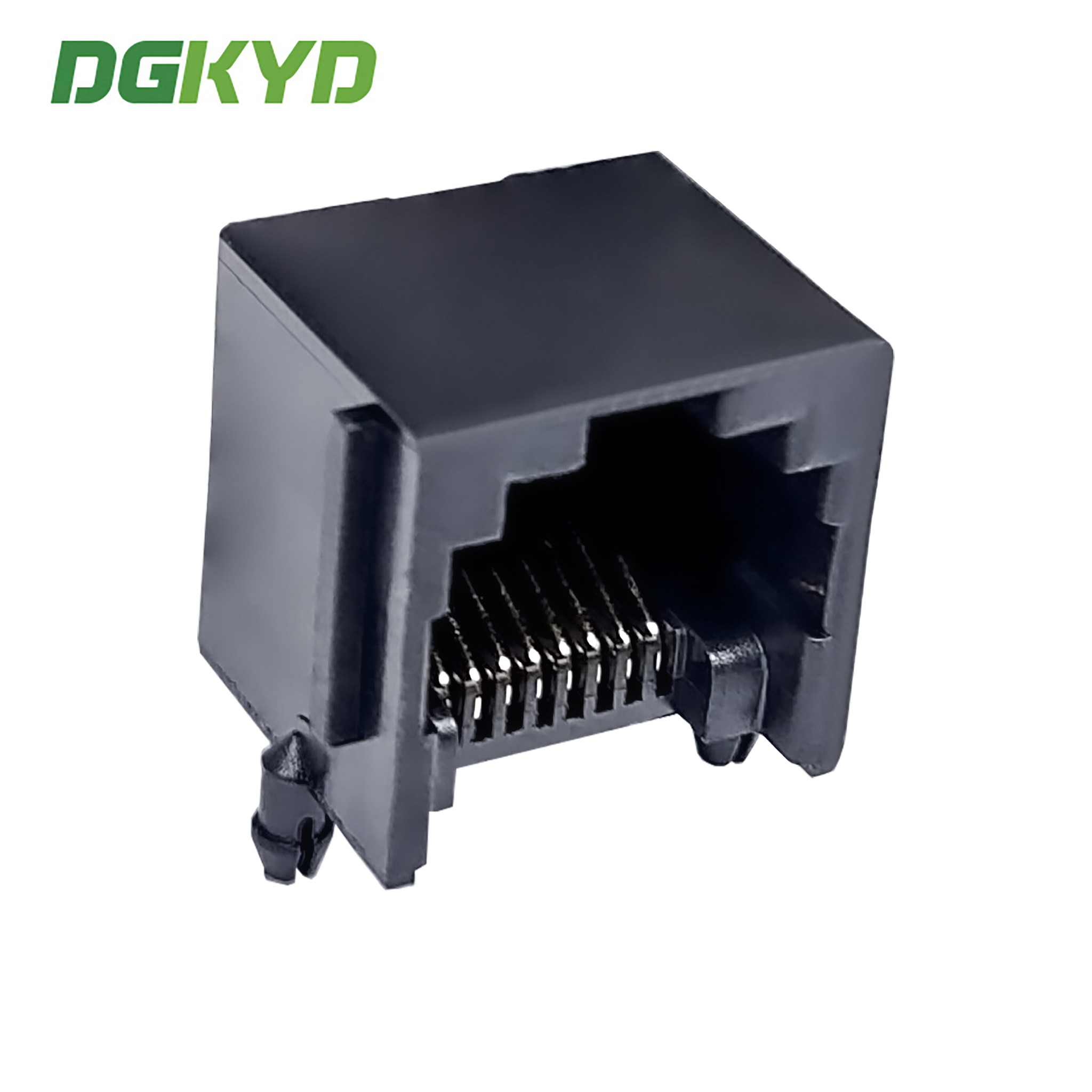

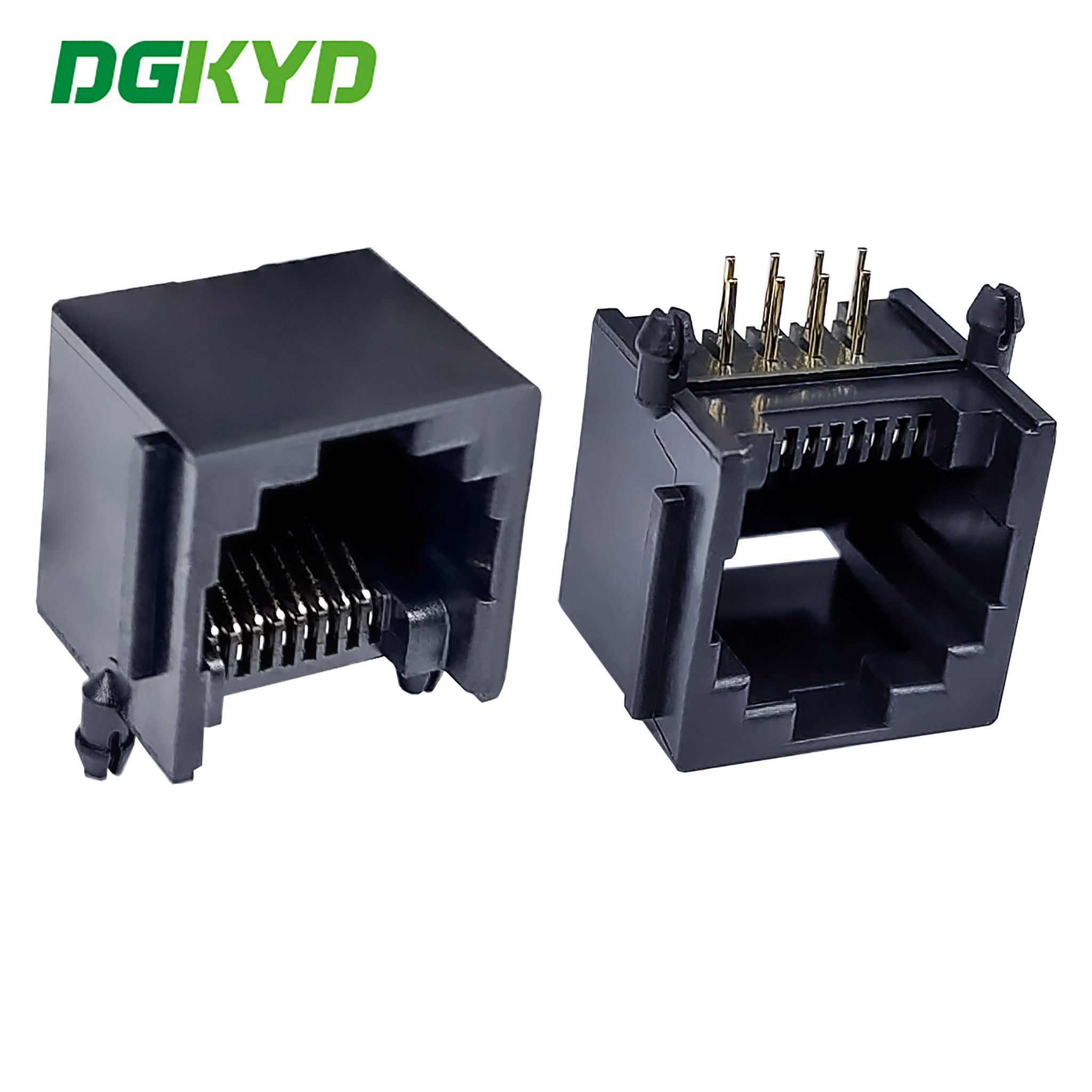

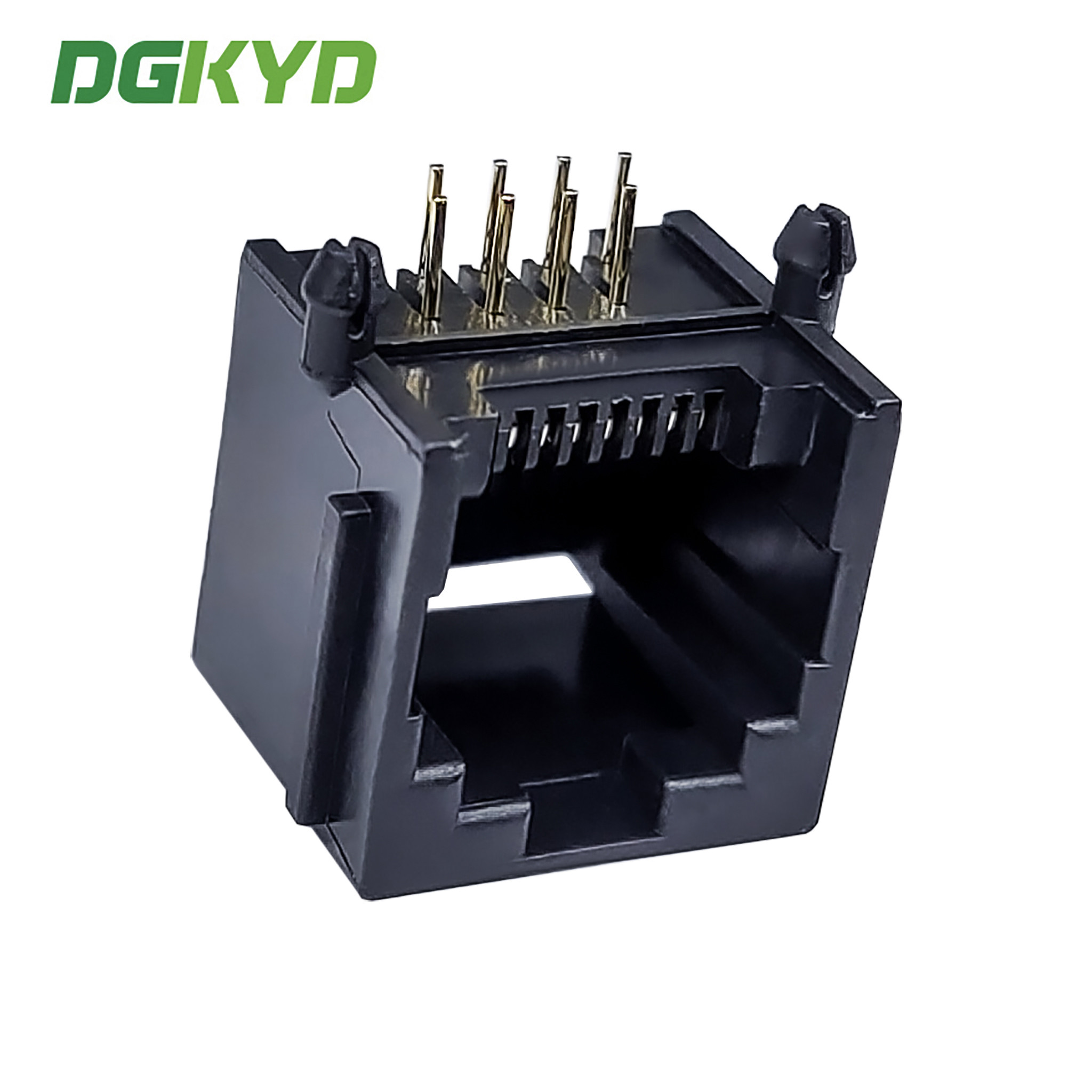

RJ45 all plastic ear mesh port connector 8P8C communication interface DGKYD5521E1188IWA1DY1017

Product Specification Document

Parameters

Part Number	DGKYD5521E1188IWA1DY1017	Brand	DGKYD/OEM/ODM
Place of Origin	Guangdong of China	Certification	RoHS/CE/FCC/CE/ISO9001/ISO14001
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	TAB-UP
Filter	Without Filter	LED Option	Without LED
LED Color	No	Panel Stops	With Panel Stops
Shielded	No	Applies To	Printed Circuit Board
Performance Speed	10/100/1000BASE-T/TX	Suitable for welding type	Reflowsolding(Alternative).
Port Configuration	Single Ports	Number of Positions	8
Jack Configuration	1X1	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating Material	Gold 0.6u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	PBT Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

RJ45 All Plastic Ear Mesh Port Connector 8P8C Communication Interface DGKYD5521E1188IWA1DY1017 0

FAQ:

1. Q: Are you trading company or manufacture?
A: We are manufacture. Welcome to our factory.

2. Q: What about your lead time?
A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.

3. Q: Can you provide samples? Are they free?
A: Yes. Usually we can provide 2-3 samples of standard products free for testing.

4. Q: Can I put my own logo on it?
A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
