180 degree vertical RJ45 connector Gigabit network interface with shielded DGKYD511Q010AB2A8D

Kontakt

180 degree vertical RJ45 connector Gigabit network interface with shielded DGKYD511Q010AB2A8D

Min Bestellmenge :	1 Stück	Preis :	Please contact us to get the latest price.
Verpackung Informationen :	Tablett im Karton	Lieferzeit :	10 Tage
Zahlungsbedingungen :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Versorgungsmaterial-Fähigkeit :	100.000 Stück/Tag

Herkunftsort:	Dongguan von China	Markenname:	DGKYD
Zertifizierung:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Modellnummer:	DGKYD511Q010AB2A8D

Detailinformationen
Produktname:	RJ45 mit Transformator	Typ:	RJ45
Gehäuse:	Phenolic, PBT Schwarz (UL94V-0)	Kunststoffkern:	Füllstoff aus Glasfasern PBT Schwarz ((UL94V-0), ROHS
Schild RJ45:	Ja	Nr. Hafen:	Single Port
Statusanzeige:	Grün/gelb	Riegelorientierung:	Top -Eintrag
Anzahl der Positionen/Kontakte:	8p10c (RJ45, Ethernet)	Goldbeschichtung auf Kontaktstiften:	6U
Lagertemperatur:	-40°C~+85°C	Betriebstemperatur:	-40°C~+85°C
Hervorheben:	180 degree RJ45 Ethernet connector , shielded Gigabit network interface , vertical RJ45 connector with warranty

Produkt-Beschreibung

180 Degree Vertical RJ45 Connector Gigabit Network Interface

Part Number: DGKYD511Q010AB2A8D

Product Overview

180-degree vertical RJ45 transformer with PoE+ capability, designed for reliable Gigabit network connectivity in industrial applications.

Technical Specifications

Specification	Details
Part Number	DGKYD511Q010AB2A8D
Brand	DGKYD/OEM/ODM
Product Type	Connector-Modular
Connector Style	Jack
Jack Type	RJ45
Latch Style	Standard TAB-UP
Filter	With Filter
LED Option	With LED (Green/Yellow)
Shielded	With metal shield
PCB Mounting Orientation	Side Entry (Right Angle)
Contact Plating	Gold 6μ
Housing Material	PBT Polyester (Black)
UL Flammability Rating	UL 94V-0
Working Temperature	-40℃ to 85℃

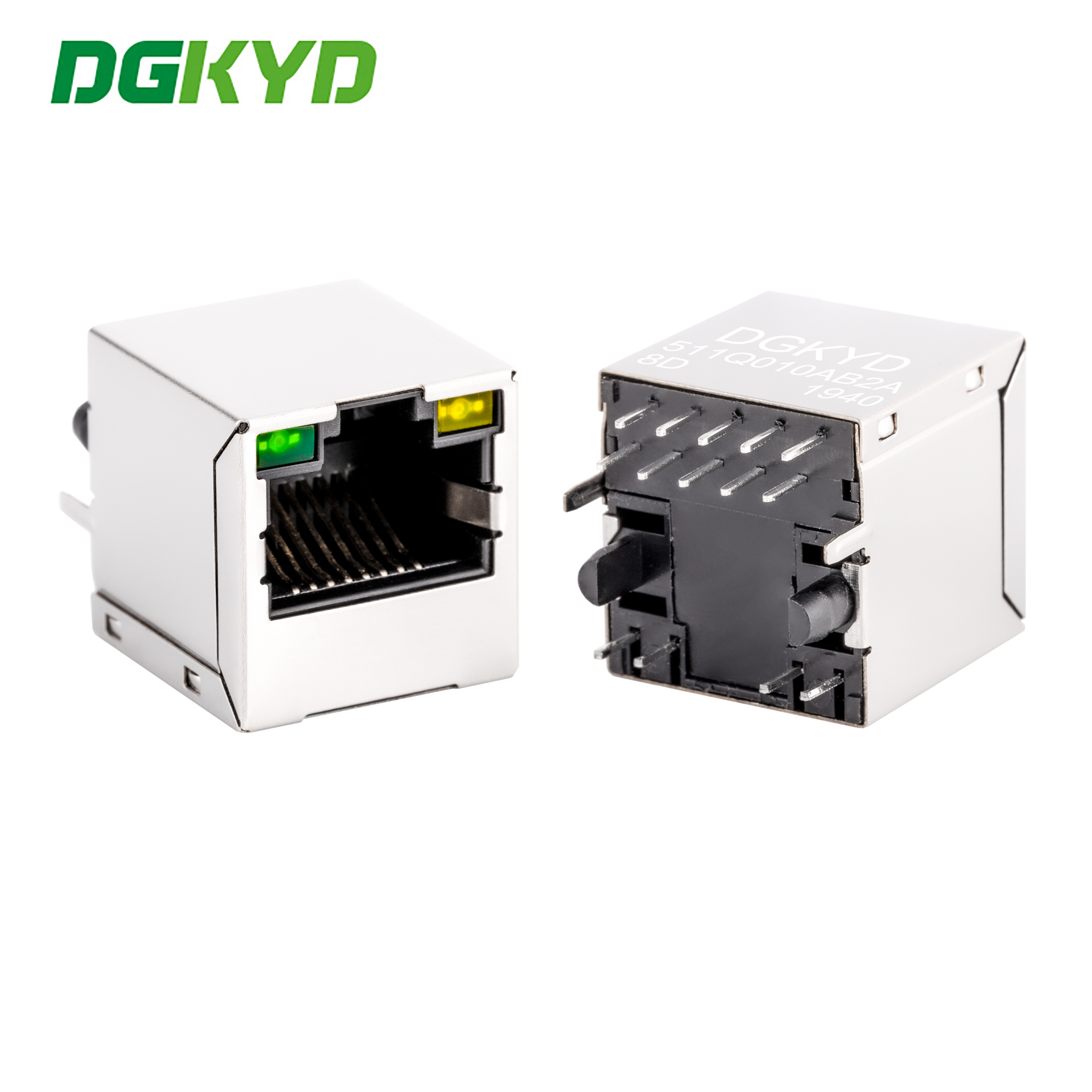

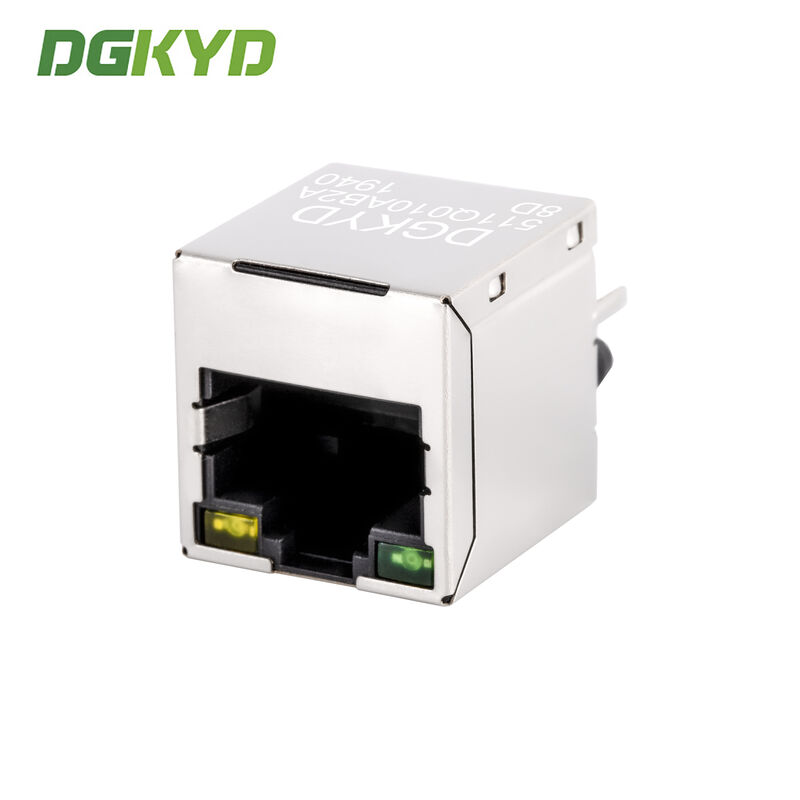

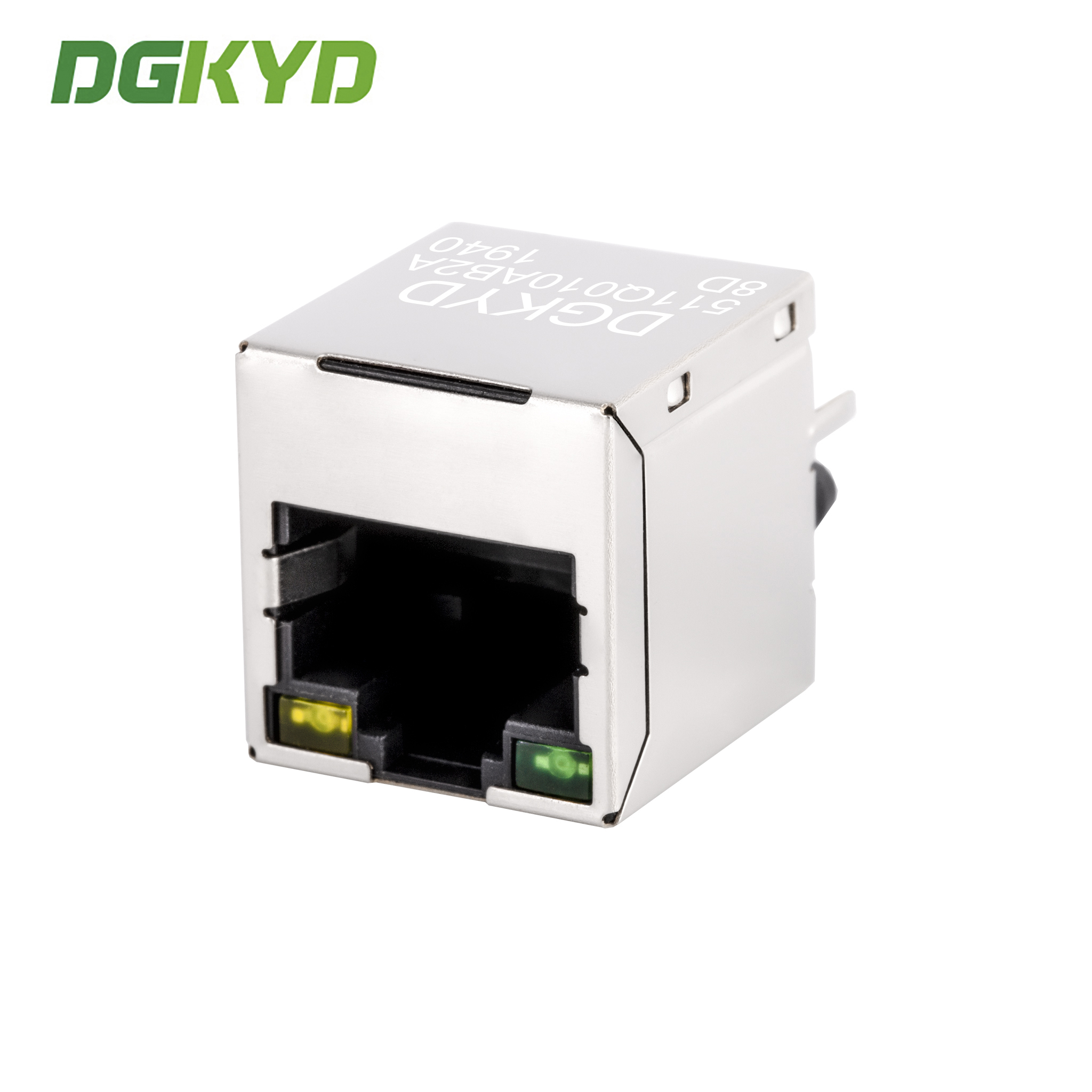

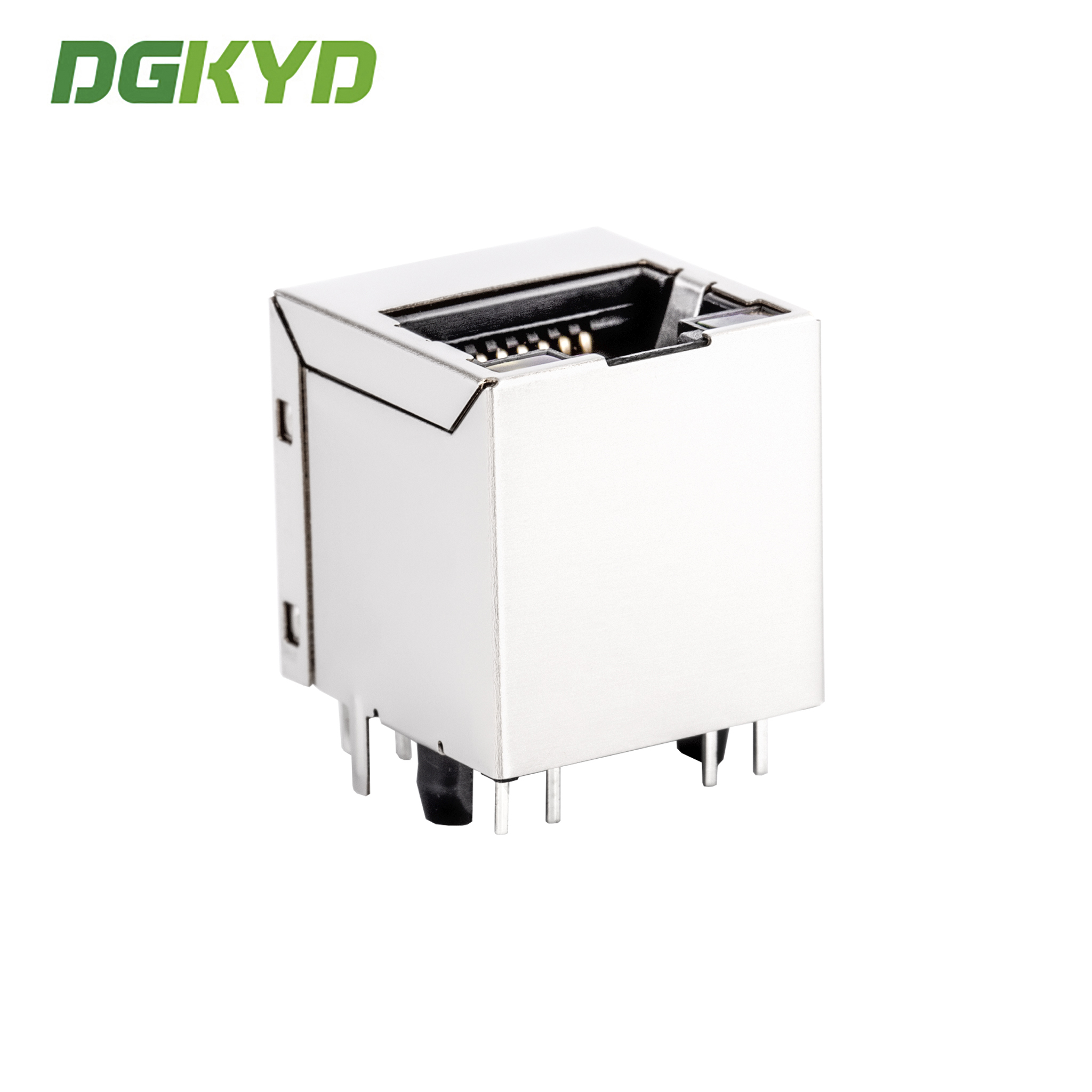

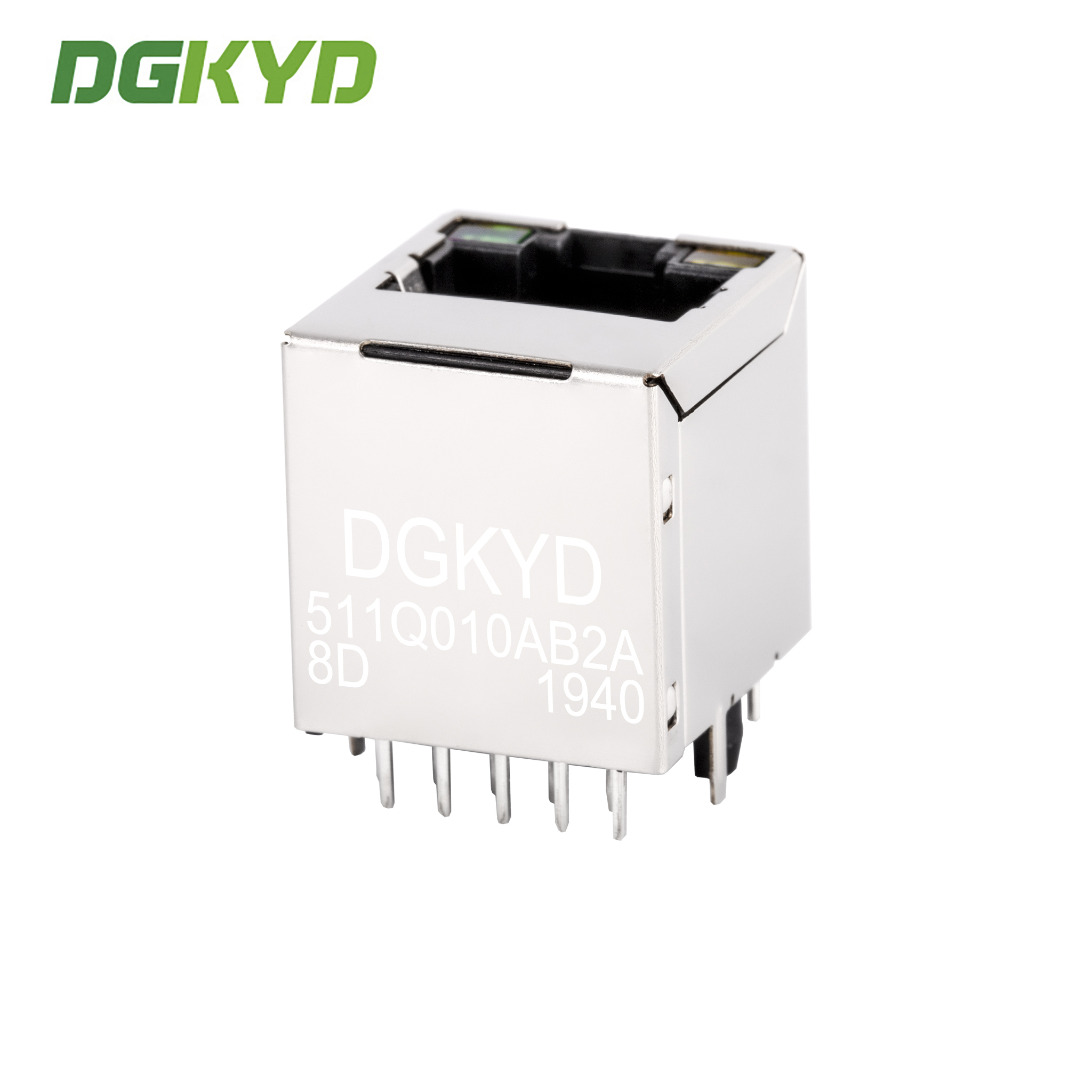

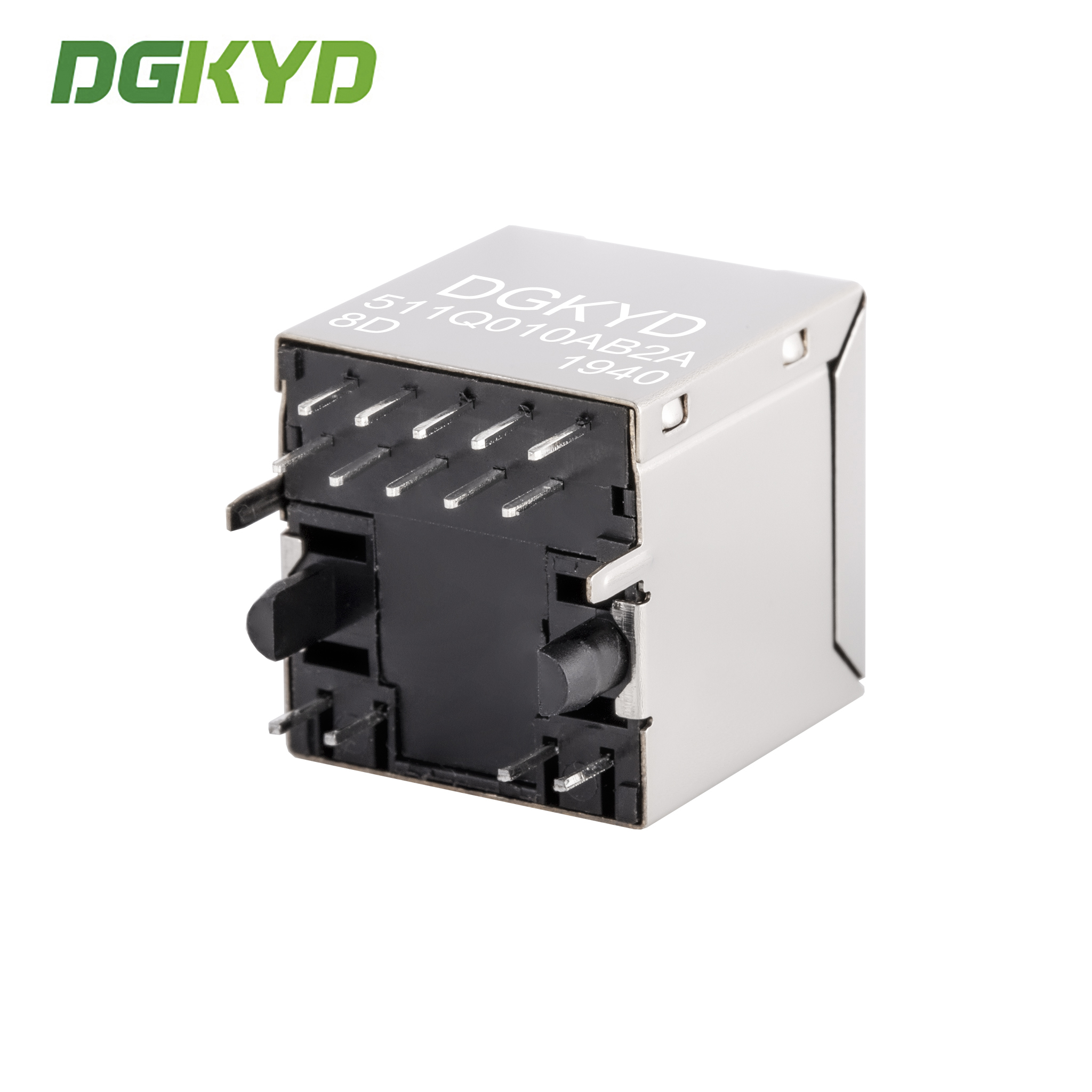

Product Images

Manufacturer Information

Product Features

Interface type: Crystal head application for 10/100/1000BASE-T Ethernet
Built-in magnetics for enhanced signal integrity
High frequency characteristics: Filtering and anti-interference capabilities
Operating temperature range: -40℃ to 85℃
Lead-free soldering compatible up to 265℃
Complete RJ45 integrated circuit accessories series
Multiple LED indicator options (green, yellow, red, orange, blue, bi-color)
EMI shielding options available
Customizable magnetic core coil ratios
Multiple contact gold plating thickness options (3U, 6U, 15U, 30U, 50U)
Various plastic housing materials (PBT, PA46, PA9T, LCP)

All electrical properties meet industry standards, with mechanical specifications conforming to manufacturing standards and environmental compliance requirements.

Frequently Asked Questions

Are you a trading company or manufacturer?

We are a manufacturer. Welcome to visit our factory.

What about your lead time?

In-stock products ship within 5-7 working days after payment. Customized and out-of-stock items have delivery times confirmed based on order quantity.

Can you provide samples? Are they free?

Yes, we typically provide 2-3 samples of standard products free for testing purposes.

Can I put my own logo on it?

Yes, as a manufacturer with 11 years of OEM experience, we are fully capable of customizing products to your specifications.
