RJ11 crystal head 6P6C crystal head DGKYDRJ111166F1A1WW041 (short body)

Min Bestellmenge :	1 Stück	Preis :	Please contact us to get the latest price.
Verpackung Informationen :	Tablett im Karton	Lieferzeit :	10 Tage
Zahlungsbedingungen :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Versorgungsmaterial-Fähigkeit :	100.000 Stück/Tag

Herkunftsort:	Dongguan von China	Markenname:	DGKYD
Zertifizierung:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Modellnummer:	DGKYDRJ111166F1A1WW041
Dokumentieren:	DGKYDRJ111166F1A1WW041.pdf

Detailinformationen
Gehäuse:	P C	Aktuelle Bewertung:	1,5 AMPERE
Kontaktwiderstand:	50 Millionen Max.	Terminal:	1U"GOLD plattiert.
BetriebstemperaturWiderstand:	-40°C+80°C.	Nennspannung:	125 VAC RMS.
Isolationswiderstand:	Bei der Prüfung der Leistungsfähigkeit ist die Leistungsfähigkeit der Fahrzeuge zu überprüfen.	Spannungsfestigkeit:	1000 VAC RMS 50 Hz, 1 Minute.
Hülse:	C2680R-H,T=0,20MM,20~50U" MIN	Typ:	Kristallkopf
Hervorheben:	RJ11 crystal head connector , 6P6C short body connector , RJ11 wire harness connector

Produkt-Beschreibung

RJ11 Crystal Head 6P6C Modular Connector

Part Number: DGKYDRJ111166F1A1WW041 (Short Body)

Professional-grade RJ11 6P6C modular connector designed for printed circuit board applications with side entry mounting.

Product Documentation

Download Product Specification Document (PDF)

Technical Specifications

Parameter	Specification
Part Number	DGKYDRJ111166F1A1WW041
Brand	DGKYD/OEM/ODM
Place of Origin	Guangdong, China
Certification	CE / UL / FCC / Reach / RoHS
Product Type	Connector-Modular
Connector Style	Jack
Jack Type	RJ11
Connector Type	Modular Jack
Latch Style	Standard
Filter	Without internal filter
LED Option	Without LED
Panel Stops	Without Panel Stops
Shielded	Yes
Applies To	Printed Circuit Board
Performance Speed	Standard
Grounding Options	Panel Ground and PCB Ground
Port Configuration	1 port
Number of Positions	6
Jack Configuration	1 x 1
Terminals per Port	6
Shield Material	Copper Alloy preplated with Nickel
PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating Material	Gold 1u
Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel
PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit
Board Lock	With/Without Board Lock
Housing Material	PC Polyester
Housing Color	White
Housing Material Temperature	Standard
UL Flammability Rating	UL 94V-0

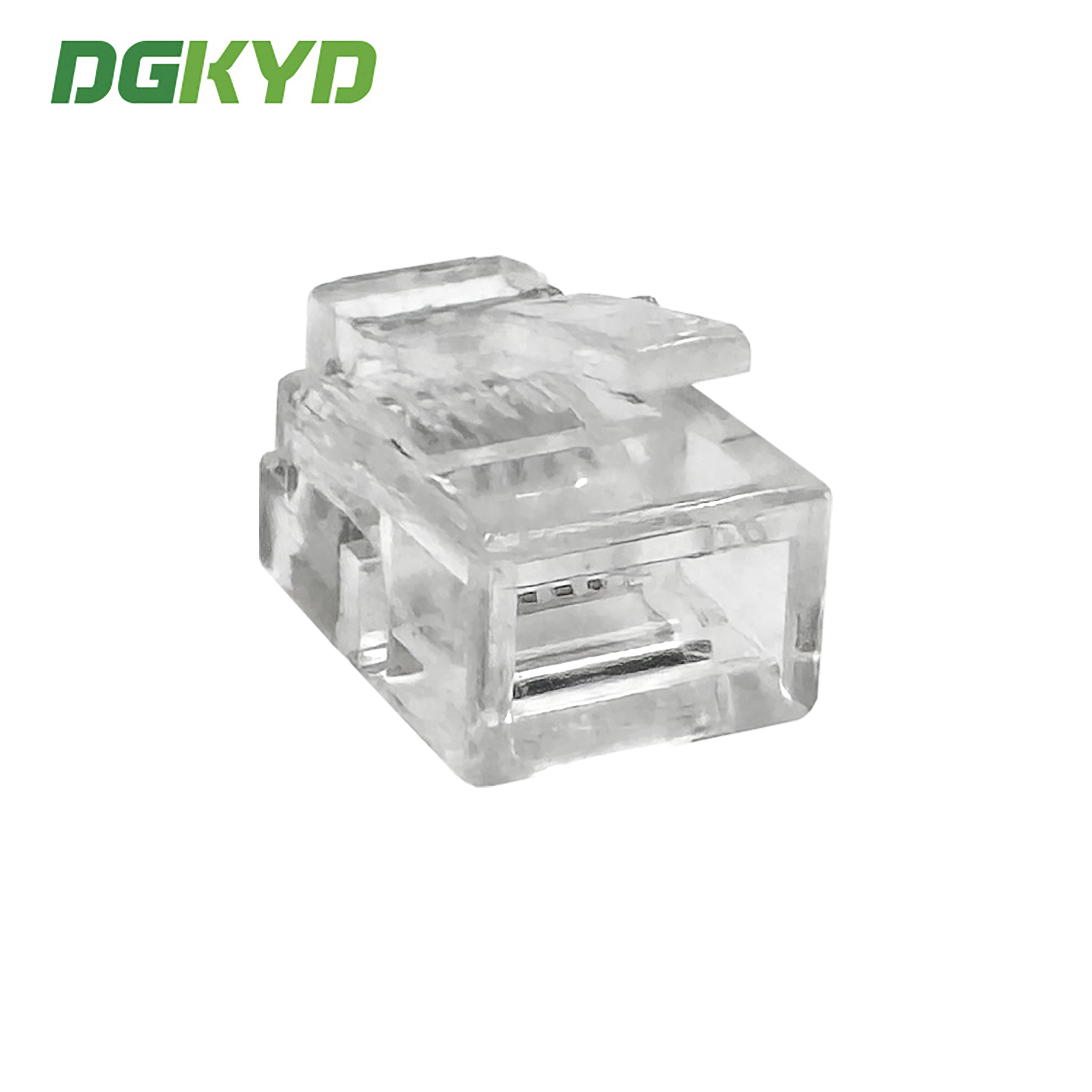

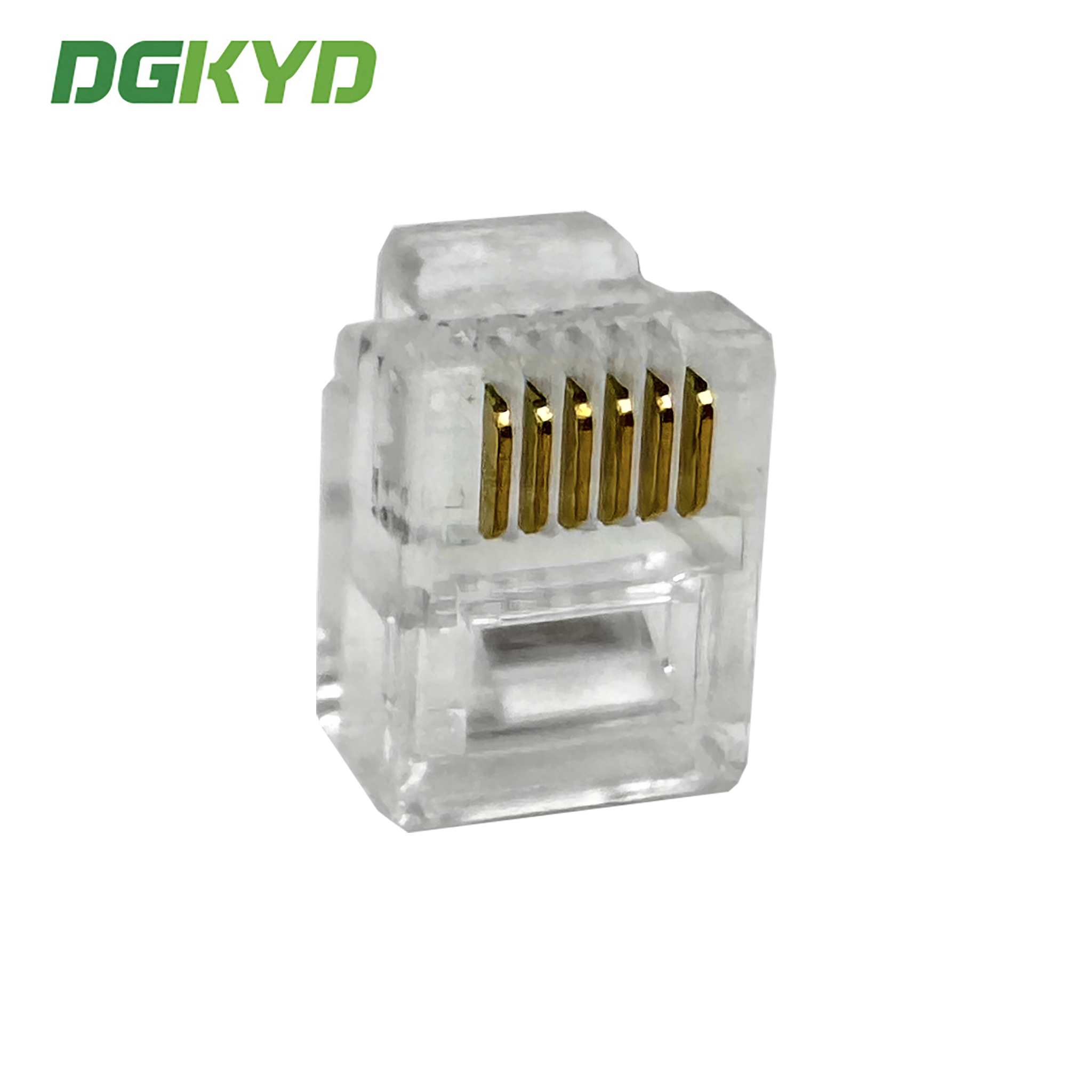

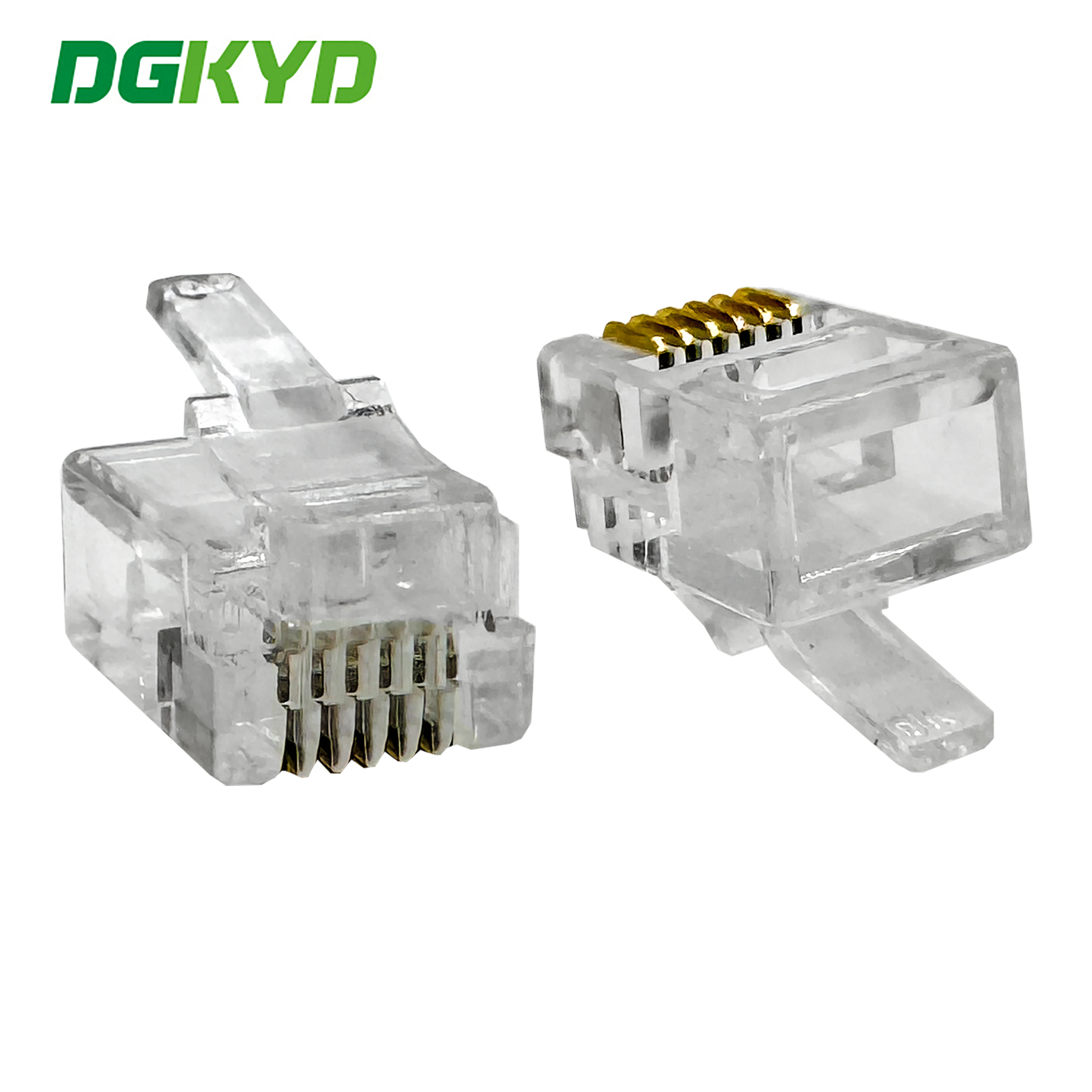

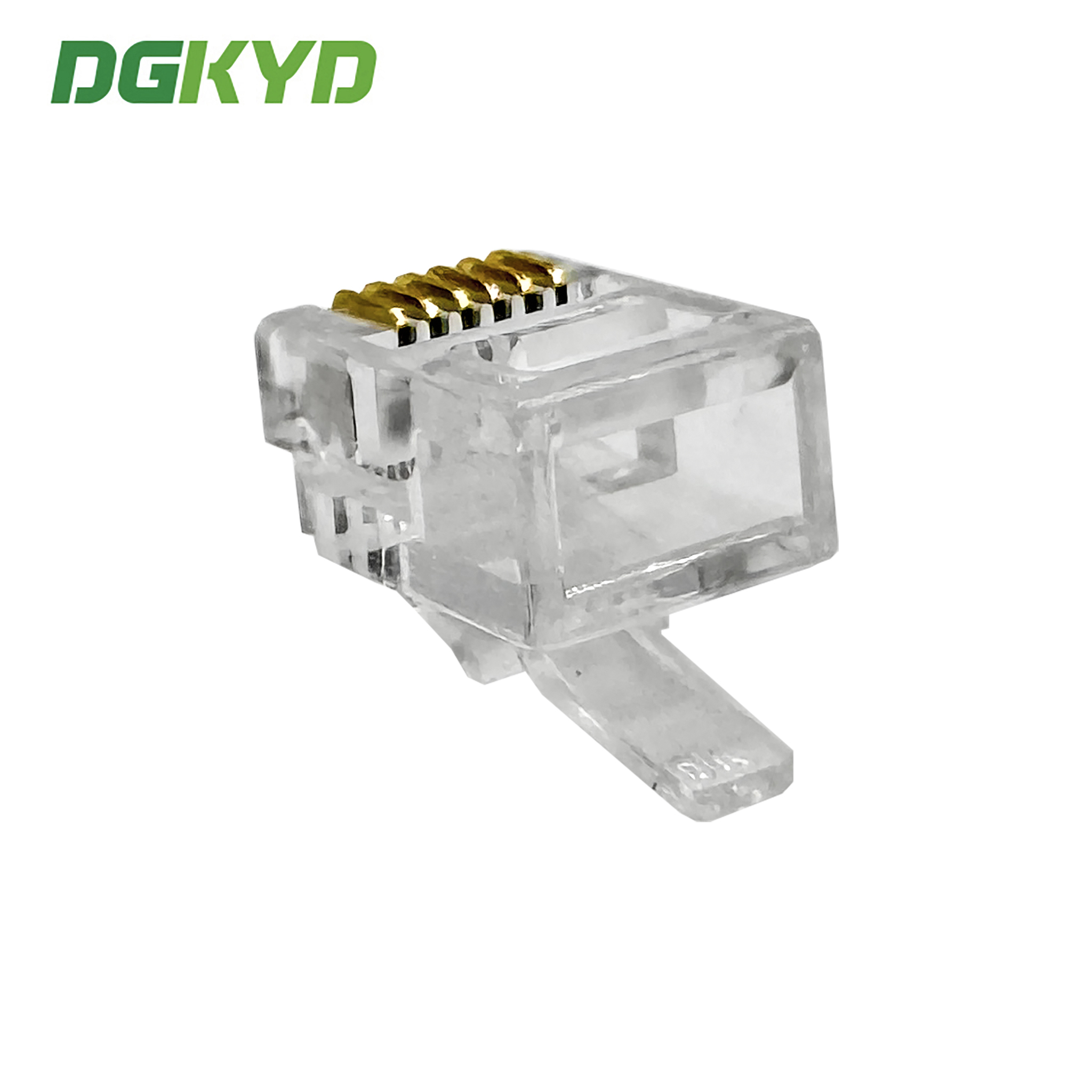

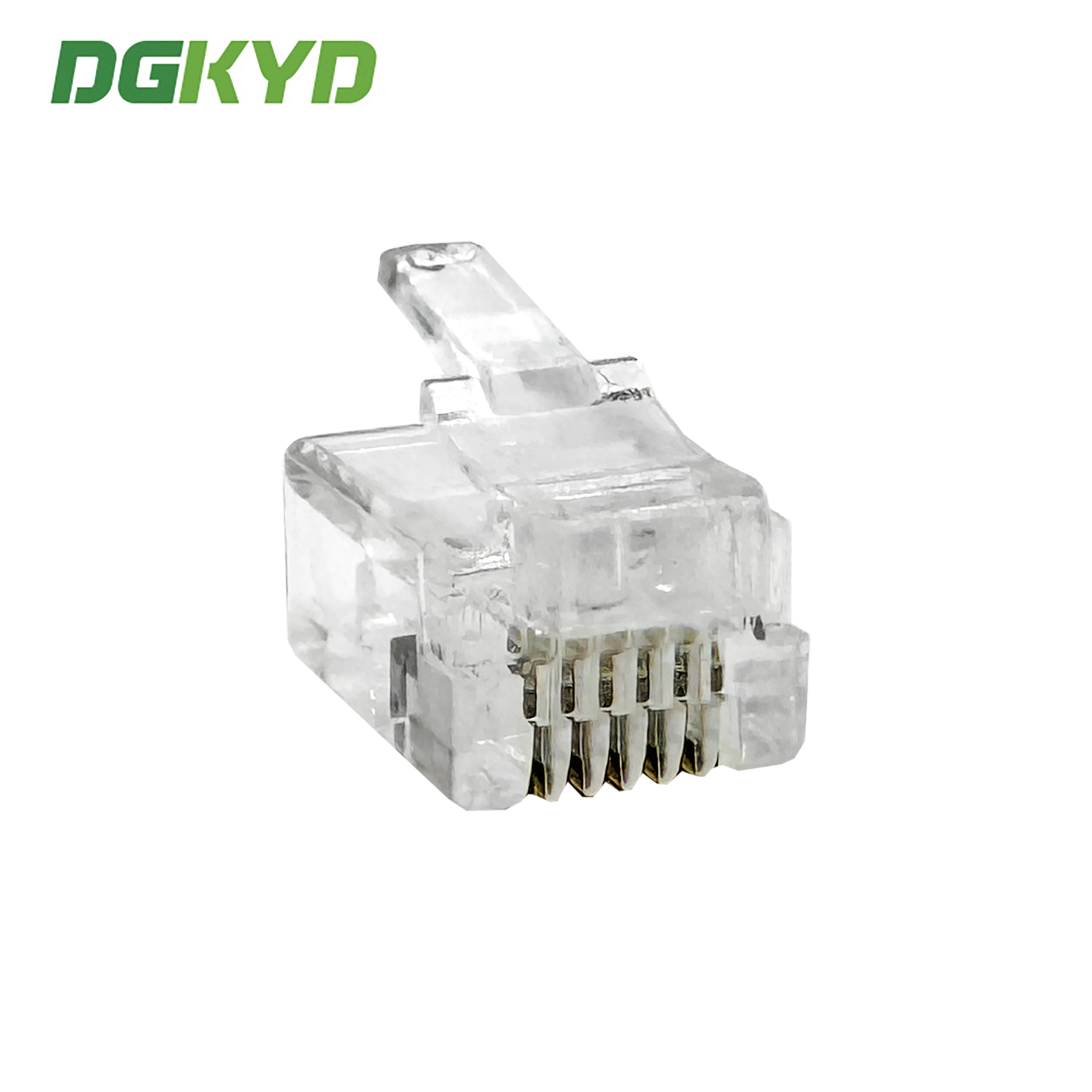

Product Images

Frequently Asked Questions

Q: Are you a trading company or manufacturer?
A: We are a manufacturer. Welcome to visit our factory.
Q: What about your lead time?
A: For products in stock, delivery within 5-7 working days after payment. For customized and out-of-stock products, delivery time confirmed based on order quantity.
Q: Can you provide samples? Are they free?
A: Yes. We typically provide 2-3 samples of standard products free for testing.
Q: Can I put my own logo on it?
A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
