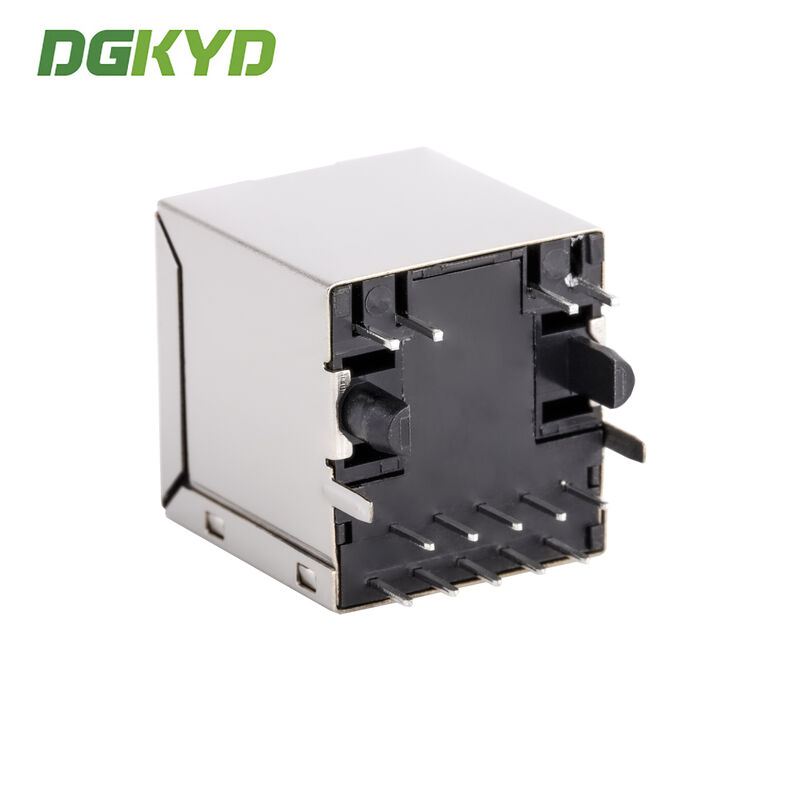

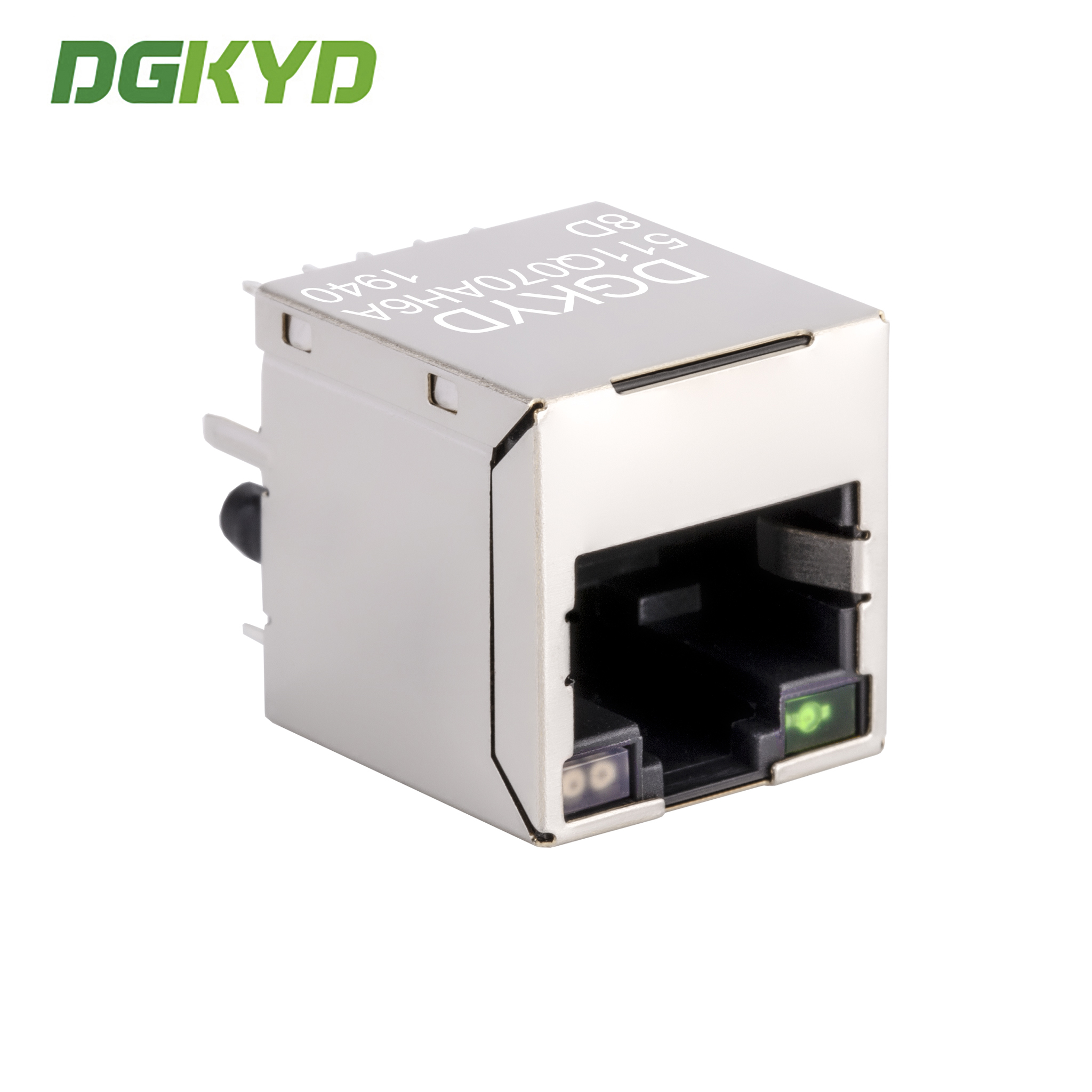

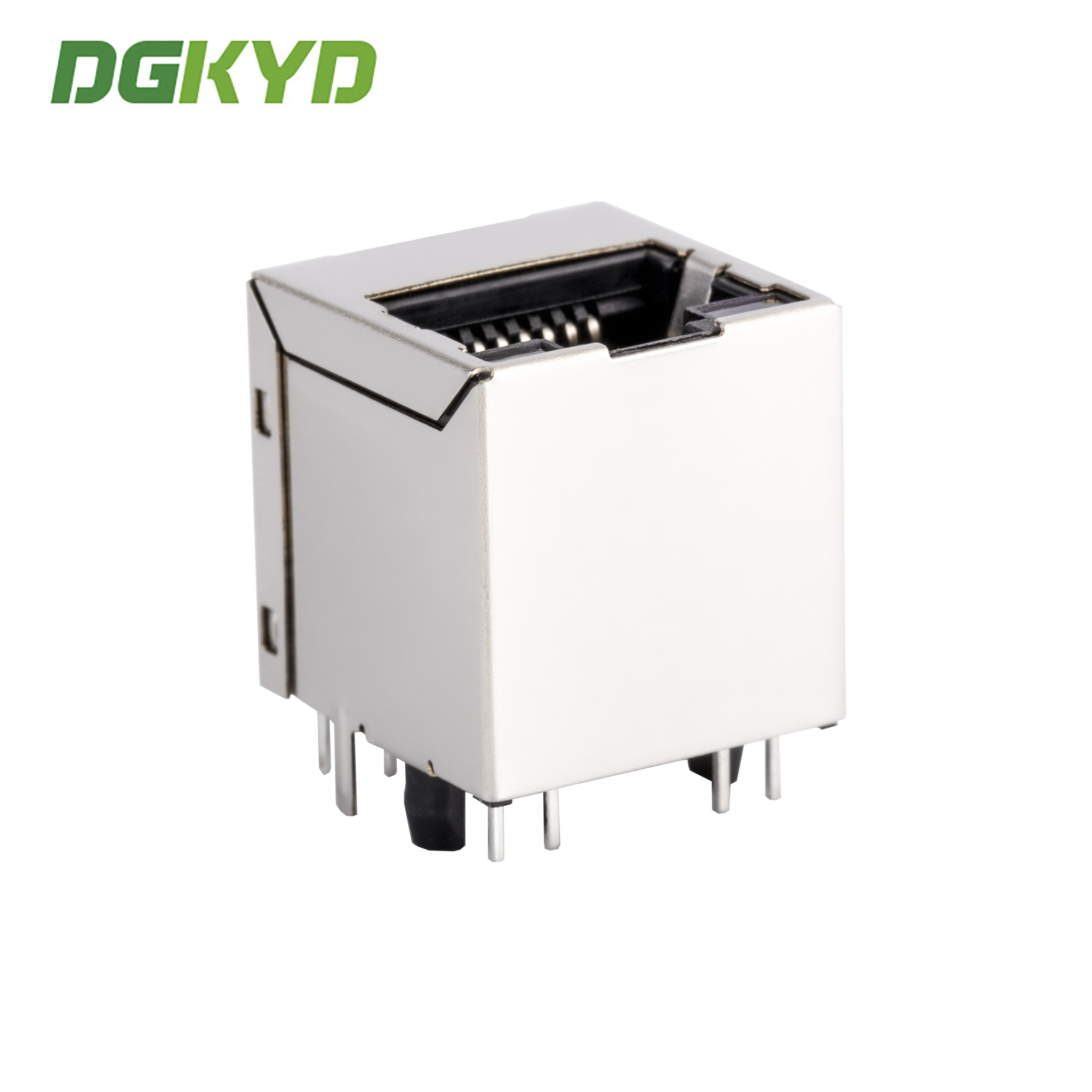

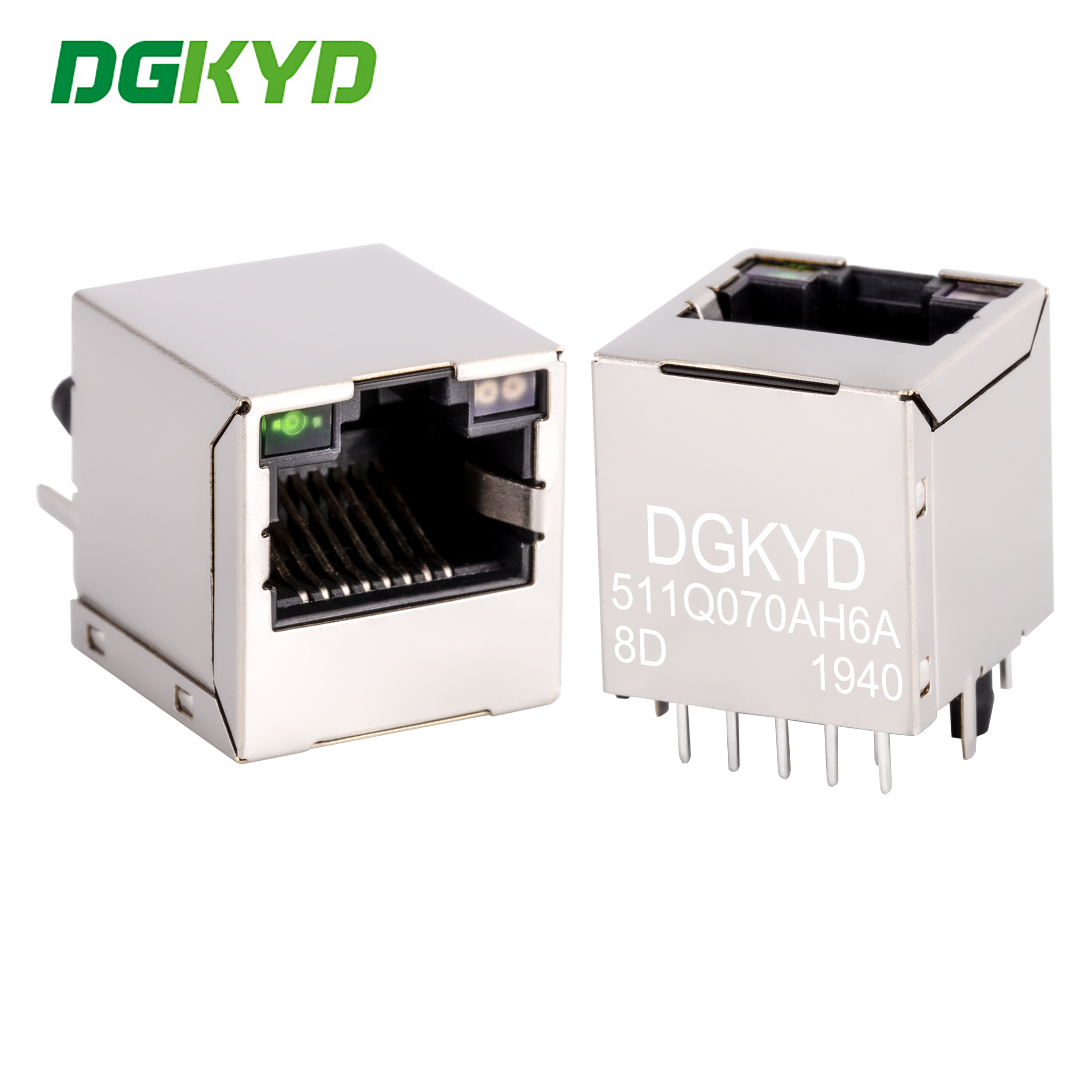

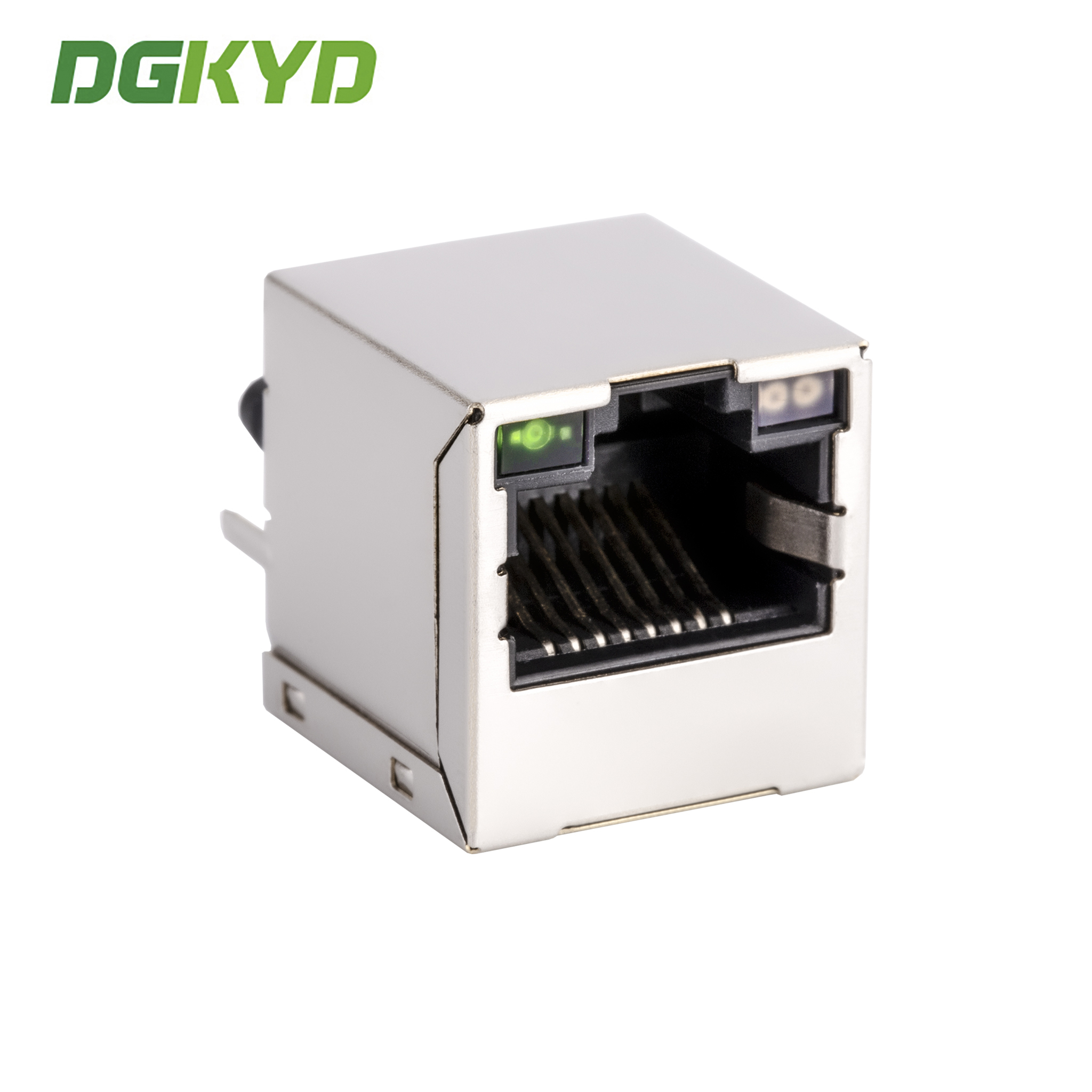

RJ45 vertical connector Gigabit industrial grade Ethernet port with light and shielding DGKYD511Q070AH6A8D

Min Bestellmenge :	1 Stück	Preis :	Please contact us to get the latest price.
Verpackung Informationen :	Tablett im Karton	Lieferzeit :	10 Tage
Zahlungsbedingungen :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Versorgungsmaterial-Fähigkeit :	100k PCs/Tag

Herkunftsort:	Dongguan von China	Markenname:	DGKYD
Zertifizierung:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Modellnummer:	DGKYD511Q070AH6A8D

Detailinformationen
Kategorie:	Modulare Steckfassungen	Komponententyp:	PCB -Buchse
Leistungskategorie:	5E&6	Insetions-Art:	180 Grad Vtertical
Schild RJ45:	Ja	Typ:	RJ45
LED:	Grün/Grün-Orange	Anzahl der Positionen/Kontakte:	8p10c (RJ45, Ethernet)
Goldbeschichtung auf Kontaktstiften:	6u	Betriebstemperatur:	-40 ° C ~+85 ° C.
Lagerung Lagertemperatur:	- 40 ℃ ~ 85 ℃
Hervorheben:	vertical RJ45 connector industrial grade , Gigabit Ethernet port with shielding , top entry RJ45 connector with light

Produkt-Beschreibung

RJ45 Vertical Connector Gigabit Industrial Grade Ethernet Port with Light and Shielding DGKYD511Q070AH6A8D

Part Number	DGKYD511Q070AH6A8D	Brand	DGKYD/OEM/ODM
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	TAB-UP
Filter	With Filter	LED Option	With LED
LED Color	Green/Green-Orange	Panel Stops	With Panel Stops
Shielded	With metal shield	Applies To	Printed Circuit Board
Port Configuration	1X1 Ports	Number of Positions	10
Jack Configuration	1X1	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating	Gold 6u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	PBT Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

Product Features

Interface type: crystal head application: 10/100/1000BASE-T Ethernet
Type: RJ45 built in magnetics
Working frequency: high frequency characteristic: filtering, anti-interference
Working temperature: -40℃ to 85℃
Storage temperature: -40℃ to 85℃
Lead free soldering: wave soldering height up to 265℃

Manufacturer Advantages

RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply
Business mode: Manufacturer
Delivery time: on time delivery, around two weeks
Customization options available for LED indicator lights, shielding, coil ratio, magnetics circuit, contact plating, and housing material
Products meet industry standards for electrical properties, mechanical properties, and environmental protection

Frequently Asked Questions

Q: Are you trading company or manufacture?

A: We are manufacture. Welcome to our factory.

Q: What about your lead time?

A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.

Q: Can you provide samples? Are they free?

A: Yes. Usually we can provide 2-3 samples of standard products free for testing.

Q: Can I put my own logo on it?

A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
