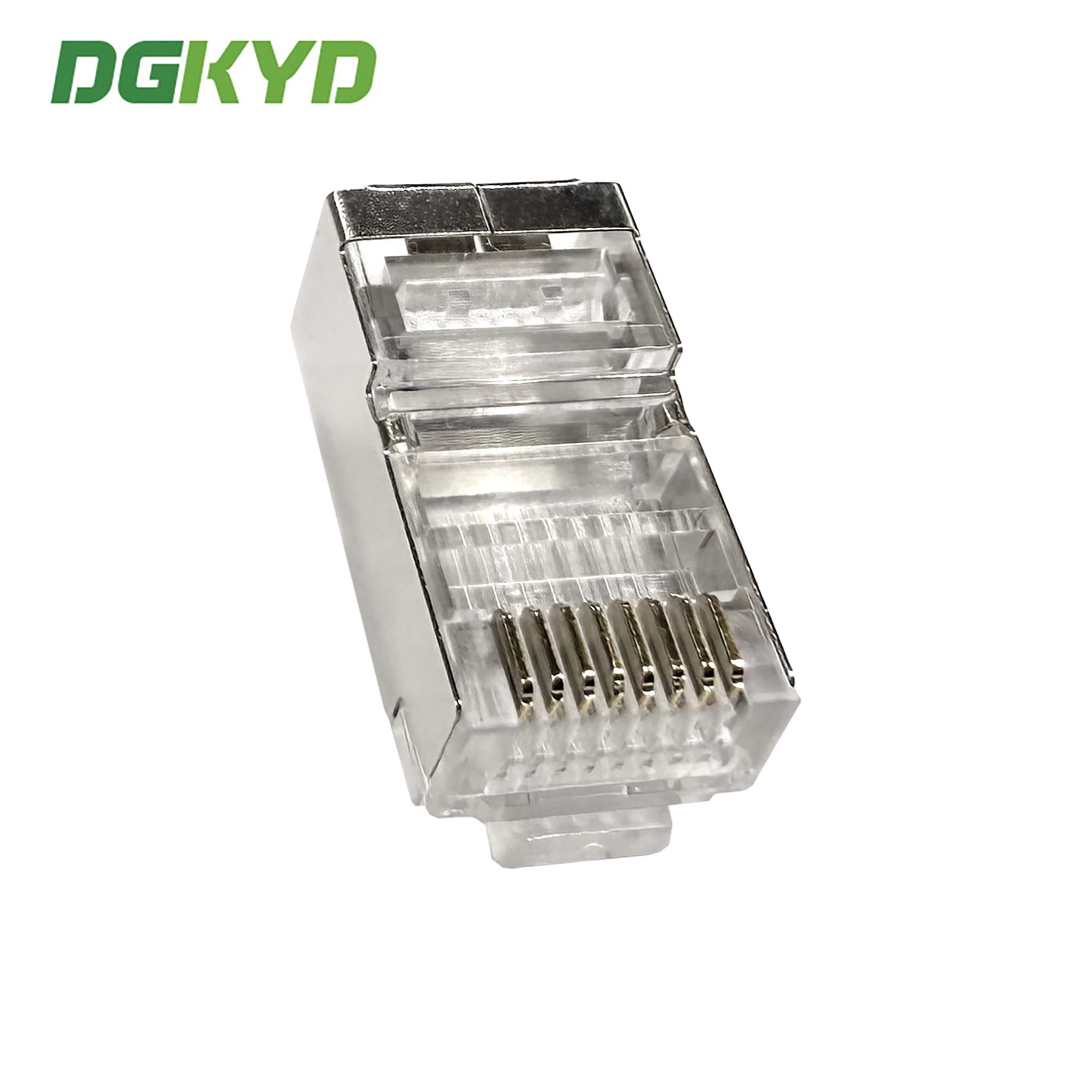

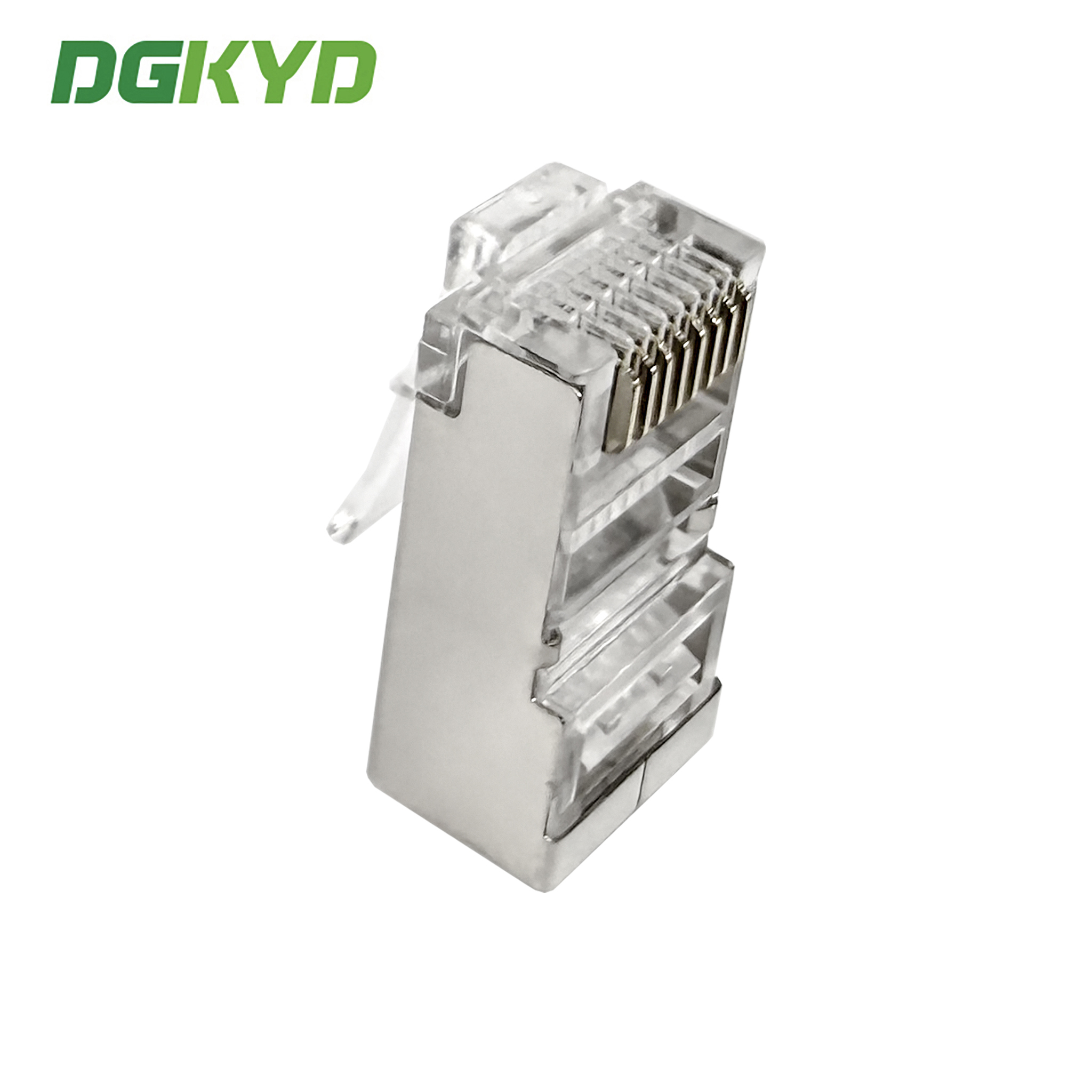

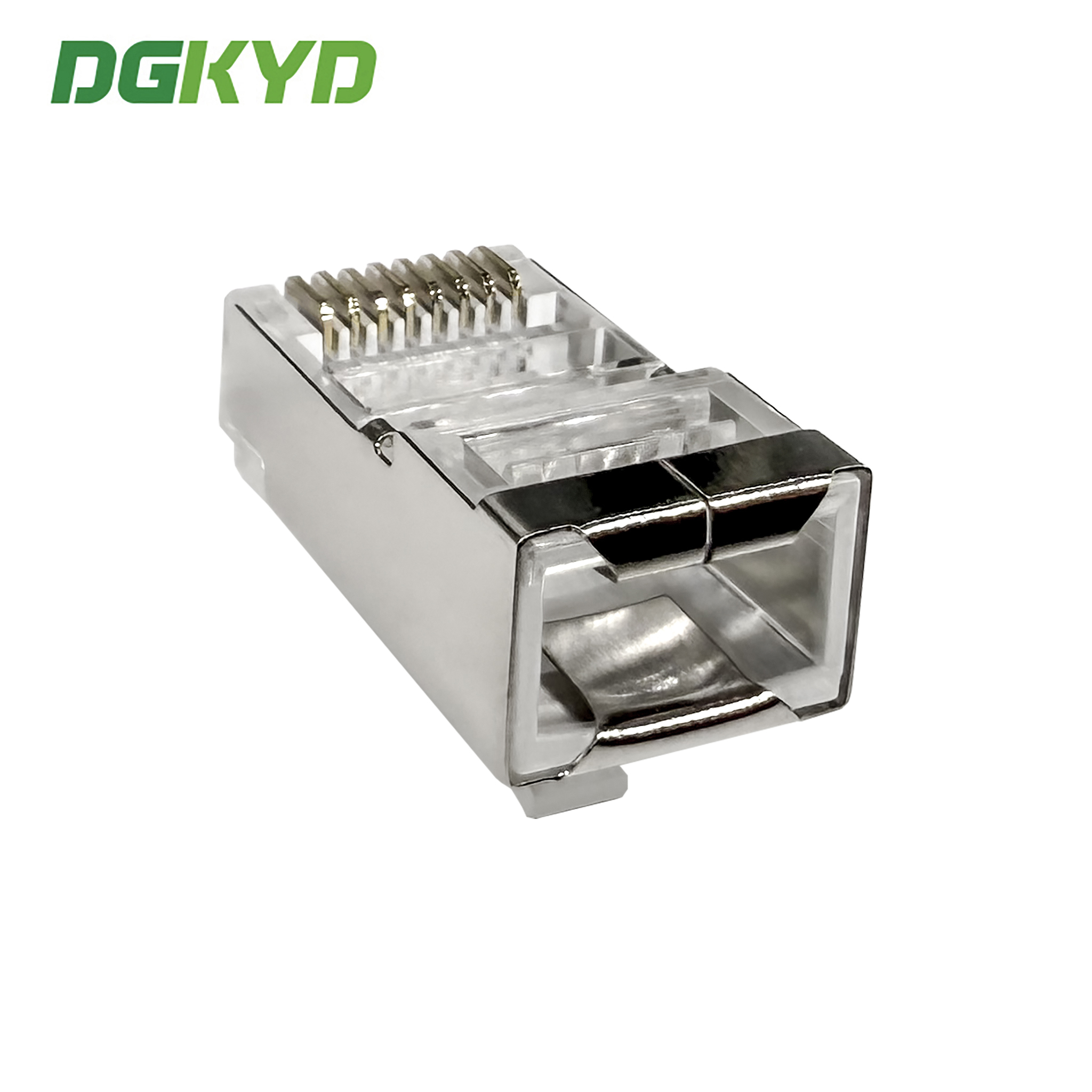

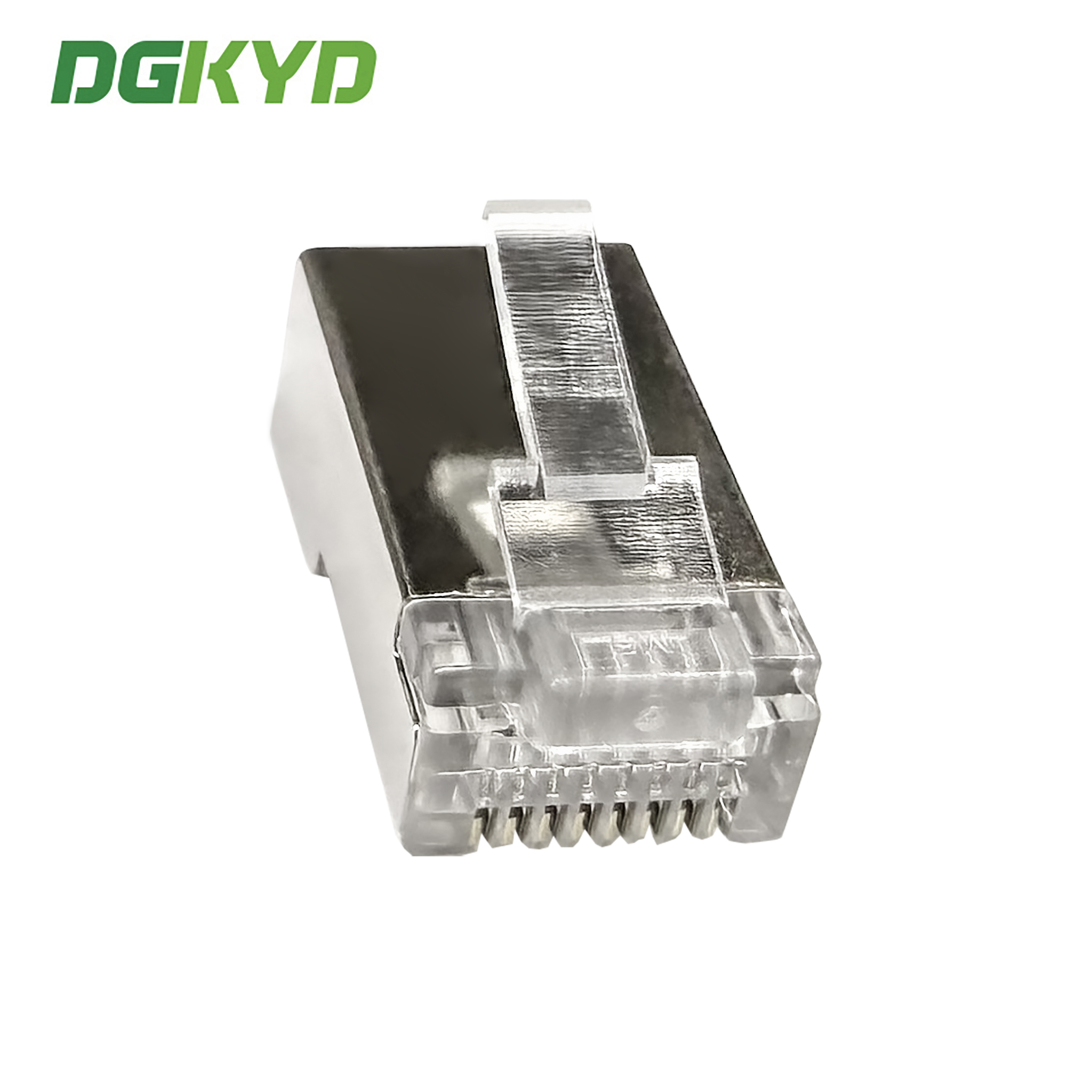

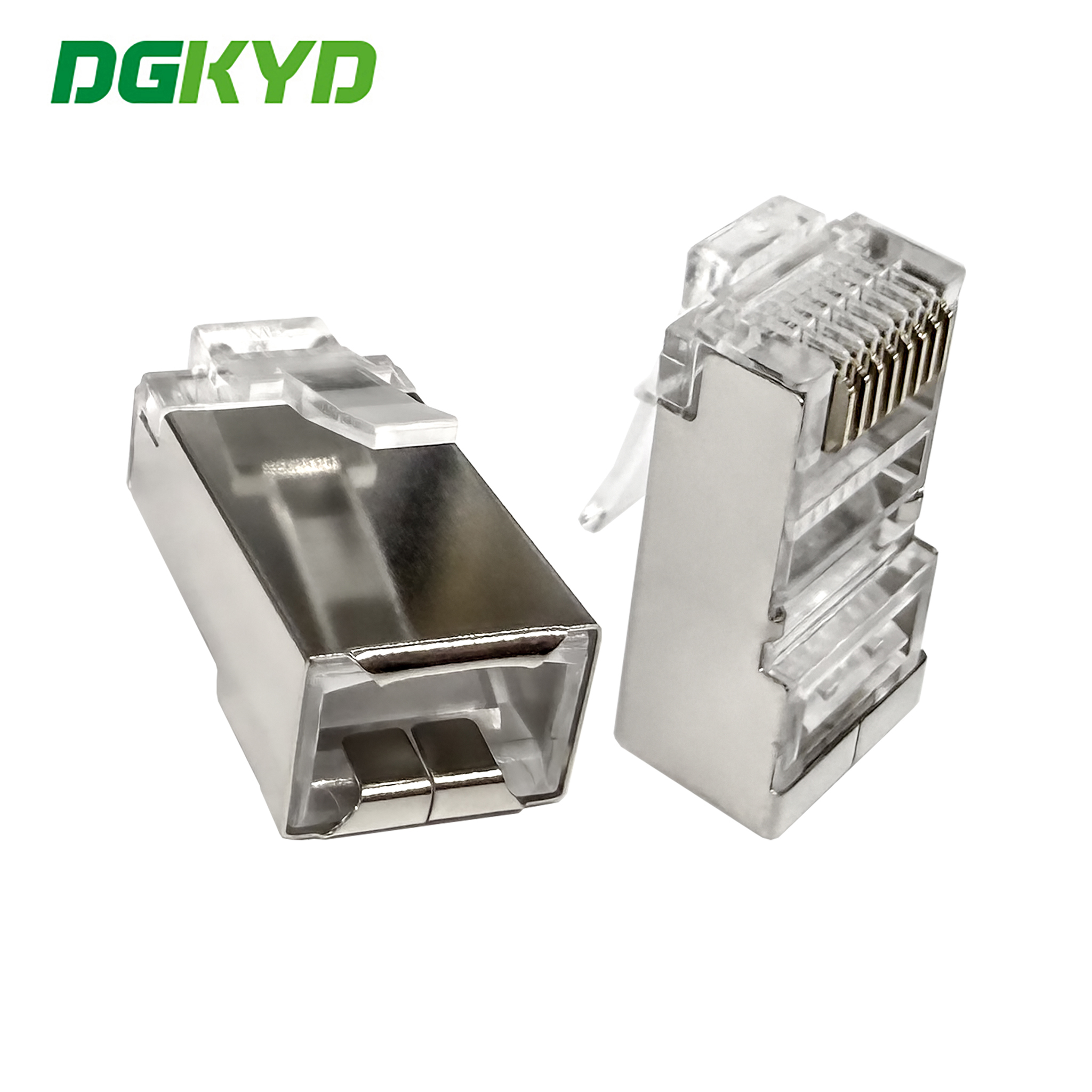

RJ45 8P8C Crystal Headband Shielded Copper Shell RJ45 Male Head DGKYDRJ451188F1A1Y1W041

Min Bestellmenge :	1 Stück	Preis :	Please contact us to get the latest price.
Verpackung Informationen :	Tablett im Karton	Lieferzeit :	10 Tage
Zahlungsbedingungen :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Versorgungsmaterial-Fähigkeit :	100k PCs/Tag

Herkunftsort:	Dongguan von China	Markenname:	DGKYD
Zertifizierung:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Modellnummer:	DGKYDRJ451188F1A1Y1W041

Detailinformationen
Gehäuse:	P C	Aktuelle Bewertung:	1,5 AMPERE
Kontaktwiderstand:	50 Millionen Max.	Terminal:	1U"GOLD plattiert.
BetriebstemperaturWiderstand:	-40°C+80°C.	Nennspannung:	125 VAC RMS.
Isolationsresistenz:	Bei der Prüfung der Leistungsfähigkeit ist die Leistungsfähigkeit der Fahrzeuge zu überprüfen.	Dielektrische Stärke:	1000 VAC RMS 50 Hz, 1 Minute.
Hülse:	C2680R-H,T=0,20MM,20~50U" MIN	Typ:	Kristallkopf
Hervorheben:	shielded RJ45 connector head , 8P8C male RJ45 head , copper shell RJ45 connector

Produkt-Beschreibung

RJ45 8P8C Crystal Headband Shielded Copper Shell RJ45 Male Head DGKYDRJ451188F1A1Y1W041

Our strengths:

Interface type: crystal head application: 10 / 100 / 1000BASE-T Ethernet
Type: RJ45 built in magnetics
Working frequency: high frequency characteristic: filtering, anti-interference
Working temperature: -40℃ - 85℃
Storage temperature: -40℃ - 85℃
Lead free soldering: wave soldering height up to 265℃

Parameters

Part Number	DGKYDRJ451188F1A1Y1W041	Brand	DGKYD/OEM/ODM
Place of Origin	Guangdong of China	Certification	CE /UL/FCC/Reach/RoHS
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch
Filter	Without internal filter	LED Option	Without LED
LED Color	1	Panel Stops	Without Panel Stops
Shielded	1	Applies To	Printed Circuit Board
Performance Speed	1	Grounding Options	Panel Ground and PCB Ground
Port Configuration	1 port	Number of Positions	8
Jack Configuration	1 x 1	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating Material	Gold 1u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	PC Polyester	Housing Color	White
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-2

Q: Are you trading company or manufacture?

A: We are manufacture. Welcome to our factory.

Q: What about your lead time?

A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.

Q: Can you provide samples? Are they free?

A: Yes. Usually we can provide 2-3 samples of standard products free for testing.

Q: Can I put my own logo on it?

A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.

Größe und Tag:

RJ45 8P8C Crystal Headband Shielded Copper Shell RJ45 Male Head DGKYDRJ451188F1A1Y1W041

shielded RJ45 connector head

8P8C male RJ45 head

copper shell RJ45 connector
