DGKYD RJ45 Connector 6U Gold Plated Gigabit Single Port with Transformer

Min Bestellmenge :	1	Preis :	$1.20-2

Herkunftsort:	Guangdong, China	Modellnummer:	DGKYD411Q117DF5A1DP

Detailinformationen
Typ:	RJ45	Geschlecht:	Weiblich
LED -Farbe:	Grünorange & Gelb	Überzug:	Goldbeschichtung 6U
Wohnmaterial:	PBT-Polyester	Transformator:	Mit Transformator & Poe
Klinken-Art:	Standards	Metallschütze:	Mit Metallschird
Geschwindigkeit:	Gigabit	Leistungs-Geschwindigkeit:	1000 Basist
Portkonfiguration:	einzel	Anzahl der Positionen:	12
Jack Configuration:	1 x 1	Anschlüsse pro Hafen:	8
Schildmaterial:	Kupferlegierung vorplattiert mit Nickel
Hervorheben:	RJ45 connector gold plated , Gigabit RJ45 single port , RJ45 connector with transformer

Produkt-Beschreibung

High-Frequency Gold-Plated 6U Network Port Ethernet RJ45 Connector Single-Port 1x1 Gigabit Integrated Transformer LED Spring Tab

Product Specifications

Part Number	DGKYD411Q117DF5A1DP
Brand	DGKYD/OEM/ODM
Place of Origin	Guangdong of China
Certification	ISO16949/CE/UL/FCC/Reach/RoHS
Product Type	Connector-Modular
Connector Style	Jack
Jack Type	RJ45
Connector Type	Modular Jack
Latch Style	Standard
Latch	Up
Filter	With Filter & PoE
LED Option	With LED
LED Color	Green Orange & Yellow
Panel Stops	With Panel Stops
Shielded	Yes
Applies To	Printed Circuit Board
Performance Speed	1000 BASE-T
Grounding Options	Panel Ground and PCB Ground
Port Configuration	Single
Number of Positions	12
Jack Configuration	1 x 1
Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel
PCB Mounting Orientation	Side Entry (Right Angle)

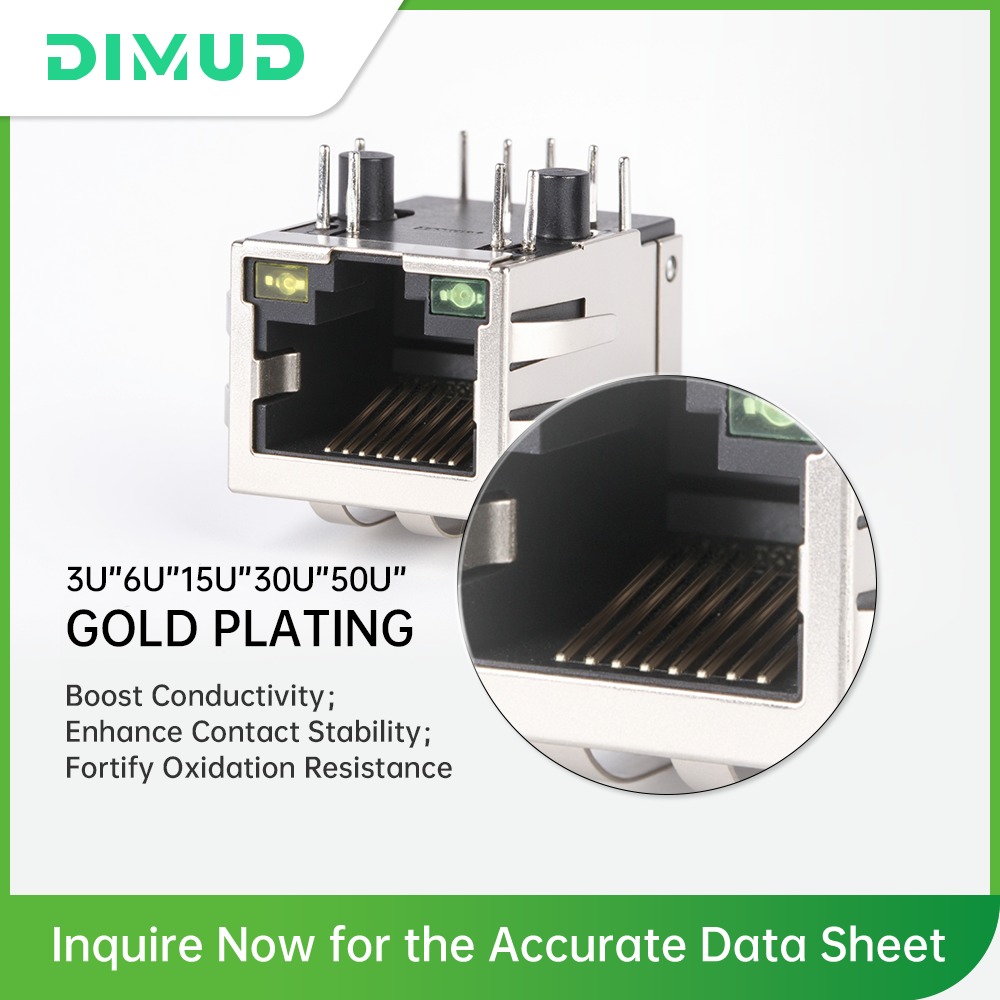

Contact Mating Area Plating Material	Gold 6u/15u/30u/50u
Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel
PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit
Board Lock	With/Without Board Lock
Housing Material	PBT Polyester
Housing Color	Black
Housing Material Temperature	Standard
UL Flammability Rating	UL 94V-0

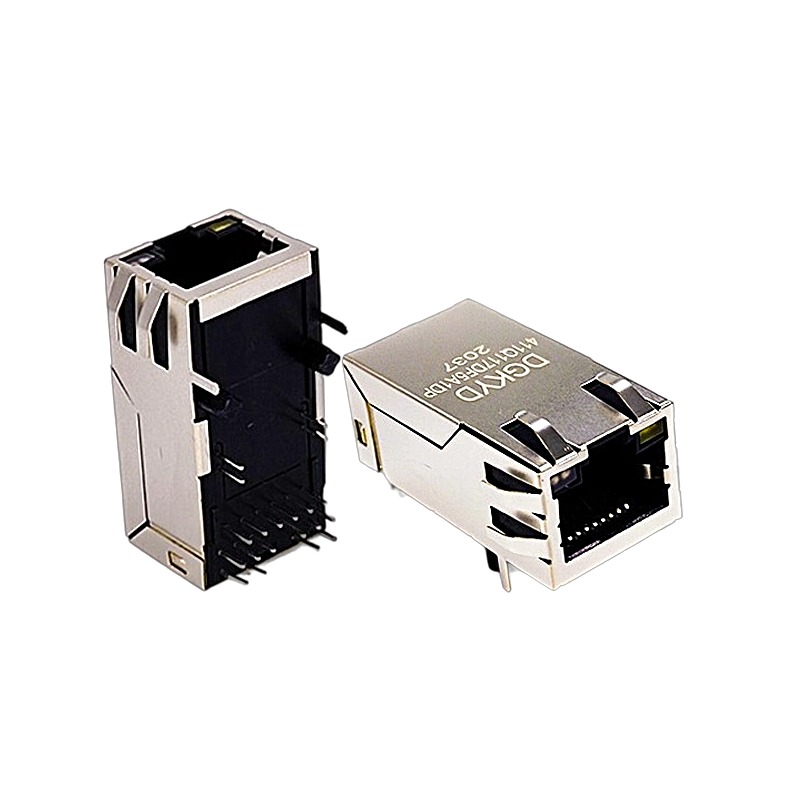

Product Images

Größe und Tag:

RJ45 connector gold plated
