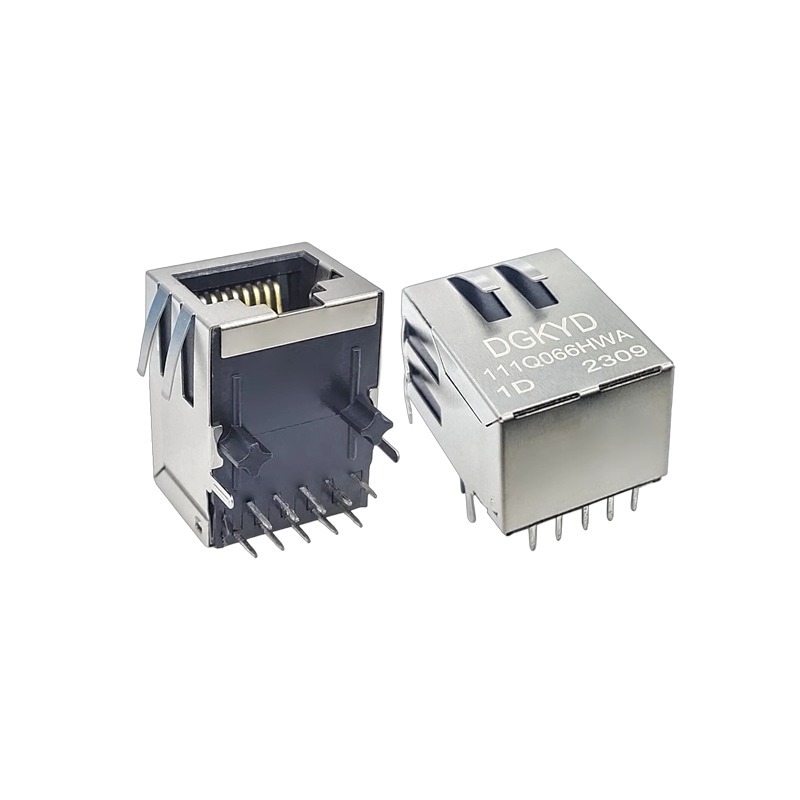

1-Port RJ45 Connector 10P PBT with Filter and Shielding

Min Bestellmenge :	1	Preis :	$0.60-1.80

Herkunftsort:	Guangdong, China	Markenname:	DGKYD
Modellnummer:	DGKYD111Q066HWA1D

Detailinformationen
Anschlusstyp:	RJ45	Abschirmung:	Ja
Anzahl der Ports:	1	Kontakt beenden:	6u/15u/30u
Orientierung:	Seite	Anzahl der Zeilen:	1
Stifte:	10 Pfennig	Kontaktmaterial:	Phosphorbronze
Wohnmaterial:	PBT-Polyester	Filter:	Mit Filter
Leistungs-Geschwindigkeit:	10/100/1000 Basist	Portkonfiguration:	einzel
Anschlüsse pro Hafen:	8	PWB-Montage-Orientierung:	Seiteneintrag (Rechtswinkel)
Kontaktieren Sie die Paarungsbeschichtung:	Gold 6 u/15 u/30 u/50 u
Hervorheben:	1-port RJ45 connector with filter , shielded RJ45 single port connector , PBT RJ45 connector with shielding

Produkt-Beschreibung

High-Speed 1x1 Single-Port Gigabit Network Connector

10PIN PBT Material Integrated Filtering Shielding Non-Lit for RJ45

Product Specifications

Technical Details

Port Configuration	Single	Number of Positions	10
Jack Configuration	1 x 1	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)

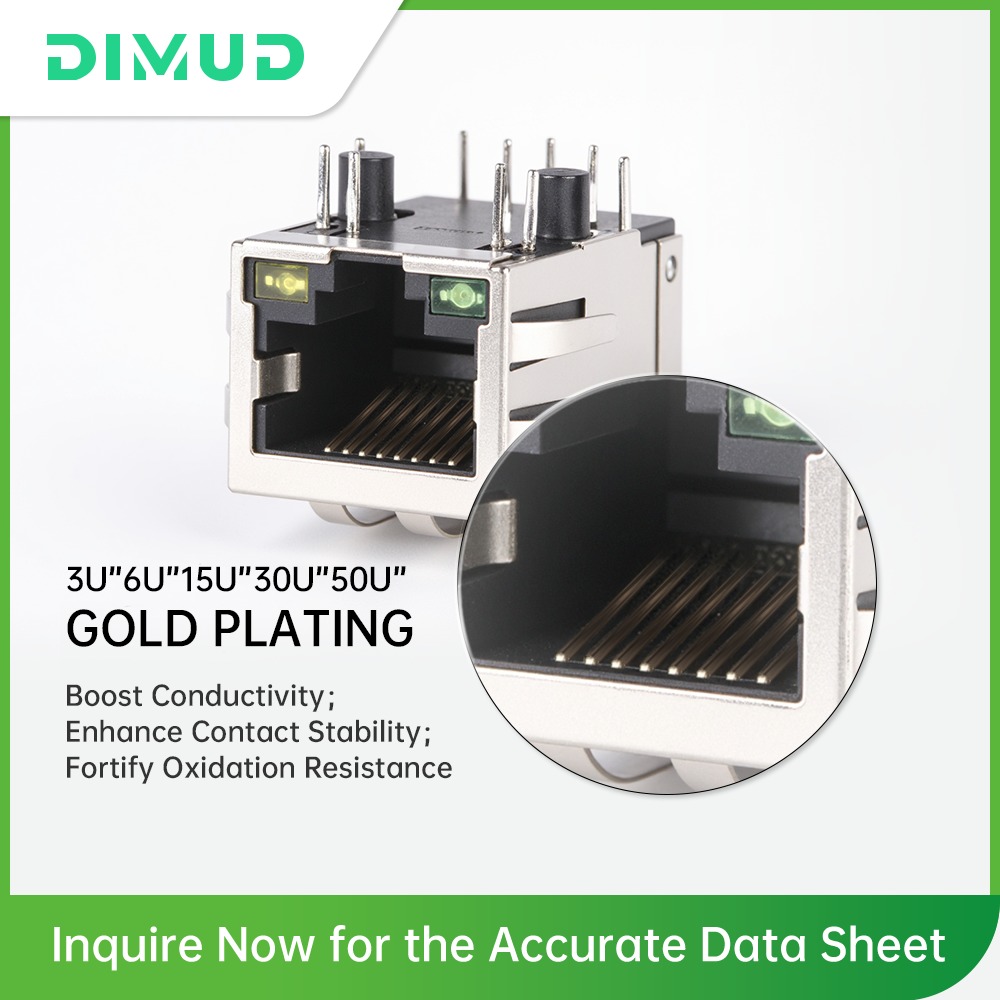

Contact Mating Area Plating Material	Gold 6u/15u/30u/50u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	PBT Polyester	Housing Color	Black
UL Flammability Rating	UL 94V-0

Product Images

Key Features

Größe und Tag:

1-port RJ45 connector with filter
