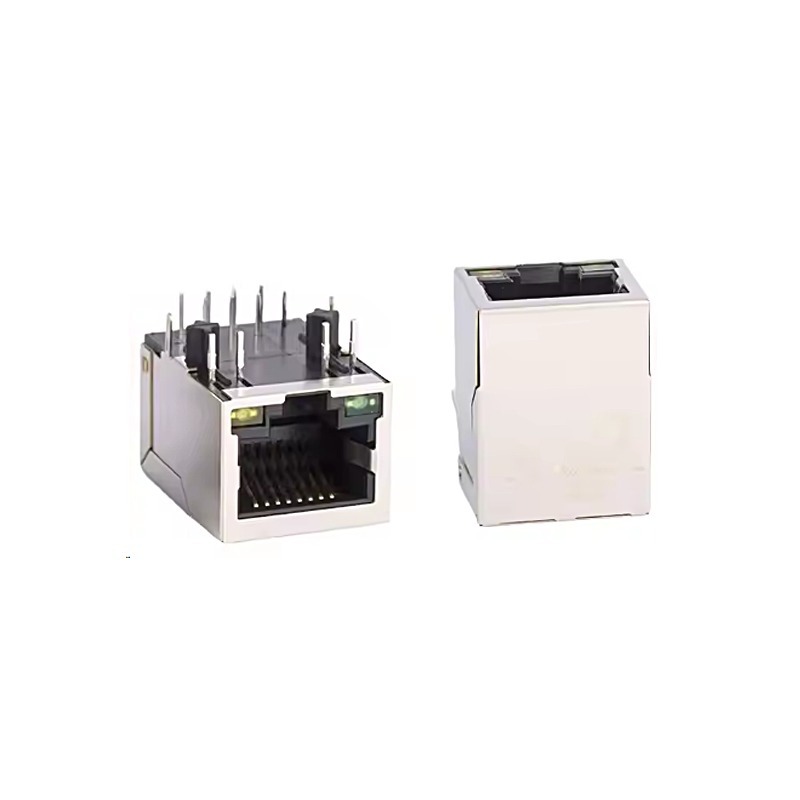

Industrial RJ45 Female Connector 10/100 Base-T with LED 8P8C

Min Bestellmenge :	1	Preis :	$0.51-0.85

Herkunftsort:	Guangdong, China	Markenname:	DGKYD
Modellnummer:	KRJ-406CNL

Detailinformationen
Typ:	RJ45	Geschlecht:	Weiblich
Wohnmaterial:	PBT-SCHWARZES	Kontaktieren Sie die Beschichtung:	Gold 6u ''
Schildmaterial:	Kupferlegierung vorplattiert mit Nickel	LED-Option:	Mit LEDs
LED -Farbe:	Grün u. gelb	Anzahl der Kontakte:	8
Transformator-Wahl:	Mit Transformator	Leistungs-Geschwindigkeit:	10/100 Basis-T
Portkonfiguration:	einzel	Endmethode:	Durch Lochpresse
Montagestil:	Durch Loch	Montageorientierung:	Seiteneintrag (Rechtswinkel)
UL-Entflammbarkeits-Bewertung:	UL 94V-0
Hervorheben:	Industrial RJ45 female connector with LED , 8P8C RJ45 connector 10/100 Base-T , Single port RJ45 connector with warranty

Produkt-Beschreibung

Industrial Grade 10/100 Base T Ethernet Connectors

Surface Mount CAT5E RJ45 Female Connector with LEDs and Integrated Magnetics PCB

High-performance industrial-grade RJ45 connector designed for 10/100 BASE-T Ethernet applications. Features integrated magnetics, LED indicators, and robust construction for reliable operation in demanding environments.

Product Specifications

Part Number	KRJ-406CNL
Brand	DGKYD/OEM/ODM
Place of Origin	Guangdong of China
Certification	ISO16949/ISO9001/ISO14001/CE/UL/FCC/Reach/RoHS
Product Type	Connector-Modular
Connector Style	Jack
Jack Type	RJ45
Connector Type	Modular Jack
Latch Style	Standard
Latch	Down
Filter	With Filter
LED Option	With LED
LED Color	Green & Yellow
Shielded	Yes
Performance Speed	10/100 BASE-T
Port Configuration	Single
Number of Positions	8
Shield Material	Copper Alloy preplated with Nickel

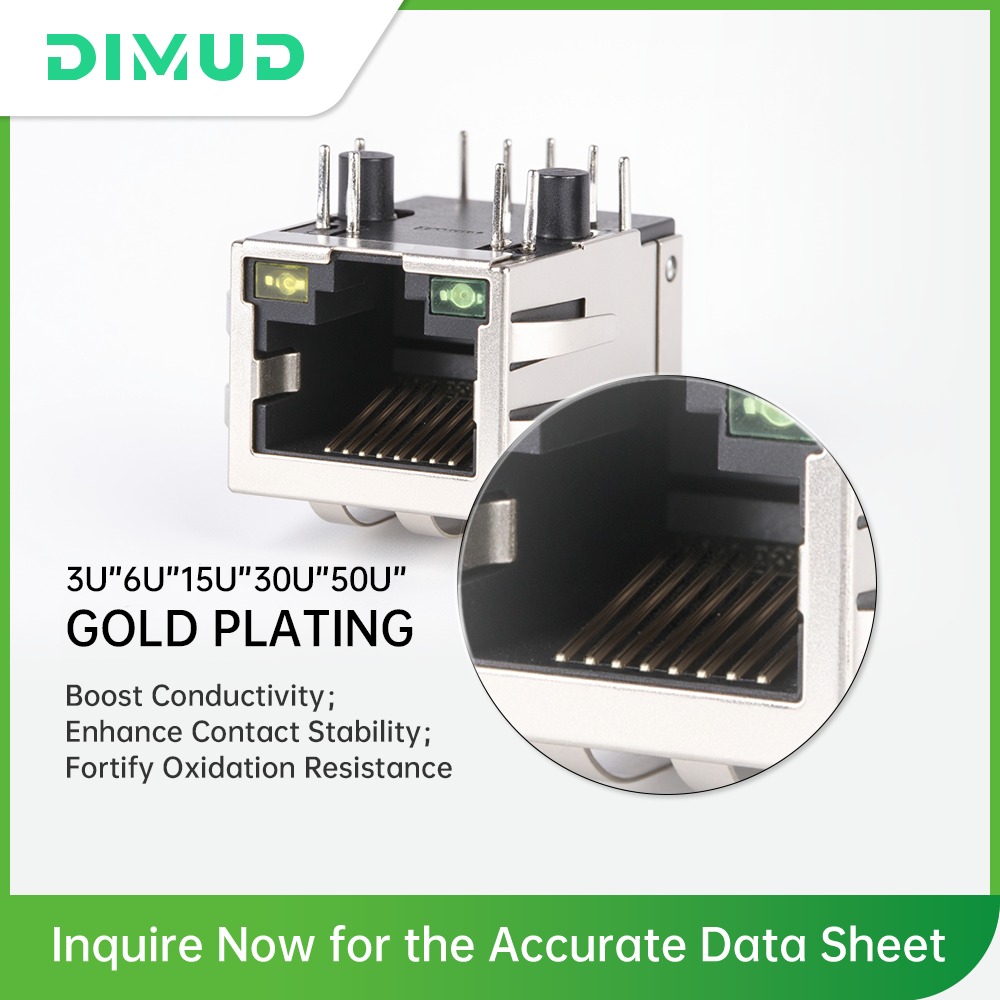

Contact Mating Area Plating Material	Gold 6u/15u/30u/50u for optional
Contact Base Material	Phosphor Bronze
Housing Material	PBT Polyester
UL Flammability Rating	UL 94V-0
