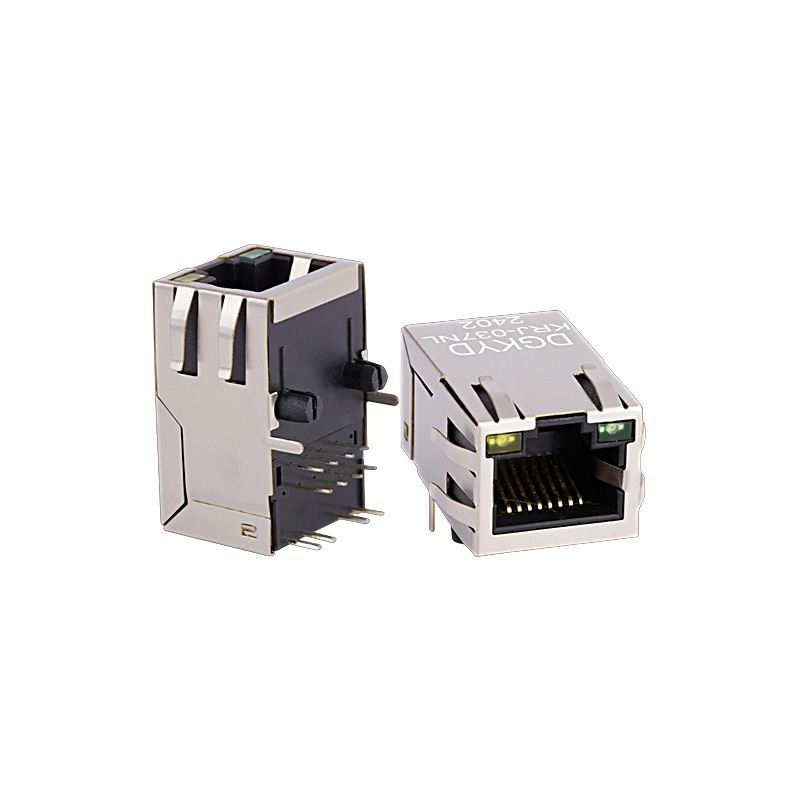

RJ45 Single Port Connector 100Mbps with LED Yellow Green for PCB

Min Bestellmenge :	1	Preis :	$0.54-0.70

Herkunftsort:	Guangdong, China	Modellnummer:	KRJ-037NL

Detailinformationen
Typ:	RJ45	Verpackung:	TAUCHEN
Geschlecht:	Weiblich	Wohnmaterial:	PBT-SCHWARZES
LED-Option:	Yellow&Green	Verriegeln:	Hoch
Anzahl der Ports:	1	Anzahl der Kontakte:	8
PWB-Berg-Winkel:	Seiteneintritt	Berg-Art:	Durch Loch
Leistungs-Geschwindigkeit:	10/100/1000/10g Basist	Portkonfiguration:	einzel
Jack Configuration:	1 x 1	Anschlüsse pro Hafen:	8
Schildmaterial:	Kupferlegierung vorplattiert mit Nickel
Hervorheben:	RJ45 single port connector 100Mbps , RJ45 PCB connector with LED , yellow green LED RJ45 connector

Produkt-Beschreibung

Factory Direct Supply: Single Port, 100Mbps, LED - Equipped & Shielded RJ45 Transformer for Computer Connectors

Product Specifications

Part Number	KRJ-037NL	Brand	DGKYD/OEM/ODM
Place of Origin	Guangdong of China	Certification	ISO16949/ISO9001/ISO14001/CE/UL/FCC/Reach/RoHS
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	Up
Filter	With Filter	LED Option	With LED
LED Color	Yellow/Green	Panel Stops	With/Without Panel Stops
Shielded	Yes	Applies To	Printed Circuit Board
Performance Speed	10/100/1000/10G BASE-T	Grounding Options	Panel Ground and PCB Ground
Port Configuration	Single	Number of Positions	8
Jack Configuration	1 x 1	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)

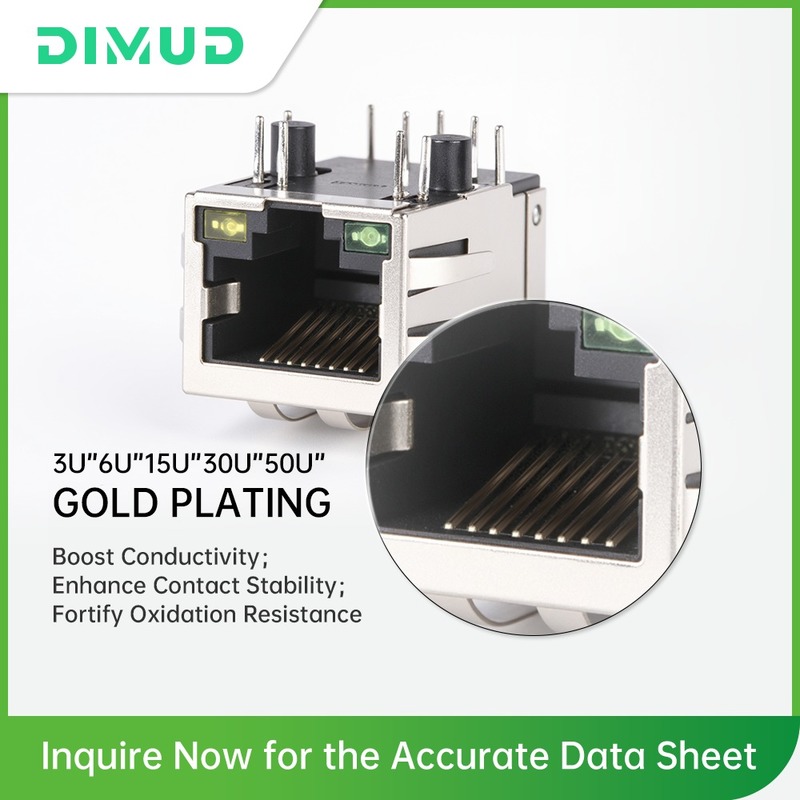

Contact Mating Area Plating Material	Gold 6u/15u/30u/50u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	PBT Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0
