Single Countersunk 4.2 SMT RJ45 Connector Jack With Shield DGKYDCB421188AB1W6SB

Min Bestellmenge :	Verhandlungsfähig	Preis :	Verhandlungsfähig
Verpackung Informationen :	Tray in Karton	Lieferzeit :	7-14 Tage
Zahlungsbedingungen :	Akkreditiv, Dokumenteninkasso, Dokument gegen Zahlung, Überweisung, Western Union, MoneyGram	Versorgungsmaterial-Fähigkeit :	60000 Stück pro Tag

Herkunftsort:	DongGuan aus China	Markenname:	DGKYD
Zertifizierung:	RoHS/CE/FCC/CE/ISO9001/ISO14001	Modellnummer:	Die Angabe der Angabe der Angabe der Angabe des Anschlusses ist in der Anmeldung anzugeben.

Detailinformationen
Produktbezeichnung:	RJ45 Verbindungsstück Jack With Shield	Typ des Steckers:	- Was ist los?
Anwendung:	PC, Router, USB-Hub Netzwerk RJ45 usw.	Geschlecht:	Weiblich
Transformator:	RJ45 ohne Transformator	HÖHEN-PROFIL:	Extrazurückhaltung
Hervorheben:	Countersunk 4.2 SMT RJ45 Connector , RJ45 Connector Jack With Shield , Single RJ45 Connector Jack

Produkt-Beschreibung

RJ45 connector single countersunk 4.2 SMD With shield With LED 8p8c

Paramters

ATTRIBUTE	ATTRIBUTE VALUE
TEMPERATURE	-40 to +85℃
GROUNDING OPTIONS	Panel Ground and PCB Ground
SHIELD PLATING MATERIAL	NICKEL
SHIELD EMI TABS	YES
SHIELD	METAL SHIELD
ROHS COMPLIANT	YES
PANEL STOP	NONE
PCB MOUNT ANGLE	SIDE ENTRY
PACKAGE	SMT
CONNECTOR & CONTACT TERMINAATES TO	Printed Circuit Board
NUMBER OF PORTS	1X1
NUMBER OF CONTACTS	8
LED OPTION	L-Yellow / R-Green
LATCH ORIENTATION	LATCH DOWN
HOUSING MATERIAL	LCP UL94V-0
CONTACT MATING AREA PLATING	GOLD FLASH PLATING
CONNECTOR TYPE	RJ45
CONNECTOR MATERIAL COLOR	BLACK

Drawing

Single Countersunk 4.2 SMT RJ45 Connector Jack With Shield DGKYDCB421188AB1W6SB 0

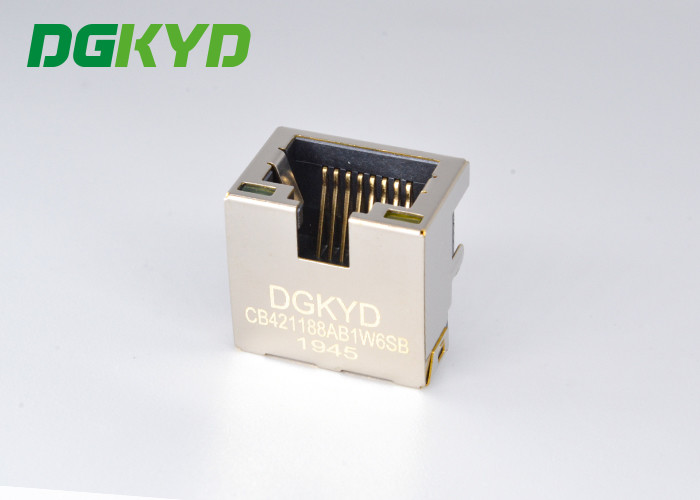

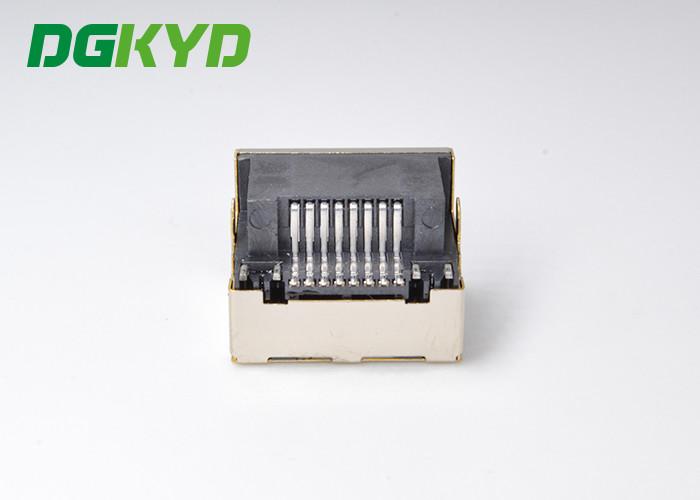

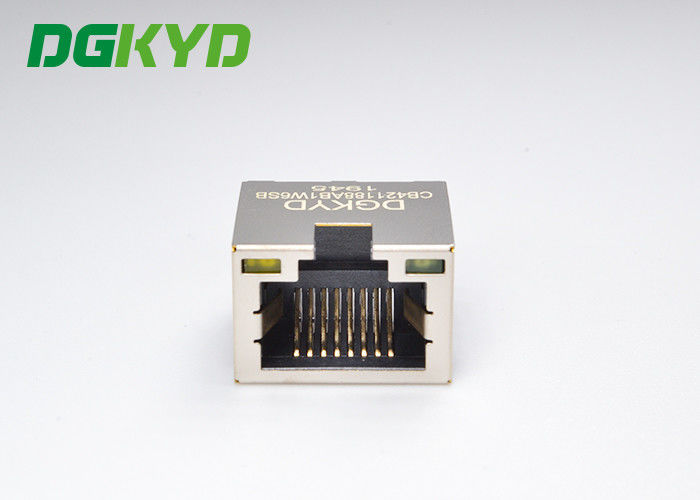

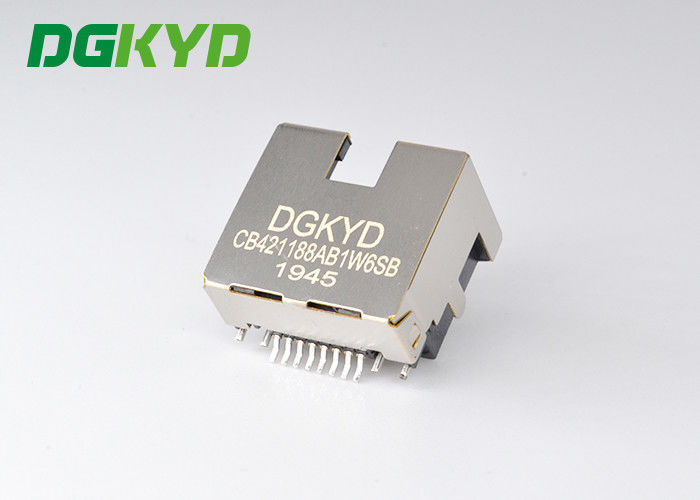

Pictures

Single Countersunk 4.2 SMT RJ45 Connector Jack With Shield DGKYDCB421188AB1W6SB 1

Our Service

World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
100% Guarantee Qualtiy
•Manufactured Under Strict Controls.
•100% Tested (Not Just Batch Tested)
•DGKYD Is OEM Of FOXCONN For 6 Years
•Successful Customer: PANASONIC/FOXCONN/HUAWEI/ZTE…
Competitive Price And Service
•More Competitive Price Than Pulse Tyco Halo And Amphenol
•Delivery Time:1-2 Weeks After Orders
•Free Samples Are Available
•Provide New Design For Customer Requirements
DGKYD Corporate Policy
•The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction
Through Continuous Improvements In Quality, Delivery And Service
• DGKYD Is Committed To And Expects Quality Performance From Every Employee
• The Company Standard Is Defect-Free Products And Services
