KTM30699SR 100BASE-TX Netzwerktransformator Ethernet-Transformator Isolationstransformator 6PIN
ContPerson : Nicole Zhuo
Telefonnummer : +86 18925835585
WhatsApp : +8613538542087
| Min Bestellmenge : | Verhandlungen | Preis : | Please contact us to get the latest price. |
|---|---|---|---|
| Verpackung Informationen : | Behälter im Karton | Lieferzeit : | 10 Tage |
| Zahlungsbedingungen : | T/T, D/P, D/A, L/C, Western Union, MoneyGram | Versorgungsmaterial-Fähigkeit : | 100.000 Stück/Tag |
| Herkunftsort: | Dongguan von China | Markenname: | DGKYD |
|---|---|---|---|
| Zertifizierung: | RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 | Modellnummer: | KHX1626SR |
|
Detailinformationen |
|||
| Art der Ware: | Ethernet-Transformator | Verkapselungsmethode: | Rollengurtverpackung |
|---|---|---|---|
| PWB-Berg-Art: | SMD | Form: | Rechteck |
| Pin-Quantität: | 16 STIFTE | LAN Transformer Speed: | 100 BASE-TX |
| Betriebstemperatur: | -40~+85°C optional | Kern-Quantität: | 2 Sätze |
| Hervorheben: | SMD Ethernet-Transformator,Ethernet-Isolation Filter Netzwerktransformator,KHX1626SR Netzwerktransformator |
||
Produkt-Beschreibung

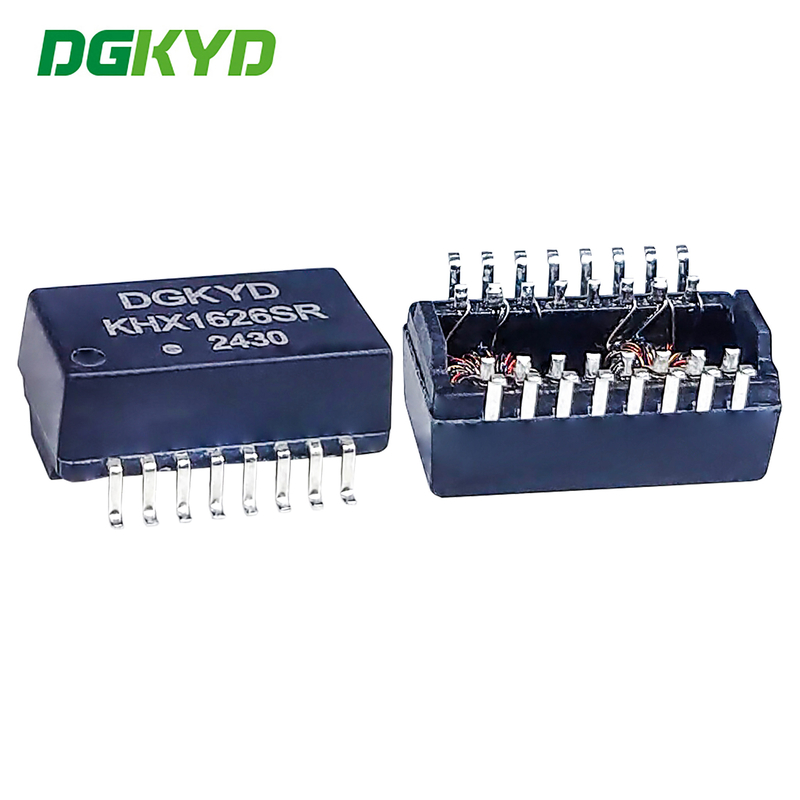

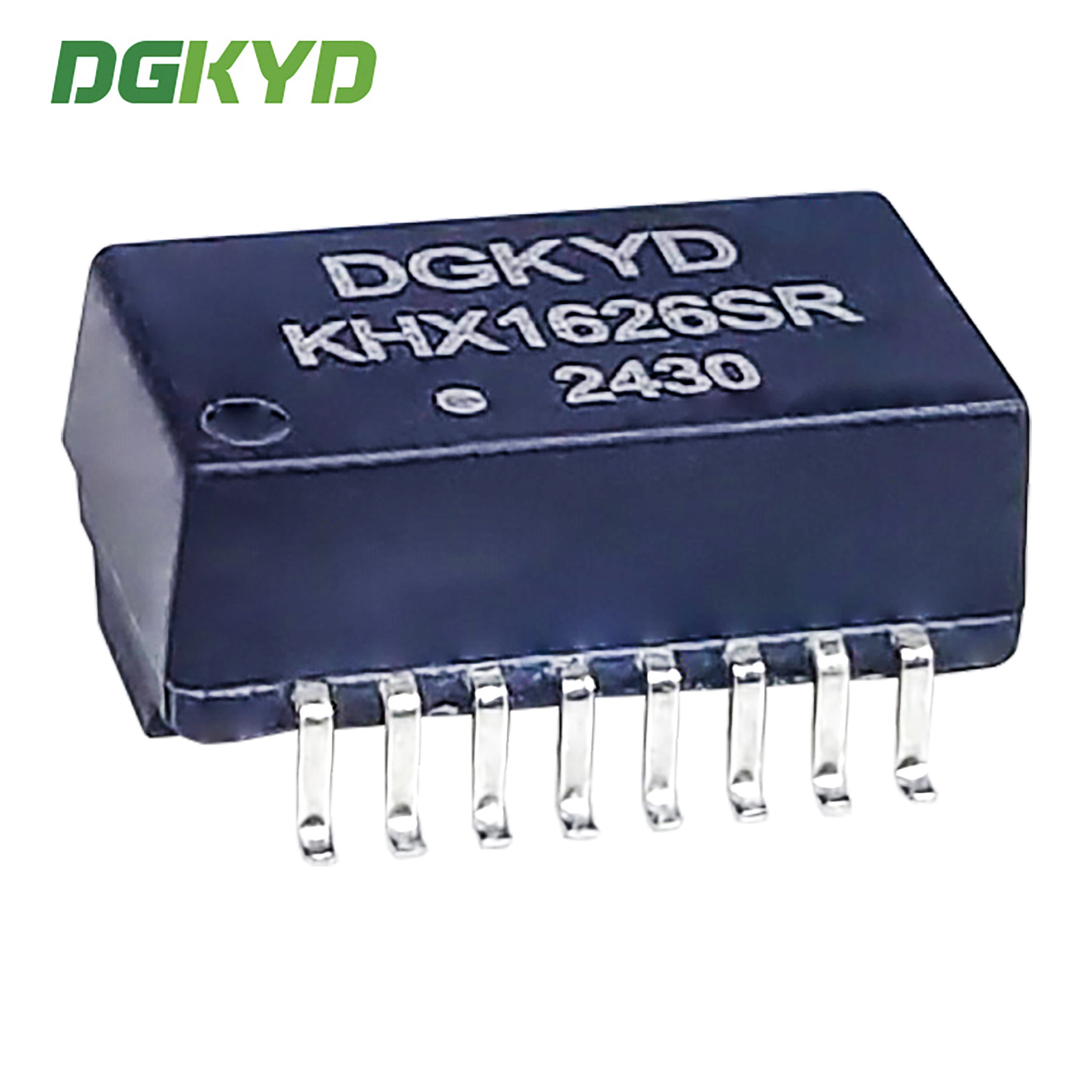

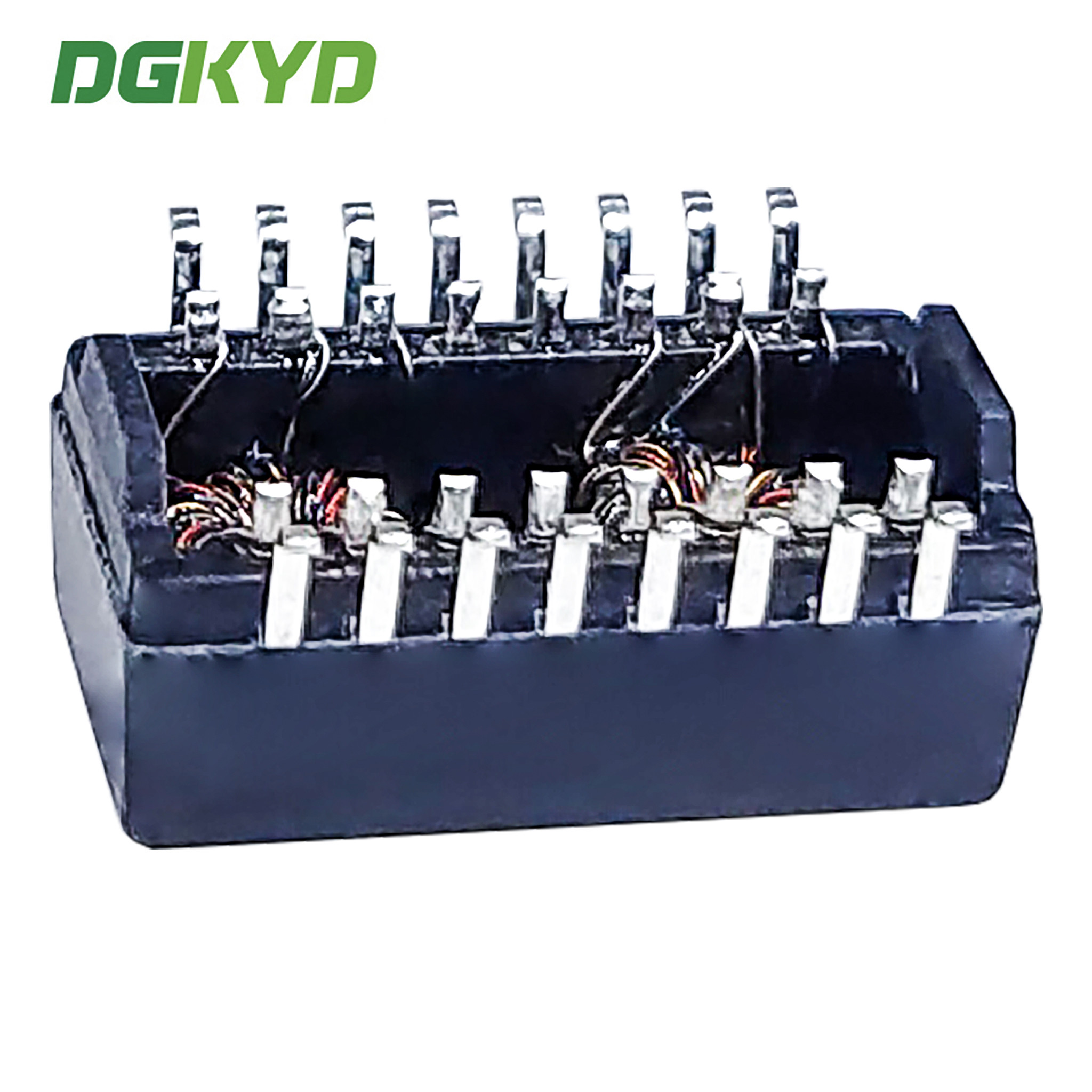

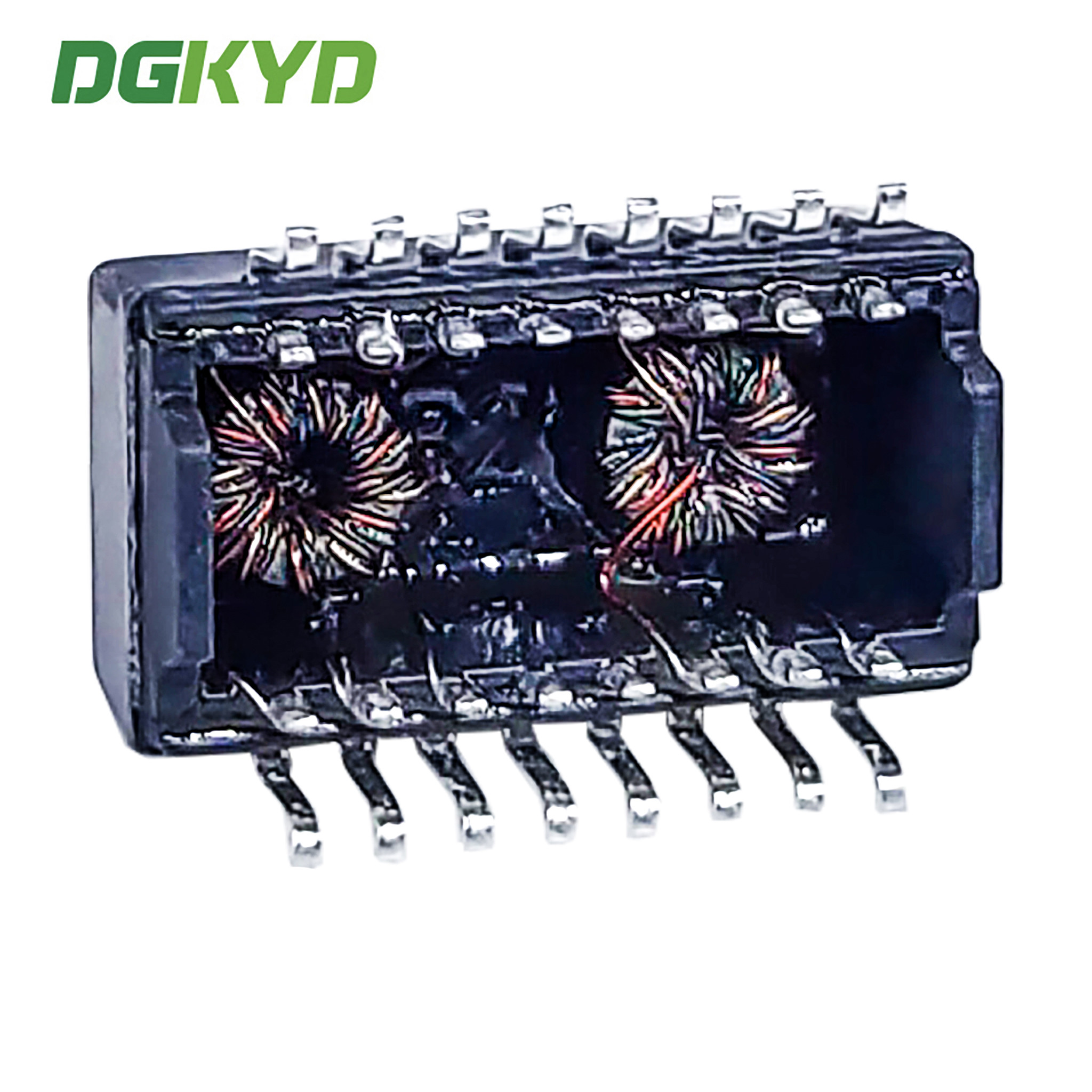

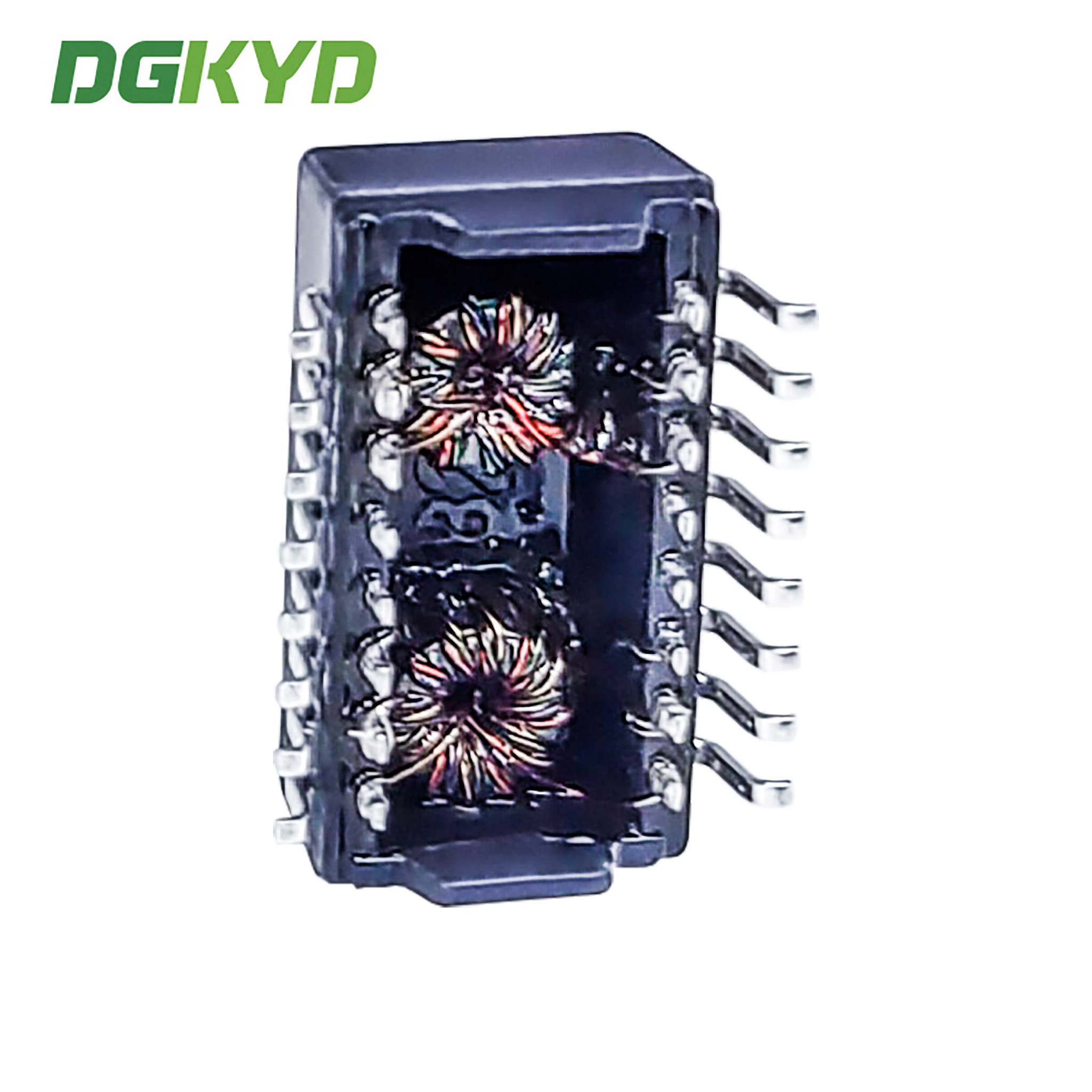

KHX1626SR100M Base-T Network Transformer Ethernet Isolation Filter Ethernet Transformer SMD
Product Specification Document
Parameters
| Part Number | KHX1626SR | Brand | DGKYD/OEM/ODM |
| Place of Origin | Guangdong of China | Certification | ISO9001/ISO14001/CE /UL/FCC/Reach/RoHS |
| Product Type | Transformer Modular | Transformer Style | Discrete Transformer |
| Core Quantity | 2 pairs | PIN quantity | 16 |
| Lan Transformer Speed | 10/100 BASE-TX | Mounting Type | SMD |
Our strengths:
Interface type: crystal head application: 10 / 100 / 1000BASE-T Ethernet
Type: RJ45 built in magnetics
Working frequency: high frequency characteristic: filtering, anti-interference
Working temperature: - 40 ℃ - 85 ℃
Storage temperature: - 40 ℃ - 85 ℃
Lead free soldering: wave soldering height up to 265 ℃
RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply
1. Business mode: Manufacturer
2. Delivery time: on time delivery, around two weeks.
3. Specs for choices: LED indicator light(green, yellow, red, orange, blue, bi-color LED)>
Shield with EMI fingers or not
coil ratio of magnetic core
magnetics circuit diversification optional
contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)
plastic housing material (PBT,PA46,PA9T, LCP)
4. The electrical properties of the products meet the industry standards, the appearance and mechanical properties meet the appearance dimensions, the mechanical manufacturing industry standards, and the environmental protection standards. Your satisfaction is the purpose of our service!
Performance parameters:
1. Applied to Ethernet, coil ratio: 1CT: 1CT
2. Meet IEEE 802.3 & ANSI X 3.263 standard
3. Open circuit inductance (OCL): 350uH (MIN) @ 100kHz, 0.1VRMS with 8Ma DC Bias
4. Wave soldering process of 265 ℃ Max meeting the requirements of EU ROHS standard
5. Withstand voltage: 2250VDC 1mA max, 60s
6.Impedance: 100 ohms
7. RJ45 interface meets FCC 68.5 standard
8. DC resistance: 1.5 Ω
